SimBiology.RuntimeOptions

Options for logged SimBiology quantity components

expand all in page

Description

A SimBiology.RuntimeOptions object contains information on which species, parameters, or compartments are logged during simulation.

Creation

This object is a property of a Configset object. Use dot notation or get or set to access and modify this object from a configset object.

Properties

expand all

Logged SimBiology quantity components, specified a SimBiology.Species, SimBiology.Parameter, SimBiology.Compartment object, or vector of objects. Alternatively, you can specify the object name or names as character vector, string, string vector, cell array of character vectors.

This property is read-only.

Object type, specified as 'runtimeoptions'. When you create a SimBiology object, the value of Type is automatically defined.

Data Types: char

Examples

collapse all

Open Live Script

Load the Lotka-Volterra model.

sbioloadproject lotka;

Get the configset object of the lotka model m1.

configset = getconfigset(m1);

Display the list of species whose data are logged by default during the simulation.

configset.RuntimeOptions.StatesToLog
ans =
   SimBiology Species Array

   Index:    Compartment:    Name:    Value:    Units:
   1         unnamed         x        1
   2         unnamed         y1       900
   3         unnamed         y2       900
   4         unnamed         z        0

Suppose you want to log just species y1 and y2 data. You can specify their names as a cell array of strings and set it to StatesToLog property.

configset.RuntimeOptions.StatesToLog = {'y1','y2'};

Confirm the setting.

configset.RuntimeOptions.StatesToLog
ans =
   SimBiology Species Array

   Index:    Compartment:    Name:    Value:    Units:
   1         unnamed         y1       900
   2         unnamed         y2       900

Alternatively, you can specify an array of species objects (instead of strings) to StatesToLog property.

y1 = m1.Species(2);
y2 = m1.Species(3);
configset.RuntimeOptions.StatesToLog = [y1, y2];

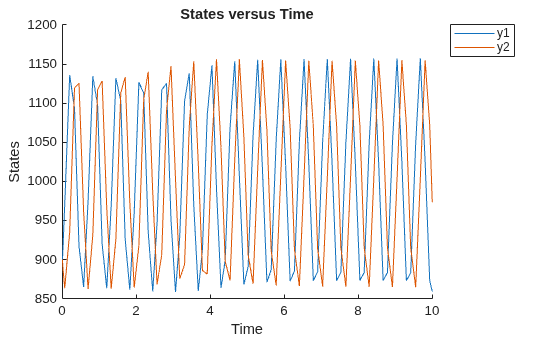

Simulate and plot the results. Notice that simulation results of only y1 and y2 are plotted.

sbioplot(sbiosimulate(m1));

To reset to the default list, set StatesToLog to a string 'all', which means all species objects, all nonconstant compartment objects and all nonconstant parameter objects are logged by default. A nonconstant compartment or parameter means that its Constant property is set to false.

configset.RuntimeOptions.StatesToLog = 'all';

Simulate again. Notice all the species data are plotted.

sbioplot(sbiosimulate(m1));

Do not specify 'all' as a cell string such as {'all'}. If so, SimBiology interprets it as a species named all.

Version History

Introduced in R2006b
