show

Class: Aero.Animation
Namespace: Aero

Show animation object figure

Syntax

show(h)


Description

show(h) creates the figure graphics object for the animation object h. Use the hide function to close the figure.

Input Arguments

h — Aerospace animation object

Aero.Animation object

Aerospace animation object, specified as an Aero.Animation object.

Examples

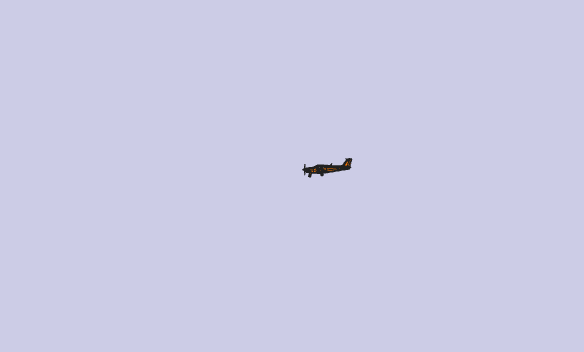

Show Aero.Animation Object

h = Aero.Animation;
idx1 = createBody(h,'pa24-250_orange.ac','Ac3d');
show(h);

Version History

Introduced in R2007a
