Compensate I/Q Imbalance

This example shows how to use the I/Q Imbalance Compensator block to remove the effects of an amplitude and phase imbalance on a modulated signal.

Explore Model

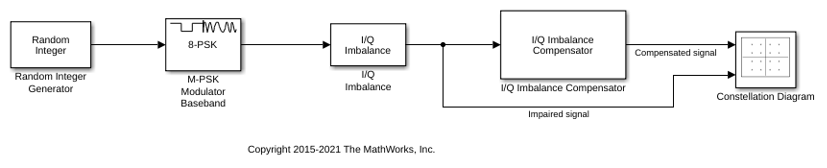

The model adds I/Q amplitude and phase imbalance to an 8-PSK signal, and then applies I/Q imbalance compensation to correct the impairments. Impairment addition and compensation performed on the signal by using the I/Q Imbalance and I/Q Imbalance to Compensator Coefficient blocks, respectively. The I/Q Imbalance block sets the amplitude imbalance to 5 dB, the phase imbalance to 7 degrees, and DC offset to 0.

The Constellation Diagram block displays the 8-PSK reference constellation, and the signal constellation before and after impairment correction.

Run Model and Display Measurements

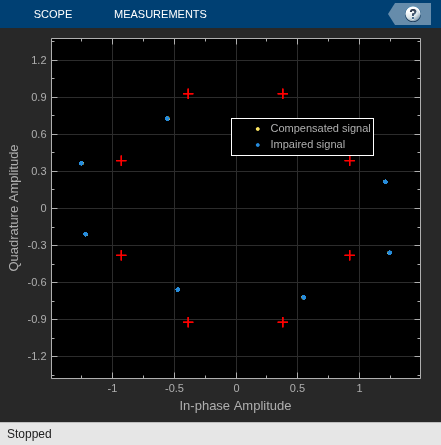

Run the model for 20 seconds, which is not long enough for the impairment compensation to converge. The reference constellation is plotted with red plus signs (+). The impaired signal plots the effects of the amplitude and phase imbalance on the 8-PSK signal. The compensated signal shows that the signal is not well aligned with the reference constellation.

The compensation algorithm is adaptive and requires time to accurately estimate the I/Q imbalance. Increase the simulation time to 100 seconds and rerun the model. You can see that the constellation is now well aligned with the reference constellation.

Further Exploration

You can try changing other simulation parameters, such the step size in the I/Q Imbalance Compensator block, the amplitude and phase imbalance in the I/Q Imbalance block, the modulation type. Then, observe the effects on the Compensated Signal constellation diagram.
