# System Dynamics Specifications

This example shows how to constrain the poles of a control system tuned with systune or looptune.

### Background

The systune and looptune commands tune the parameters of fixed-structure control systems subject to a variety of time- and frequency-domain requirements. The TuningGoal package is the repository for such design requirements.

### Closed-Loop Poles

The TuningGoal.Poles goal constrains the location of the closed-loop poles. You can enforce some minimum decay rate

$Re\left(s\right)<-\alpha ,$

impose some minimum damping ratio

$Re\left(s\right)<-\zeta |s|,$

or constrain the pole magnitude to

$|s|<{\omega }_{max}.$

For example

MinDecay = 0.5;
MinDamping = 0.7;
MaxFrequency = 10;
R = TuningGoal.Poles(MinDecay,MinDamping,MaxFrequency);

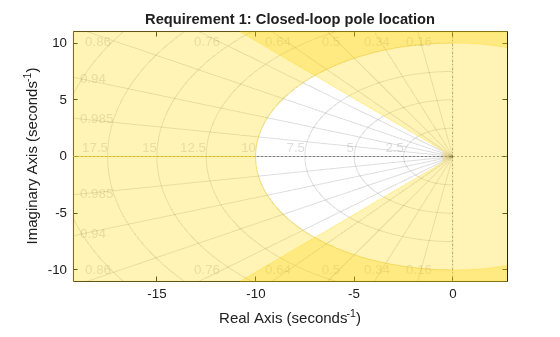

constrains the closed-loop poles to lie in the white region below.

viewGoal(R)

Increasing the MinDecay value results in faster transients. Increasing the MinDamping value results in better damped transients. Decreasing the MaxFrequency value prevents fast dynamics.

### Controller Poles

The TuningGoal.ControllerPoles goal constrains the pole locations for tuned elements such as filters and compensators. The tuning algorithm may produce unstable compensators for unstable plants. To prevent this, use the TuningGoal.ControllerPoles goal to keep the compensator poles in the left-half plane. For example, if your compensator is parameterized as a second-order transfer function,

C = tunableTF('C',1,2);

you can force it to have stable dynamics by adding the requirement

MinDecay = 0;
R = TuningGoal.ControllerPoles('C',MinDecay);
