Compute Difference of a Matrix
Open and run the ex_difference.slx
model.

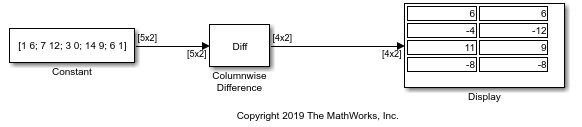

The first part of the model shows the output of the Difference block when the Running difference parameter is set to No
and the Difference along parameter is set to Columns
.

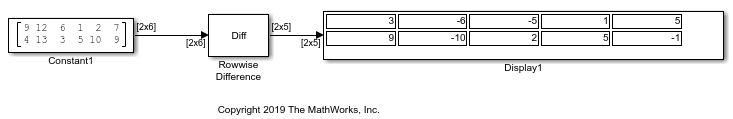

The second part of model shows the output of the block in a non-running mode when Difference along is set to Rows
.
The last part of the model shows the output when the block computes the running difference.
See Also
Blocks
- Difference | Display (Simulink) | Constant (Simulink)
