Create Simple Text Model for Classification

This example shows how to train a simple text classifier on word frequency counts using a bag-of-words model.

You can create a simple classification model which uses word frequency counts as predictors. This example trains a simple classification model to predict the event type of weather reports using text descriptions.

To reproduce the results of this example, set rng to 'default'.

rng('default')

Load and Extract Text Data

Load the example data. The file weatherReports.csv contains weather reports, including a text description and categorical labels for each event.

filename = "weatherReports.csv";
data = readtable(filename,'TextType','string');
head(data)
ans=8×16 table
            Time             event_id          state              event_type         damage_property    damage_crops    begin_lat    begin_lon    end_lat    end_lon                                                                                             event_narrative                                                                                             storm_duration    begin_day    end_day    year       end_timestamp
    ____________________    __________    ________________    ___________________    _______________    ____________    _________    _________    _______    _______    _________________________________________________________________________________________________________________________________________________________________________________________________    ______________    _________    _______    ____    ____________________

    22-Jul-2016 16:10:00    6.4433e+05    "MISSISSIPPI"       "Thunderstorm Wind"       ""                "0.00K"         34.14        -88.63     34.122     -88.626    "Large tree down between Plantersville and Nettleton."                                                                                                                                                  00:05:00          22          22       2016    22-Jul-0016 16:15:00
    15-Jul-2016 17:15:00    6.5182e+05    "SOUTH CAROLINA"    "Heavy Rain"              "2.00K"           "0.00K"         34.94        -81.03      34.94      -81.03    "One to two feet of deep standing water developed on a street on the Winthrop University campus after more than an inch of rain fell in less than an hour. One vehicle was stalled in the water."       00:00:00          15          15       2016    15-Jul-0016 17:15:00
    15-Jul-2016 17:25:00    6.5183e+05    "SOUTH CAROLINA"    "Thunderstorm Wind"       "0.00K"           "0.00K"         35.01        -80.93      35.01      -80.93    "NWS Columbia relayed a report of trees blown down along Tom Hall St."                                                                                                                                  00:00:00          15          15       2016    15-Jul-0016 17:25:00
    16-Jul-2016 12:46:00    6.5183e+05    "NORTH CAROLINA"    "Thunderstorm Wind"       "0.00K"           "0.00K"         35.64        -82.14      35.64      -82.14    "Media reported two trees blown down along I-40 in the Old Fort area."                                                                                                                                  00:00:00          16          16       2016    16-Jul-0016 12:46:00
    15-Jul-2016 14:28:00    6.4332e+05    "MISSOURI"          "Hail"                    ""                ""              36.45        -89.97      36.45      -89.97    ""                                                                                                                                                                                                      00:07:00          15          15       2016    15-Jul-0016 14:35:00
    15-Jul-2016 16:31:00    6.4332e+05    "ARKANSAS"          "Thunderstorm Wind"       ""                "0.00K"         35.85         -90.1     35.838     -90.087    "A few tree limbs greater than 6 inches down on HWY 18 in Roseland."                                                                                                                                    00:09:00          15          15       2016    15-Jul-0016 16:40:00
    15-Jul-2016 16:03:00    6.4343e+05    "TENNESSEE"         "Thunderstorm Wind"       "20.00K"          "0.00K"        35.056       -89.937      35.05     -89.904    "Awning blown off a building on Lamar Avenue. Multiple trees down near the intersection of Winchester and Perkins."                                                                                     00:07:00          15          15       2016    15-Jul-0016 16:10:00
    15-Jul-2016 17:27:00    6.4344e+05    "TENNESSEE"         "Hail"                    ""                ""             35.385        -89.78     35.385      -89.78    "Quarter size hail near Rosemark."                                                                                                                                                                      00:05:00          15          15       2016    15-Jul-0016 17:32:00

Remove rows with empty reports.

idx = strlength(data.event_narrative) == 0;
data(idx,:) = [];

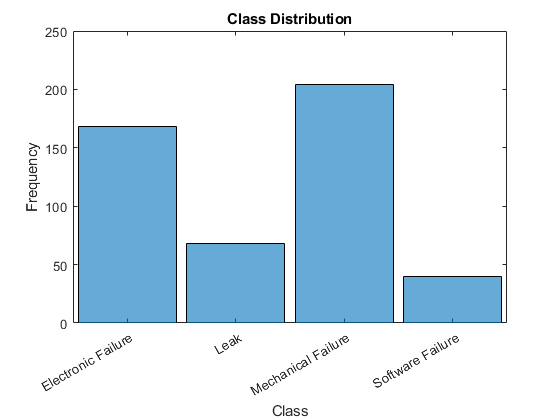

Convert the labels in the event_type column of the table to categorical and view the distribution of the classes in the data using a histogram.

data.event_type = categorical(data.event_type);
figure
h = histogram(data.event_type);
xlabel("Class")
ylabel("Frequency")
title("Class Distribution")

The classes of the data are imbalanced, with several classes containing few observations. To ensure that you can partition the data so that the partitions contain observations for each class, remove any classes which appear fewer than ten times.

Get the frequency counts of the classes and their names from the histogram.

classCounts = h.BinCounts;
classNames = h.Categories;

Find the classes containing fewer than ten observations and remove these infrequent classes from the data.

idxLowCounts = classCounts < 10;
infrequentClasses = classNames(idxLowCounts);
idxInfrequent = ismember(data.event_type,infrequentClasses);
data(idxInfrequent,:) = [];

Partition the data into a training partition and a held-out test set. Specify the holdout percentage to be 10%.

cvp = cvpartition(data.event_type,'Holdout',0.1);
dataTrain = data(cvp.training,:);
dataTest = data(cvp.test,:);

Extract the text data and labels from the tables.

textDataTrain = dataTrain.event_narrative;
textDataTest = dataTest.event_narrative;
YTrain = dataTrain.event_type;
YTest = dataTest.event_type;

Prepare Text Data for Analysis

Create a function which tokenizes and preprocesses the text data so it can be used for analysis. The function preprocessWeatherNarratives, performs the following steps in order:

  1. Tokenize the text using tokenizedDocument.

  2. Lemmatize the words using normalizeWords.

  3. Erase punctuation using erasePunctuation.

  4. Remove a list of stop words (such as "and", "of", and "the") using removeStopWords.

  5. Remove words with 2 or fewer characters using removeShortWords.

  6. Remove words with 15 or more characters using removeLongWords.

Use the example preprocessing function preprocessWeatherNarratives to prepare the text data.

documents = preprocessWeatherNarratives(textDataTrain);
documents(1:5)
ans =
  5×1 tokenizedDocument:

     5 tokens: large tree down plantersville nettleton
    18 tokens: two foot deep standing water develop street winthrop university campus inch rain fall less hour vehicle stall water
     9 tokens: nws columbia relay report tree blow down tom hall
    10 tokens: medium report two tree blow down i40 old fort area
     8 tokens: few tree limb great inch down hwy roseland

Create a bag-of-words model from the tokenized documents.

bag = bagOfWords(documents)
bag =
  bagOfWords with properties:

          Counts: [25316×17524 double]
      Vocabulary: [1×17524 string]
        NumWords: 17524
    NumDocuments: 25316

Remove words from the bag-of-words model that do not appear more than two times in total. Remove any documents containing no words from the bag-of-words model, and remove the corresponding entries in labels.

bag = removeInfrequentWords(bag,2);
[bag,idx] = removeEmptyDocuments(bag);
YTrain(idx) = [];
bag
bag =
  bagOfWords with properties:

          Counts: [25315×6534 double]
      Vocabulary: [1×6534 string]
        NumWords: 6534
    NumDocuments: 25315

Train Supervised Classifier

Train a supervised classification model using the word frequency counts from the bag-of-words model and the labels.

Train a multiclass linear classification model using fitcecoc. Specify the Counts property of the bag-of-words model to be the predictors, and the event type labels to be the response. Specify the learners to be linear. These learners support sparse data input.

XTrain = bag.Counts;
mdl = fitcecoc(XTrain,YTrain,'Learners','linear')
mdl =
  classreg.learning.classif.CompactClassificationECOC
      ResponseName: 'Y'
        ClassNames: [1×39 categorical]
    ScoreTransform: 'none'
    BinaryLearners: {741×1 cell}
      CodingMatrix: [39×741 double]


  Properties, Methods

For a better fit, you can try specifying different parameters of the linear learners. For more information on linear classification learner templates, see templateLinear.

Test Classifier

Predict the labels of the test data using the trained model and calculate the classification accuracy. The classification accuracy is the proportion of the labels that the model predicts correctly.

Preprocess the test data using the same preprocessing steps as the training data. Encode the resulting test documents as a matrix of word frequency counts according to the bag-of-words model.

documentsTest = preprocessWeatherNarratives(textDataTest);
XTest = encode(bag,documentsTest);

Predict the labels of the test data using the trained model and calculate the classification accuracy.

YPred = predict(mdl,XTest);
acc = sum(YPred == YTest)/numel(YTest)
acc = 0.8808

Predict Using New Data

Classify the event type of new weather reports. Create a string array containing the new weather reports.

str = [ ...
    "A large tree is downed and blocking traffic outside Apple Hill."
    "Damage to many car windshields in parking lot."
    "Lots of water damage to computer equipment inside the office."];
documentsNew = preprocessWeatherNarratives(str);
XNew = encode(bag,documentsNew);
labelsNew = predict(mdl,XNew)
labelsNew = 3×1 categorical array
     Thunderstorm Wind
     Thunderstorm Wind
     Flash Flood

Example Preprocessing Function

The function preprocessWeatherNarratives, performs the following steps in order:

  1. Tokenize the text using tokenizedDocument.

  2. Lemmatize the words using normalizeWords.

  3. Erase punctuation using erasePunctuation.

  4. Remove a list of stop words (such as "and", "of", and "the") using removeStopWords.

  5. Remove words with 2 or fewer characters using removeShortWords.

  6. Remove words with 15 or more characters using removeLongWords.

function documents = preprocessWeatherNarratives(textData)

% Tokenize the text.
documents = tokenizedDocument(textData);

% Lemmatize the words. To improve lemmatization, first use
% addPartOfSpeechDetails.
documents = addPartOfSpeechDetails(documents);
documents = normalizeWords(documents,'Style','lemma');

% Erase punctuation.
documents = erasePunctuation(documents);

% Remove a list of stop words.
documents = removeStopWords(documents);

% Remove words with 2 or fewer characters, and words with 15 or more
% characters.
documents = removeShortWords(documents,2);
documents = removeLongWords(documents,15);

end
