Simulation 3D Aircraft

Implement aircraft in 3D environment

• Library:

• Aerospace Blockset / Animation / Simulation 3D

•

Description

The Simulation 3D Aircraft block implements an aircraft in a 3D visualization environment using translation and rotation to place the aircraft.

To use this block, ensure that the Simulation 3D Scene Configuration block is in your model. If you set the Sample time parameter of this block to -1, the block uses the sample time specified in the Simulation 3D Scene Configuration block.

The block input uses the aircraft north-east-down (NED) right-handed (RH) Cartesian coordinate system, with its origin fixed at the approximate aircraft center of gravity.

• X-axis — Along aircraft longitudinal axis, points forward

• Y-axis — Along aircraft lateral axis, points to the right

• Z-axis — Points downward

For more information, see About Aerospace Coordinate Systems.

Tip

Verify that the Simulation 3D Aircraft block executes before the Simulation 3D Scene Configuration block. That way, Simulation 3D Aircraft prepares the signal data before the Unreal Engine^® 3D visualization environment receives it. To check the block execution order, right-click the blocks and select Properties. On the General tab, confirm these Priority settings:

• Simulation 3D Scene Configuration — 0

• Simulation 3D Aircraft — -1

For more information about execution order, see Control and Display Execution Order.

Skeletons, Bones, and Meshes

Unreal^® uses a skeleton, bones, and mesh to define a 3D model. A skeleton is comprised of a set of bones. A mesh is the outer covering of the skeleton. Aircraft parts are sections of the mesh, such as ailerons or wheels, which are linked to the bones. For more information, see https://docs.unrealengine.com/4.27/AnimatingObjects/SkeletalMeshAnimation/Skeleton/.

For more information on how the Simulation 3D Aircraft block translation input arrays connect to aircraft types, see Algorithms.

Ports

Input

Translation — Aircraft translation

11-by-3 array | 12-by-3 array | 15-by-3 array | 30-by-3 array | 57-by-3 array

Aircraft translation, specified as:

• 11-by-3 array — Aircraft Type is Sky Hogg.

• 12-by-3 array — Aircraft Type is Airliner.

• 15-by-3 array — Aircraft Type is General Aviation.

• 30-by-3 array — Aircraft Type is Air Transport.

• 57-by-3 array — Aircraft Type is Custom.

The signal contains translation [X, Y, Z], in meters, with one row of the array for each bone of the aircraft.

The translation applies to these bones of the Airliner type:

Bone	Index
BODY	1
LEFT_ENGINE	2
RIGHT_ENGINE	3
RUDDER	4
ELEVATOR	5
LEFT_AILERON	6
RIGHT_AILERON	7
FLAPS	8
NOSE_WHEEL_STRUT	9
NOSE_WHEEL	10
LEFT_WHEEL	11
RIGHT_WHEEL	12

The translation applies to these bones of the Sky Hogg type:

Bone	Index
BODY	1
PROPELLER	2
RUDDER	3
ELEVATOR	4
LEFT_AILERON	5
RIGHT_AILERON	6
FLAPS	7
NOSE_WHEEL_STRUT	8
NOSE_WHEEL	9
LEFT_WHEEL	10
RIGHT_WHEEL	11

The translation applies to these bones of the General Aviation type:

Bone	Index
BODY	1
ENGINE1	2
RUDDER	3
ELEVATOR	4
LEFT_AILERON	5
RIGHT_AILERON	6
FLAPS	7
LEFT_SPOILER	8
RIGHT_SPOILER	9
NOSE_GEAR	10
NOSE_WHEEL	11
LEFT_GEAR	12
LEFT_WHEEL	13
RIGHT_GEAR	14
RIGHT_WHEEL	15

The translation applies to these bones of the Air Transport type:

Bone	Index
BODY	1
ENGINE1	2
ENGINE2	3
ENGINE3	4
ENGINE4	5
RUDDER	6
ELEVATOR	7
HORIZONTAL_STAB	8
LEFT_AILERON	9
RIGHT_AILERON	10
FLAPS1	11
FLAPS2	12
LEFT_SPOILER	13
RIGHT_SPOILER	14
NOSE_GEAR	15
NOSE_WHEEL	16
NOSE_GEAR_DOOR1	17
NOSE_GEAR_DOOR2	18
LEFT_GEAR	19
LEFT_WHEEL	20
LEFT_GEAR_LINK	21
LEFT_GEAR_DOOR1	22
LEFT_GEAR_DOOR2	23
LEFT_GEAR_DOOR2_2	24
RIGHT_GEAR	25
RIGHT_WHEEL	26
RIGHT_GEAR_LINK	27
RIGHT_GEAR_DOOR1	28
RIGHT_GEAR_DOOR2	29
RIGHT_GEAR_DOOR2_2	30

The translation applies to these bones of the Custom type:

Bone	Index
BODY	1
ENGINE1	2
ENGINE1_PROP	3
ENGINE2	4
ENGINE2_PROP	5
ENGINE3	6
ENGINE3_PROP	7
ENGINE4	8
ENGINE4_PROP	9
ENGINE5	10
ENGINE5_PROP	11
ENGINE6	12
ENGINE6_PROP	13
ENGINE7	14
ENGINE7_PROP	15
ENGINE8	16
ENGINE8_PROP	17
ENGINE9	18
ENGINE9_PROP	19
ENGINE10	20
ENGINE10_PROP	21
ENGINE11	22
ENGINE11_PROP	23
ENGINE12	24
ENGINE12_PROP	25
ENGINE13	26
ENGINE13_PROP	27
ENGINE14	28
ENGINE14_PROP	29
ENGINE15	30
ENGINE15_PROP	31
ENGINE16	32
ENGINE16_PROP	33
WING1	34
WING1_LEFT_FLAP	35
WING1_RIGHT_FLAP	36
WING1_LEFT_AILERON	337
WING1_RIGHT_AILERON	38
WING1_LEFT_SPOILER	39
WING1_RIGHT_SPOILER	40
WING2	41
WING2_LEFT_FLAP	42
WING2_RIGHT_FLAP	43
HORIZONTAL_STABILIZER	44
LEFT_ELEVATOR	45
RIGHT_ELEVATOR	46
LEFT_RUDDER	47
RIGHT_RUDDER	48
NOSE_GEAR	49
NOSE_WHEEL	50
NOSE_GEAR_DOOR	51
LEFT_GEAR	52
LEFT_WHEEL	53
LEFT_GEAR_DOOR	54
RIGHT_GEAR	55
RIGHT_WHEEL	56
RIGHT_GEAR_DOOR	57

Rotation — Aircraft and wheel rotation

11-by-3 array | 12-by-3 array | 15-by-3 array | 30-by-3 array | 57-by-3 array

Aircraft rotation, specified as:

• 11-by-3 array — Aircraft Type is Sky Hogg.

• 12-by-3 array — Aircraft Type is Airliner.

• 15-by-3 array — Aircraft Type is General Aviation.

• 30-by-3 array — Aircraft Type is Air Transport.

• 57-by-3 array — Aircraft Type is Custom.

The rotation applies to the same bones as listed for the Translation port.

The signal contains the rotation [roll, pitch, yaw], in radians, with one row of the array for each bone of the aircraft.

LightStates — Aircraft light control

1-by-7 vector of Boolean values

Aircraft light control, specified as a 1-by-7 vector of Boolean values. Each element of the vector turns on or off a specific aircraft light group. The vector has this order:

• LANDING_LIGHTS

• TAXI_LIGHTS

• ANTICOLLISION_BEACONS

• WINGTIP_STROBE_LIGHTS

• TAIL_STROBE_LIGHTS

• NAVIGATION_LIGHTS

• POSITION_LIGHTS

Dependencies

To enable this port, set the Light Configuration parameter to Configurable lights.

Output

Altitude — Aircraft attitude

1-by-4 vector

Aircraft altitude, returned as a 1-by-4 vector. The four altitudes are, in order:

• aircraft_body

• aircraft_front_tire

• aircraft_left_tire

• aircraft_right_tire

Dependencies

To enable this port, select the Enable altitude sensor check box.

Data Types: double

WoW — Weight on wheels

true | false

Aircraft weight on wheels logical switch, returned as true if either of the main gear tires (left or right) are on the ground. Otherwise, false is returned.

Dependencies

To enable this port, select the Enable altitude sensor check box.

Data Types: Boolean

Parameters

Sample time — Sample time

-1 (default) | real scalar

Sample time, T_s. The graphics frame rate is the inverse of the sample time.

Programmatic Use

Block Parameter: SampleTime

Type: character vector

Values: real scalar

Default: '-1'

Aircraft Parameters

Type — Aircraft type

Sky Hogg (default) | Airliner | General Aviation | Air Transport | Custom

Aircraft type, specified as Sky Hogg, Airliner, General Aviation, Air Transport, or Custom.

Dependencies

Setting this parameter requires that you set the Initial Translation and Initial rotation parameters to the matching array size. Failure to appropriately set these array sizes causes an error.

Programmatic Use

Block Parameter: Mesh

Type: character vector

Values: 'Sky Hogg' | 'Airliner' | 'General Aviation' | 'Air Transport' | 'Custom'

Default: 'Sky Hogg'

Path to general aviation mesh — Path to general aviation mesh

/MathWorksAerospaceContent/Vehicles/Aircraft/GeneralAviation/Mesh/SK_GeneralAviation.SK_GeneralAviation' (default) | character vector

Path to general aviation mesh, specified as a character vector.

Dependencies

• To enable this parameter, set Type to General Aviation.

Programmatic Use

Block Parameter: MeshPathGA

Type: character vector

Values: '/MathWorksAerospaceContent/Vehicles/Aircraft/GeneralAviation/Mesh/SK_GeneralAviation.SK_GeneralAviation'

Default: '/MathWorksAerospaceContent/Vehicles/Aircraft/GeneralAviation/Mesh/SK_GeneralAviation.SK_GeneralAviation'

Path to air transport mesh — Path to air transport mesh

/MathWorksAerospaceContent/Vehicles/Aircraft/AirTransport/Mesh/SK_AirTransport.SK_AirTransport (default) | character vector

Path to air transport mesh, specified as a character vector.

Dependencies

• To enable this parameter, set Type to Air Transport.

Programmatic Use

Block Parameter: MeshPathAT

Type: character vector

Values: '/MathWorksAerospaceContent/Vehicles/Aircraft/AirTransport/Mesh/SK_AirTransport.SK_AirTransport'

Default: '/MathWorksAerospaceContent/Vehicles/Aircraft/AirTransport/Mesh/SK_AirTransport.SK_AirTransport'

Path to custom mesh — Path to custom mesh

/MathWorksAerospaceContent/Vehicles/Aircraft/Custom/Mesh/SK_HL20.SK_HL20 (default) | /MathWorksAerospaceContent/Vehicles/Aircraft/Custom/Mesh/SK_Aircraft.SK_Aircraft | character vector

Path to custom mesh, specified as a character vector.

Dependencies

• To enable this parameter, set Type to Custom.

Programmatic Use

Block Parameter: MeshPath

Type: character vector

Values: '/MathWorksAerospaceContent/Vehicles/Aircraft/Custom/Mesh/SK_HL20.SK_HL20'

Default: '/MathWorksAerospaceContent/Vehicles/Aircraft/Custom/Mesh/SK_HL20.SK_HL20'

Color — Aircraft color

Red (default) | Orange | Yellow | Green | Cyan | Blue | Black | White | Silver | Metal

Aircraft color, specified as Red, Orange, Yellow, Green, Cyan, Blue, Black, White, Silver, or Metal.

Programmatic Use

Block Parameter: AircraftColor

Type: character vector

Values: 'Red' | 'Orange' | 'Yellow' | 'Green' | 'Cyan' | 'Blue' | 'Black' | 'White' | 'Silver' | 'Metal'

Default: 'Red'

Name — Aircraft name

SimulinkVehicle1 (default) | character vector

Aircraft name, specified as a character vector. By default, when you use the block in your model, the block sets the Name parameter to SimulinkVehicleX. The value of X depends on the number of Simulation 3D Aircraft blocks that you have in your model.

Programmatic Use

Block Parameter: ActorName

Type: character vector

Values: scalar

Default: 'SimulinkVehicle1'

Initial Values

Initial translation (in meters) — Initial translation of aircraft

zeros(11,3) (default) | 11-by-3 array | 12-by-3 array | 15-by-3 array | 30-by-3 array | 57-by-3 array

Initial translation of aircraft, specified as an 11-by-3, 12-by-3, 15-by-3, 30-by-3, or 57-by-3 array.

Dependencies

This parameter must match the aircraft type you set in Type. Failure to appropriately set these array sizes causes an error.

Programmatic Use

Block Parameter: Translation

Type: character vector

Values: 11-by-3 array | 12-by-3 array | 15-by-3 array | 30-by-3 array | 57-by-3 array

Default: 'zeros(11,3)'

Initial rotation (in radians) — Aircraft rotation

zeros(11,3) (default) | 11-by-3 array | 12-by-3 array | 15-by-3 array | 30-by-3 array | 57-by-3 array

Initial rotation of aircraft, specified as a 11-by-3, 12-by-3, 15-by-3, 30-by-3, or 57-by-3 array.

Programmatic Use

Block Parameter: Rotation

Type: character vector

Values: 11-by-3 array | 12-by-3 array | 15-by-3 array | 30-by-3 array | 57-by-3 array

Default: 'zeros(11,3)'

Altitude Sensor

Enable altitude sensor — Altitude sensor

on (default) | off

To enable the altitude sensor, select this check box. Otherwise, clear this check box.

Programmatic Use

Block Parameter: IsGHSensorEnabled

Type: character vector

Values: 'on' | 'off'

Default: 'on'

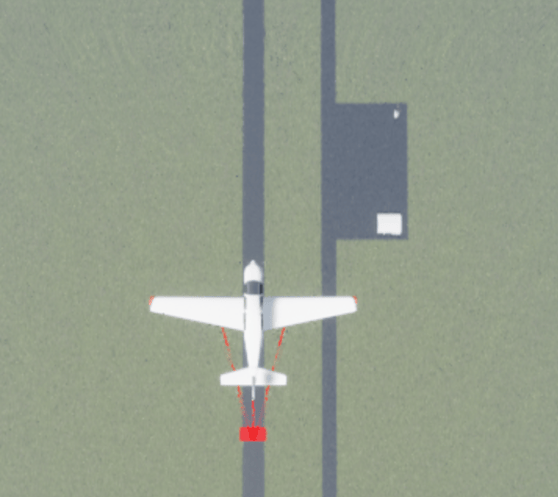

Enable visible sensor rays — Visible sensor rays

off (default) | on

To enable visible sensor rays, select this check box. Otherwise, clear this check box.

Dependencies

To enable this parameter, select the Enable altitude sensor check box.

Programmatic Use

Block Parameter: AreGHRaysVisible

Type: character vector

Values: 'on' | 'off'

Default: 'off'

Length of rays (in meters) — Length of rays

1524 (default) | real scalar

Length of rays, specified as a real scalar in meters. The length of the rays limits the altitude detection. For example, if the vertical distance to the ground beneath the aircraft origin is greater than the length of the rays plus the aircraft body Z offset, the altitude sensor returns -1 for the first value.

Dependencies

To enable this parameter, select the Enable altitude sensor check box.

Programmatic Use

Block Parameter: GHRayLength

Type: character vector

Values: real scalar

Default: '1524'

Aircraft body Z offset (in meters) — Aircraft body Z offset

0.90 (default) | real scalar

Aircraft body Z offset, specified as a real scalar in meters.

Dependencies

To enable this parameter, select the Enable altitude sensor check box.

Programmatic Use

Block Parameter: GHBodyOffset

Type: character vector

Values: real scalar

Default: '0.90'

Front gear tire radius (in meters) — Front gear tire radius

0.21 (default) | real scalar

Front gear tire radius, specified as a real scalar in meters. The front gear altitude ray originates at the front gear axle center plus the front gear tire radius Z offset.

Dependencies

To enable this parameter, select the Enable altitude sensor check box.

Programmatic Use

Block Parameter: GHFrontTireRadius

Type: character vector

Values: real scalar

Default: '0.21'

Left gear tire radius (in meters) — Left gear tire radius

0.21 (default) | real scalar

Left gear tire radius, specified as a real scalar in meters.

Dependencies

To enable this parameter, select the Enable altitude sensor check box.

Programmatic Use

Block Parameter: GHLeftTireRadius

Type: character vector

Values: real scalar

Default: '0.21'

Right gear tire radius (in meters) — Right gear tire radius

0.21 (default) | real scalar

Right gear tire radius, specified as a real scalar in meters.

Dependencies

To enable this parameter, select the Enable altitude sensor check box.

Programmatic Use

Block Parameter: GHRightTireRadius

Type: character vector

Values: real scalar

Default: '0.21'

Light Configuration

Light configuration — Light configurations options

Automatic lights (default) | Configurable lights | Lights off

Light configuration options

• Automatic lights — Use default aircraft lighting configuration that provides realistic pattern cycling.

• Configurable lights — Configure aircraft lighting parameters.

• Lights off — Turn off all aircraft lights.

Dependencies

• Setting this parameter to Automatic lights disables the configurability of all other Light Configuration parameters. The block uses the default parameter values for aircraft lighting values.

• Setting this parameter to Configurable lights enables the configurability of the Light Configuration parameters according to the aircraft type.

• Setting Type to these aircraft types and Light Configuration to Configurable lights enables the configurability of the lighting parameters in use for each aircraft.

  Type	Lights	Light Parameters
  Airliner	Landing lights	Landing lights intensity (cd) Landing lights cone half angle (deg)
  	Taxi lights	Taxi lights intensity (cd) Taxi lights cone half angle (deg)
  	Red/green navigation lights	Navigation lights intensity
  	White strobe lights	Strobe lights intensity Wingtip strobe period (s) Wingtip strobe pulse width (% of period) Tail strobe period (s) Tail strobe pulse width (% of period)
  	Red beacon lights	Beacon lights intensity Beacon period (s) Beacon pulse width (% of period)
  Sky Hogg	Landing lights	Landing lights intensity (cd) Landing lights cone half angle (deg)
  	Red/green navigation lights	Navigation lights intensity
  	White strobe lights	Strobe lights intensity Tail strobe period (s) Tail strobe pulse width (% of period)
  	Red beacon lights	Beacon lights intensity Beacon period (s) Beacon pulse width (% of period)
  General Aviation, Air Transport, or Custom	Landing lights	Landing lights intensity (cd) Landing lights cone half angle (deg) Left landing light location Left landing light orientation Right landing light location Right landing light orientation
  	Taxi lights	Taxi lights intensity (cd) Taxi lights cone half angle (deg) Taxi lights location Taxi lights orientation (deg)
  	Red/green navigation lights	Navigation lights intensity
  	White navigation lights	Position light intensity
  	White strobe lights	Strobe lights intensity Wingtip strobe period (s) Wingtip strobe pulse width (% of period) Tail strobe period (s) Tail strobe pulse width (% of period)
  	Red beacon lights	Beacon lights intensity Beacon period (s) Beacon pulse width (% of period)

• Setting this parameter to Lights off disables the configurability of all other Light Configuration parameters. The block turns off all aircraft lighting.

Programmatic Use

Block Parameter: 'LightsConfig'

Type: character vector

Values: 'Automatic lights' | 'Configurable lights' | 'Lights off'

Default: 'Automatic lights'

Landing lights intensity (cd) — Landing lights intensity

30000 (default) | positive scalar

Landing lights intensity, specified as a positive scalar, in candela.

Dependencies

To enable this parameter, set Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'LandingLightIntensity'

Type: character vector

Values: positive scalar

Default: '30000'

Landing lights cone half angle (deg) — Landing lights cone half angle

15 (default) | positive scalar

Landing lights cone half angle, specified as a positive scalar, in degrees.

Dependencies

To enable this parameter, set Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'LandingLightConeAngle'

Type: character vector

Values: positive scalar

Default: '15'

Left landing light location — Left landing light location

[0 0 0] (default) | 3-element vector

Left landing light location with respect to the associated bone of the skeletal mesh, specified as a 3-element vector.

Dependencies

To enable this parameter, set Type to General Aviation, Air Transport, or Custom and Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'CustomLeftLandingLightLocation'

Type: character vector

Values: 3-element vector

Default: '[0 0 0]'

Left landing light orientation (deg) — Left landing light orientation

[0 0 0] (default) | 3-element vector

Left landing light orientation with respect to the associated bone of the skeletal mesh, specified as a 3-element vector.

Dependencies

To enable this parameter, set Type to General Aviation, Air Transport, or Custom and Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'CustomLeftLandingLightOrientation'

Type: character vector

Values: 3-element vector

Default: '[0 0 0]'

Right landing light location — Right landing light location

[0 0 0] (default) | 3-element vector

Right landing light location with respect to the associated bone of the skeletal mesh, specified as a 3-element vector.

Dependencies

To enable this parameter, set Type to General Aviation, Air Transport, or Custom and Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'CustomRightLandingLightLocation'

Type: character vector

Values: 3-element vector

Default: '[0 0 0]'

Right landing light orientation (deg) — Right landing light orientation

[0 0 0] (default) | 3-element vector

Right landing light orientation with respect to the associated bone of the skeletal mesh, specified as a 3-element vector.

Dependencies

To enable this parameter, set Type to General Aviation, Air Transport, or Custom and Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'CustomRightLandingLightOrientation'

Type: character vector

Values: 3-element vector

Default: '[0 0 0]'

Taxi lights intensity (cd) — Taxi lights intensity

150000 (default) | positive scalar

Taxi lights intensity, specified as a positive scalar, in candela.

Dependencies

To enable this parameter, set Type to Airliner, General Aviation, Air Transport, or Custom and Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'TaxiLightIntensity'

Type: character vector

Values: positive scalar

Default: '150000'

Taxi lights cone half angle (deg) — Taxi lights cone half angle

36 (default) | positive scalar

Taxi lights cone half angle, specified as a positive scalar, in degrees.

Dependencies

To enable this parameter, set Type to Airliner, General Aviation, Air Transport, or Custom and Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'TaxiLightConeAngle'

Type: character vector

Values: positive scalar

Default: '36'

Taxi lights location — Taxi lights location

[0 0 0] (default) | 3-element vector

Taxi lights location with respect to the associated bone of the skeletal mesh, specified as a 3-element vector

Dependencies

To enable this parameter, set Type to General Aviation, Air Transport, or Custom and Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'CustomTaxiLightLocation'

Type: character vector

Values: positive scalar

Default: '[0 0 0]'

Taxi lights orientation (deg) — Taxi lights orientation

[0 0 0] (default) | 3-element vector

Taxi lights orientation with respect to the associated bone of the skeletal mesh, specified as a 3-element vector

Dependencies

To enable this parameter, set Type to General Aviation, Air Transport, or Custom and Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'CustomTaxiLightOrientation'

Type: character vector

Values: positive scalar

Default: '[0 0 0]'

Navigation lights intensity — Navigation lights intensity

500 (default) | positive scalar

Navigation lights intensity, specified as a positive scalar.

Dependencies

To enable this parameter, set Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'NavLightIntensity'

Type: character vector

Values: positive scalar

Default: '500'

Position light intensity — Position light intensity

500 (default) | positive scalar

Position light intensity, specified as a positive scalar.

Dependencies

To enable this parameter, set Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'PositionLightIntensity'

Type: character vector

Values: positive scalar

Default: '500'

Strobe lights intensity — Strobe lights intensity

5000 (default) | positive scalar

Strobe lights intensity, specified as a positive scalar.

Dependencies

To enable this parameter, set Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'StrobeLightIntensity'

Type: character vector

Values: positive scalar

Default: '5000'

Wingtip strobe period (s) — Wingtip strobe period

1.5 (default) | positive scalar

Wingtip strobe period, specified as a positive scalar.

Dependencies

To enable this parameter, set Type to Airliner, General Aviation, Air Transport, or Custom and Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'WingtipStrobePeriod'

Type: character vector

Values: positive scalar

Default: '1.5'

Wingtip strobe pulse width (% of period) — Wingtip strobe pulse width

6 (default) | positive scalar

Wingtip strobe pulse width, specified as a positive scalar.

Dependencies

To enable this parameter, set Type to Airliner, General Aviation, Air Transport, or Custom and Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'WingtipStrobePulseWidth'

Type: character vector

Values: positive scalar

Default: '6'

Tail strobe period (s) — Tail strobe period

1.5 (default) | positive scalar

Tail strobe period, specified as a positive scalar, in seconds.

Dependencies

To enable this parameter, set Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'TailStrobePeriod'

Type: character vector

Values: positive scalar

Default: '1.5'

Tail strobe pulse width (% of period) — Tail strobe pulse width

6 (default) | positive scalar

Tail strobe pulse width, specified as a positive scalar.

Dependencies

To enable this parameter, set Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'TailStrobePulseWidth'

Type: character vector

Values: positive scalar

Default: '6'

Beacon lights intensity — Beacon lights intensity

4000 (default) | positive scalar

Beacon lights intensity, specified as a positive scalar.

Dependencies

To enable this parameter, set Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'BeaconLightIntensity'

Type: character vector

Values: positive scalar

Default: '4000'

Beacon period (s) — Beacon period

1.5 (default) | positive scalar

Beacon period, specified as a positive scalar, in seconds.

Dependencies

To enable this parameter, set Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'BeaconPeriod'

Type: character vector

Values: positive scalar

Default: '1.5'

Beacon pulse width (% of period) — Beacon pulse width

10 (default) | positive scalar

Beacon pulse width, specified as a positive scalar.

Dependencies

To enable this parameter, set Light configuration to Configurable lights.

Programmatic Use

Block Parameter: 'BeaconPulseWidth'

Type: character vector

Values: positive scalar

Default: '10'

Model Examples

Using Unreal Engine Visualization for Airplane Flight

Use Unreal Engine to visualize a lightweight airplane flying over an airport.

Open Live Script

Algorithms

This topic lists how the block input arrays, 11-by-3, 12-by-3, 15-by-3, 30-by-3, and 57-by-3, connect to their associated aircraft types.

Airliner and Sky Hogg Aircraft Types

In Unreal skeletons, all bones have six degrees of freedom. However, for the Airliner and Sky Hogg aircraft types, the Simulation 3D Aircraft block only enables all six degrees of freedom (6DOF) for the BODY aircraft bone. For the other aircraft bones, the block enables only one degree of freedom. For more information, see Airliner Active Degrees of Freedom and Sky Hogg Active Degrees of Freedom.

In these tables, the markings indicate enabled or disabled degrees of freedom for corresponding aircraft bones. Columns X, Y, Z, Pitch, Roll, Pitch, and Yaw each correspond to one degree for the associated bone.

• — Degree of freedom enabled for the aircraft bone.

• X — Degree of freedom disabled for the aircraft bone.

Airliner Active Degrees of Freedom

Bone	Index	X	Y	Z	Roll	Pitch	Yaw
BODY	1
LEFT_ENGINE	2	X	X	X		X	X
RIGHT_ENGINE	3	X	X	X		X	X
RUDDER	4	X	X	X	X	X
ELEVATOR	5	X	X	X	X		X
LEFT_AILERON	6	X	X	X	X		X
RIGHT_AILERON	7	X	X	X	X		X
FLAPS	8	X	X	X	X		X
NOSE_WHEEL_STRUT	9	X	X	X	X	X
NOSE_WHEEL	10	X	X	X	X		X
LEFT_WHEEL	11	X	X	X	X		X
RIGHT_WHEEL	12	X	X	X	X		X

Sky Hogg Active Degrees of Freedom

Bone	Index	X	Y	Z	Roll	Pitch	Yaw
BODY	1
PROPELLER	2	X	X	X		X	X
RUDDER	3	X	X	X	X	X
ELEVATOR	4	X	X	X	X		X
LEFT_AILERON	5	X	X	X	X		X
RIGHT_AILERON	6	X	X	X	X		X
FLAPS	7	X	X	X	X		X
NOSE_WHEEL_STRUT	8	X	X	X	X	X
NOSE_WHEEL	9	X	X	X	X		X
LEFT_WHEEL	10	X	X	X	X		X
RIGHT_WHEEL	11	X	X	X	X		X

General Aviation, Air Transport, and Custom Aircraft Types

For general aviation, air transport and custom aircraft, the Simulation 3D Aircraft block enables six degrees of freedom (6DOF) for all aircraft bones. Note, the default poses for each bone in the skeletal mesh affects how the mesh deforms when you manipulate each degree of freedom.

Version History

Introduced in R2021b

R2022a: Support for Custom Meshes and Aircraft Lighting

The block now supports:

• The specification of a custom aircraft mesh with the Path to custom mesh parameter. To enable this parameter, set Type to Custom.

• The configuration of aircraft lighting with a new Light Configuration tab.

• More colors for aircraft bodies in the Color parameter.
