# Modeling and Analysis of Single Layer Multi-band U-Slot Patch Antenna

The standard rectangular microstrip patch is a narrowband antenna and provides 6-8 dBi Gain with linear polarization. This example based on the work done in ,, models a broadband patch antenna using a slot in the radiator and develops a dual-band and a tri-band variation from it. In the process, the single wide response has been split into multiple narrow band regions catering to specific bands in the WiMAX standard. These patch antennas have been probe-fed.

### Building the Single U-Slot Patch

Define parameters The basic U-slot patch antenna consists of a rectangular patch radiator within which a U-shaped slot has been cut out. As discussed in , the patch itself is on an air substrate and thick so as to enable higher bandwidths to be achieved. The presence of the slot structure achieves additional capacitance within the structure which combines with the inductance of the long probe feed to create a double resonance within the band. The geometry parameters based on  are defined and shown in a drawing below.

```L = 26e-3; W = 35.5e-3; Uy1 = 19.5e-3; Ux1 = 12e-3; Ua1 = 2.1e-3; Ud1 = 4.8e-3; d = 13.5e-3; h = 6e-3; ``` Define radiator shape - Single U-slot

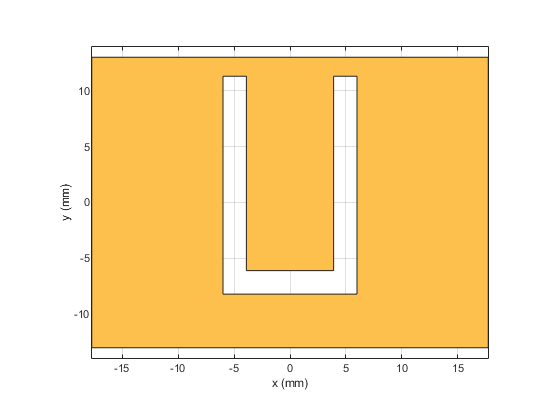

Use the rectangle shape primitives in Antenna Toolbox™ to create the U-slot patch radiator shape. Boolean subtraction operation is used among the shape primitives for this purpose.

```N1 = 2; %50; N2 = 2; %10; s = antenna.Rectangle('Length',W,'Width',L,'NumPoints',60); h1 = antenna.Rectangle('Length',Ua1,'Width',Uy1,'NumPoints',[N2 N1 N2 N1],... 'Center',[-Ux1/2 + Ua1/2, -L/2 + Ud1 + Uy1/2]); h2 = antenna.Rectangle('Length',Ua1,'Width',Uy1,'NumPoints',[N2 N1 N2 N1],... 'Center',[Ux1/2 - Ua1/2, -L/2 + Ud1 + Uy1/2]); h3 = antenna.Rectangle('Length',Ux1,'Width',Ua1,'NumPoints' ,[N1 N2 N1 N2],... 'Center',[0,-L/2 + Ud1 + Ua1/2]); Uslot_patch = s-h1-h2-h3; figure show(Uslot_patch) ``` Define ground shape

Create the ground plane shape for the antenna. The groundplane in this case is rectangular and 71 mm x 52 mm in size.

```Lgp = 71e-3; Wgp = 52e-3; p2 = antenna.Rectangle('Length',Lgp,'Width',Wgp,'NumPoints',10); ```

Define stack

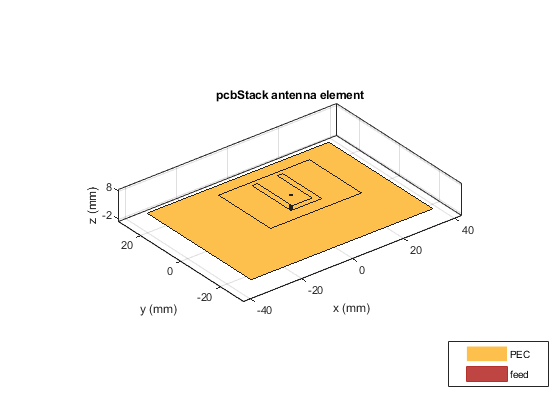

Use the pcbStack to define the metal and dielectric layers and the feed for the single U-slot patch antenna. The layers are defined top-down. In this case, the top-most layer is a metal layer defined by the U-slot patch shape. The second layer is a dielectric material, air in this case, and the third layer is the metal ground plane.

```d1 = dielectric('Air'); slotPatch = pcbStack; slotPatch.Name = 'U-Slot Patch'; slotPatch.BoardThickness = h; slotPatch.BoardShape = p2; slotPatch.Layers = {Uslot_patch,d1,p2}; slotPatch.FeedLocations = [0 L/2-d 1 3]; slotPatch.FeedDiameter = 0.9e-3; figure show(slotPatch) ``` ### Calculate and Plot Reflection Coefficient

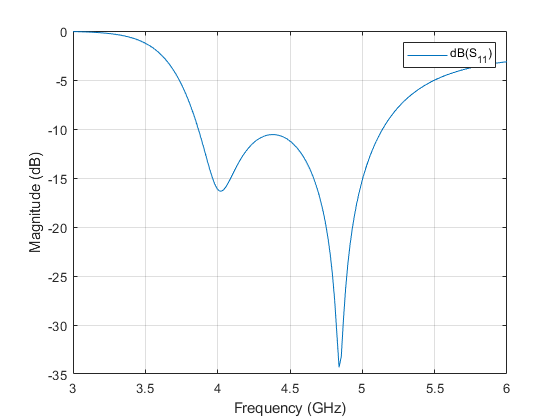

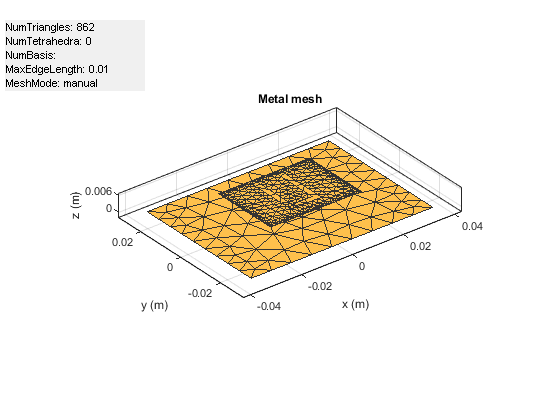

Mesh the structure by using a maximum edge length which is one-tenth the wavelength at the highest frequency of operation which is 6 GHz for this example. Compute and plot the reflection coefficient for this antenna over the band. The reflection coefficient is plotted with a reference impedance of 50 ohms.

```figure mesh(slotPatch,'MaxEdgeLength',.01,'MinEdgeLength',.001,'GrowthRate',0.7) ``` ```freq = linspace(3e9,6e9,200); s1 = sparameters(slotPatch,freq); s11Fig = figure; rfplot(s1,1,1) s11Ax = gca(s11Fig); hold(s11Ax,'on'); ``` ### Calculate and plot pattern

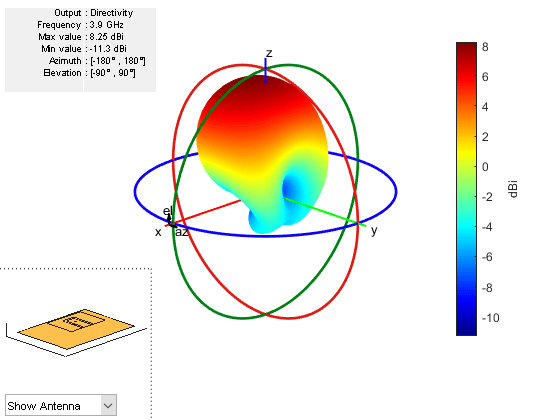

Plot the radiation pattern for this antenna at the frequencies of best match in the band.

```figure pattern(slotPatch,3.9e9) ``` ```figure pattern(slotPatch,4.74e9) ``` ### Dual-band U-Slot Patch Antenna

Define Parameters

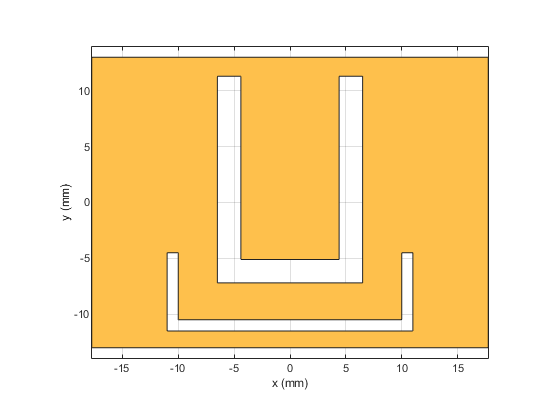

To achieve dual-band behavior as shown in , , the double resonance is modified such that the two contributing resonances, i.e. from the patch and from the slot do not merge. To do so the existing slot parameters are adjusted and a second slot is introduced into the structure. The parameters for the double U-slot are listed below as per  and a figure annotated with the variables used is shown.

```Ux1 = 13e-3; Ux2 = 22e-3; Uy1 = 18.5e-3; Uy2 = 7e-3; Ua2 = 1e-3; Ud1 = 5.8e-3; Ud2 = 1.5e-3; ``` As before use the shape primitives, to create the geometry by using Boolean operations.

```h1 = antenna.Rectangle('Length',Ua1,'Width',Uy1,'NumPoints',[N2 N1 N2 N1],'Center',[-Ux1/2 + Ua1/2, -L/2 + Ud1 + Uy1/2]); h2 = antenna.Rectangle('Length',Ua1,'Width',Uy1,'NumPoints',[N2 N1 N2 N1],'Center',[Ux1/2 - Ua1/2, -L/2 + Ud1 + Uy1/2]); h3 = antenna.Rectangle('Length',Ux1,'Width',Ua1,'NumPoints',[N1 N2 N1 N2],'Center',[0,-L/2 + Ud1 + Ua1/2]); Uslot_patch = s-h1-h2-h3; h4 = antenna.Rectangle('Length',Ua2,'Width',Uy2,'NumPoints',[N2 N1 N2 N1],'Center',[-Ux2/2 + Ua2/2, -L/2 + Ud2 + Uy2/2]); h5 = antenna.Rectangle('Length',Ua2,'Width',Uy2,'NumPoints',[N2 N1 N2 N1],'Center',[Ux2/2 - Ua2/2, -L/2 + Ud2 + Uy2/2]); h6 = antenna.Rectangle('Length',Ux2,'Width',Ua2,'NumPoints',[N1 N2 N1 N2],'Center',[0,-L/2 + Ud2 + Ua2/2]); DoubleUslot_patch = Uslot_patch-h4-h5-h6; figure show(DoubleUslot_patch) ``` Modify Layers in Stack

Modify the existing stack by introducing the new radiator in the Layers property.

```slotPatch.Layers = {DoubleUslot_patch,d1,p2}; figure show(slotPatch) ``` Mesh and Plot Reflection Coefficient

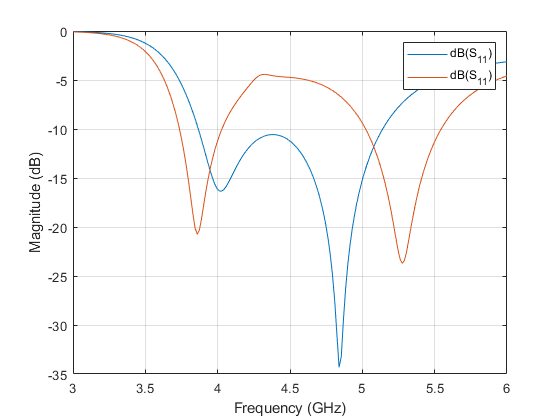

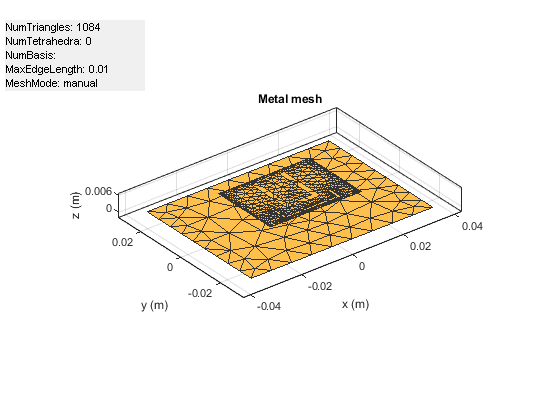

Mesh the structure at the highest frequency of operation and calculate the reflection coefficient.

```figure mesh(slotPatch,'MaxEdgeLength',.01,'MinEdgeLength',.001,'GrowthRate',0.5) ``` ```s2 = sparameters(slotPatch,freq); figure(s11Fig); rfplot(s2,1,1); ``` ### Triple-Band U-slot Patch Antenna Parameters

For triple-band operation a third U-slot is introduced and the existing slot parameters are adjusted. The parameters are shown below based on .

```d = 14.5e-3; Ux1 = 14e-3; Ux2 = 18e-3; Ux3 = 22e-3; Uy1 = 18.7e-3; Uy2 = 9e-3; Uy3 = 4e-3; Ud2 = 3.5e-3; Ud3 = 1.5e-3; Ua1 = 2e-3; Ua3 = 1e-3; ``` ```N1 = 20; %50; N2 = 10; %10; h1 = antenna.Rectangle('Length',Ua1,'Width',Uy1,'NumPoints',[N2 N1 N2 N1],'Center',[-Ux1/2 + Ua1/2, -L/2 + Ud1 + Uy1/2]); h2 = antenna.Rectangle('Length',Ua1,'Width',Uy1,'NumPoints',[N2 N1 N2 N1],'Center',[Ux1/2 - Ua1/2, -L/2 + Ud1 + Uy1/2]); h3 = antenna.Rectangle('Length',Ux1,'Width',Ua1,'NumPoints',[N1 N2 N1 N2],'Center',[0,-L/2 + Ud1 + Ua1/2]); Uslot_patch = s-h1-h2-h3; h4 = antenna.Rectangle('Length',Ua2,'Width',Uy2,'NumPoints',[N2 N1 N2 N1],'Center',[-Ux2/2 + Ua2/2, -L/2 + Ud2 + Uy2/2]); h5 = antenna.Rectangle('Length',Ua2,'Width',Uy2,'NumPoints',[N2 N1 N2 N1],'Center',[Ux2/2 - Ua2/2, -L/2 + Ud2 + Uy2/2]); h6 = antenna.Rectangle('Length',Ux2,'Width',Ua2,'NumPoints',[N1 N2 N1 N2],'Center',[0,-L/2 + Ud2 + Ua2/2]); DoubleUslot_patch = Uslot_patch-h4-h5-h6; h7 = antenna.Rectangle('Length',Ua3,'Width',Uy3,'NumPoints',[N2 N1 N2 N1],'Center',[-Ux3/2 + Ua3/2, -L/2 + Ud3 + Uy3/2]); h8 = antenna.Rectangle('Length',Ua3,'Width',Uy3,'NumPoints',[N2 N1 N2 N1],'Center',[Ux3/2 - Ua3/2, -L/2 + Ud3 + Uy3/2]); h9 = antenna.Rectangle('Length',Ux3,'Width',Ua3,'NumPoints',[N1 N2 N1 N2],'Center',[0,-L/2 + Ud3 + Ua3/2]); TripleUslot_patch = DoubleUslot_patch-h7-h8-h9; figure show(TripleUslot_patch) ``` Modify Layers in Stack

```slotPatch.Layers = {TripleUslot_patch,d1,p2}; slotPatch.FeedLocations = [0 L/2-d 1 3]; figure show(slotPatch) ``` Mesh and Plot Reflection Coefficient

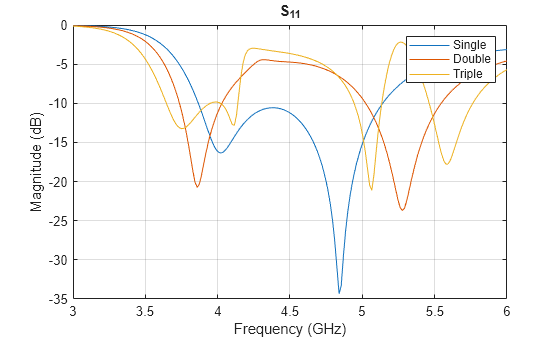

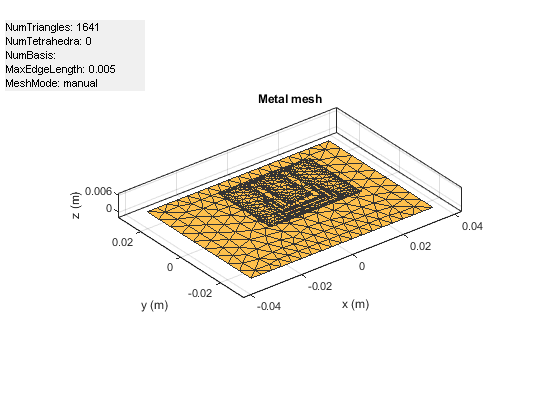

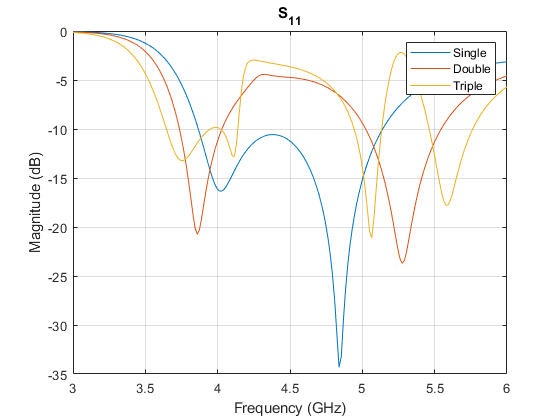

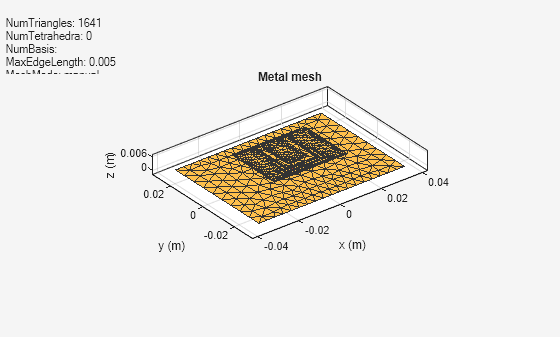

```figure mesh(slotPatch,'MaxEdgeLength',.005,'MinEdgeLength',.001,'GrowthRate',0.7) ``` ```s3 = sparameters(slotPatch,freq); figure(s11Fig) rfplot(s3,1,1) legend('Single','Double','Triple') title('S_1_1') ``` ### Conclusion

The models of the multi-band single layer U-slot patch antenna as discussed in , and  have been built and analyzed and agree well with results reported.

### Reference

 K. F. Lee, S. L. S. Yang and A. Kishk, "The versatile U-slot patch antenna," 2009 3rd European Conference on Antennas and Propagation, Berlin, 2009, pp. 3312-3314.

 W. C. Mok, S. H. Wong, K. M. Luk and K. F. Lee, "Single-Layer Single-Patch Dual-Band and Triple-Band Patch Antennas," in IEEE Transactions on Antennas and Propagation, vol. 61, no. 8, pp. 4341-4344, Aug. 2013.
