ofdmEqualize

Equalize OFDM signals

Since R2022b

Syntax

``[eqsym,csi]= ofdmEqualize(rxsym,heff,nvar)``
``[eqsym,csi]= ofdmEqualize(rxsym,heff)``
``[eqsym,csi]= ofdmEqualize(___,Name=Value)``

Description

````[eqsym,csi]= ofdmEqualize(rxsym,heff,nvar)` returns equalized symbols `eqsym` and soft channel state information `csi` after performing minimum mean squared error (MMSE) equalization on input OFDM symbols `rxsym`. `heff` specifies the effective estimated channel information. `nvar` specifies the estimated noise variance.```
````[eqsym,csi]= ofdmEqualize(rxsym,heff)` performs MMSE equalization with the estimated noise variance equal to 0.```

example

````[eqsym,csi]= ofdmEqualize(___,Name=Value)` specifies options using one or more name-value arguments in addition to the input arguments in the previous syntaxes. For example, `ofdmEqualize(rxsym,heff,Algorithm="zf")` equalizes the input OFDM symbols using the zero-forcing algorithm.```

Examples

collapse all

Estimate the channel response for a beamformed OFDM signal with ${\mathit{N}}_{\mathrm{S}}$ parallel data streams filtered through an ${\mathit{N}}_{\mathrm{T}}$-by-${\mathit{N}}_{\mathrm{R}}$ MIMO channel. Use the channel response to apply OFDM equalization to the received OFDM-demodulated signal.

Define simulation variables.

```rng(1); numStreams = 2; % Number of parallel data streams (Ns) numTx = 4; % Number of transmit antennas (Nt) numRx = 3; % Number of receive antennas (Nr) bps = 6; % Bits per QAM symbol (and OFDM data subcarrier) nfft = 256; % FFT length cpLen = 16; % Cyclic prefix length numOFDMSym = 10; % Number of OFDM symbols SNRdB = 40; % Signal-to-noise ratio```

Check that the number of data streams is no greater than either the number of transmit antennas or the number of receive antennas.

```if numStreams > min(numTx,numRx) error('numStreams must be equal to or less than numTx and numRx.'); end```

Configure OFDM subcarriers.

```ofdmNullIdx = ... % Guard bands and DC subcarrier [1:9 (nfft/2+1) (nfft-8+1:nfft)]'; numDataSC = ... % Number of data subcarriers nfft-length(ofdmNullIdx);```

Generate an array of data symbols consisting of ${\mathit{N}}_{\mathrm{S}}$ parallel data streams, QAM-modulate the symbols, and then OFDM-modulate the QAM-modulated symbols.

```dataBits = randi([0,1],[numDataSC*bps numOFDMSym numStreams]); M = 2^bps; % Modulation order qamTx = qammod(dataBits,M, ... InputType="bit", ... UnitAveragePower=true); ofdmOut = ofdmmod(qamTx,nfft,cpLen,ofdmNullIdx);```

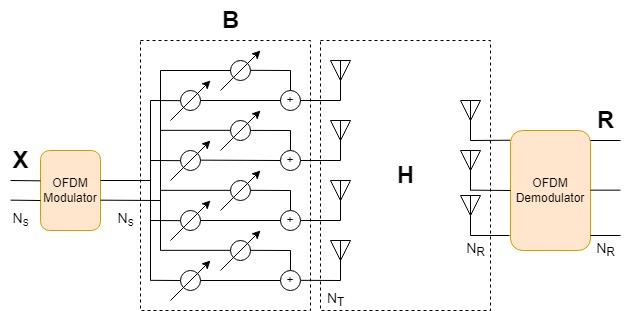

Beamforming expands the dimensionality of the transmit signal to improve link performance over multipath channels. The data streams are fed through a beamformer that focuses the transmit energy over an ${\mathit{N}}_{\mathrm{T}}×1\text{\hspace{0.17em}}$transmit antenna array where the number of antennas ${\mathit{N}}_{\mathrm{T}}\ge {\mathit{N}}_{\mathrm{S}}$.

Form a beamformer matrix from steering vectors acting on each stream.

```% Beamform the transmitted signal fc = 1e9; lambda = physconst('LightSpeed')/fc; beamAngles = 15; antIdx = (0:numTx-1); antDelay = 2*pi*sin(2*pi*beamAngles*(0:numStreams-1).'/360)/lambda; B = exp(1i*antIdx.*antDelay); % Ns x Nt beamformer matrix txOut = ofdmOut * B;```

Filter the OFDM-modulated signal through a MIMO channel to get the channel estimates.

```mimoChannel = comm.MIMOChannel( ... SampleRate=1e6, ... PathDelays=[0 3e-6 5e-6], ... AveragePathGains=[0 0.5 0.2], ... MaximumDopplerShift=0, ... SpatialCorrelationSpecification="None", ... NumTransmitAntennas=numTx, ... NumReceiveAntennas=numRx, ... PathGainsOutputPort=true); [channelOut,pathGains] = mimoChannel(txOut);```

In a practical system, the channel must be sounded to get the channel estimates. Instead of sounding, the `ofdmChannelResponse` function computes the exact channel estimates using the pathgains and pathfilters that are available after you pass data through the MIMO channel System object. Use channel path gains returned by the MIMO channel object, and the path filters and timing offset returned by the `info` object function, to estimate the OFDM channel response. If ${\mathit{N}}_{\mathrm{T}}<{\mathit{N}}_{\mathrm{R}}$, the channel forms an over-determined system (there are more receive antennas than necessary to adequately decode the transmitted signals). Call `ofdmChannelResponse` with the `pathGains` from the MIMO channel function to get the best channel estimates.

```mimoChannelInfo = info(mimoChannel); pathFilters = mimoChannelInfo.ChannelFilterCoefficients; toffset = mimoChannelInfo.ChannelFilterDelay; hest = ofdmChannelResponse(pathGains,pathFilters,nfft,cpLen, ... setdiff(1:nfft,ofdmNullIdx),toffset); % Nsc x Nsym x Nt x Nr [rxIn,nVar] = awgn(channelOut,SNRdB,"measured");```

Before demodulating the OFDM signal, account for the timing offset and symbol offset, remove the initial samples, and then pad with zeros to keep the signal length unchanged.

```zeropadding = zeros(toffset,numRx); ofdmDemodIn = [rxIn(toffset+1:end,:); zeropadding]; symOffset = cpLen/2;```

OFDM-demodulate and equalize the received signal.

`rxSym = ofdmdemod(ofdmDemodIn,nfft,cpLen,symOffset,ofdmNullIdx);`

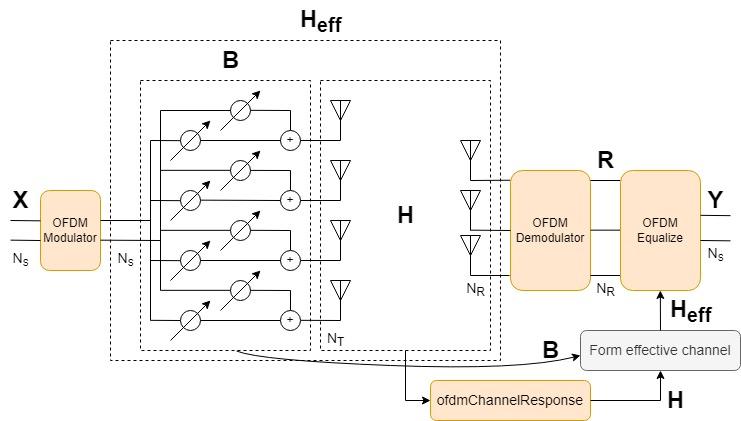

The effects of beamforming and the MIMO channel affect the received data streams. The "effective" channel (${\mathit{H}}_{\mathrm{eff}}$) is an ${\mathit{N}}_{\mathrm{S}}$-by-${\mathit{N}}_{\mathrm{R}}$ matrix defined as the product of the transmit beamformer and the estimated MIMO channel.

To use the OFDM channel response when equalizing the OFDM-demodulated signal, you must reshape the ${\mathit{N}}_{\mathit{SC}}$-by-${\mathit{N}}_{\mathrm{OFDMsym}}$-by-${\mathit{N}}_{\mathrm{T}}$-by-${\mathit{N}}_{\mathrm{R}}$ array to an ${\mathit{N}}_{\mathrm{QAMsym}}$-by-${\mathit{N}}_{\mathrm{T}}$-by-${\mathit{N}}_{\mathrm{R}}$ array. Form the effective channel using the beamformer matrix `B` and the reshaped channel estimates `hest`. Equalize the received OFDM signal using the calculated effective channel, the noise variance, and the MMSE algorithm.

```hestReshaped = reshape(hest,[],numTx,numRx); heff = zeros(numDataSC*numOFDMSym,numStreams,numRx); for k = 1:numOFDMSym*numDataSC heff(k,:,:) = B * squeeze(hestReshaped(k,:,:)); end eqSym = ofdmEqualize(rxSym,heff,nVar);```

Show the received OFDM-demodulated symbols (`rxSym`) and the equalized OFDM-demodulated symbols (`eqSym`). The constellation of the OFDM-demodulated symbols before equalization does not resemble the QAM constellation. After equalization, the constellation points lay near the reference constellation.

```figure(1); scatterplot(rxSym(:));```

```figure(2); scatterplot(eqSym(:));```

Initialize variables for simulation of a MIMO system and a 120-resource-element subset of the OFDM subcarrier-symbol grid.

```Nre = 120; % Number of resource elements Ns = 4; % Number of data streams Nr = 8; % Number of receive antennas nvar = 0.1; % Noise variance```

Create random signals for a 2-D symbol array and a channel estimate.

```rxsym2d = complex(randn(Nre,Nr),randn(Nre,Nr)); Hest = complex(randn(Nre,Ns,Nr),randn(Nre,Ns,Nr));```

Apply OFDM equalization to the 2-D signal contained in an 120-by-8 symbol array.

`[eqsym2d,csi2d] = ofdmEqualize(rxsym2d,Hest,nvar,DataFormat="2-D");`

Reshape the 2-D signal to a 30-by-4-by-8 symbol array. Apply OFDM equalization to the 3-D signal. Compare the results of OFDM equalization for the 30-by-4-by-8 symbol array with OFDM equalization for the 120-by-8 symbol array. As the `isequal` function result shows, the equalized symbols and soft channel state information returned for the 30-by-4-by-8 and 120-by-8 symbol arrays are equal.

```rxsym3d = reshape(rxsym2d,30,4,Nr); [eqsym3d,csi3d] = ofdmEqualize(rxsym3d,Hest,nvar,DataFormat="3-D"); isequal(eqsym3d,reshape(eqsym2d,30,4,Ns))```
```ans = logical 1 ```
`isequal(csi3d,csi2d)`
```ans = logical 1 ```

Reshape the 2-D signal to a 60-by-2-by-8 symbol array. Apply OFDM equalization to the 3-D signal. Compare the results of OFDM equalization for the 60-by-2-by-8 symbol array with OFDM equalization for the 120-by-8 symbol array. The `isequal` function result confirms the equalized symbols and soft channel state information returned for the 60-by-2-by-8 and 120-by-8 symbol arrays are equal.

```rxsym3d2 = reshape(rxsym2d,60,2,Nr); [eqsym3d2,csi3d2] = ofdmEqualize(rxsym3d2,Hest,nvar,DataFormat="3-D"); isequal(eqsym3d2,reshape(eqsym2d,60,2,Ns))```
```ans = logical 1 ```
`isequal(csi3d2,csi2d)`
```ans = logical 1 ```

Input Arguments

collapse all

Received symbols, specified as a 3-D or 2-D numeric array, `dlarray` (Deep Learning Toolbox) object, or `gpuArray` (Parallel Computing Toolbox) object. For more information, see Array Support.

• If `DataFormat` is set to `"3-D"`, the function expects `rxsym` to be specified as an NSC-by-NSymbols-by-NR array. NSC represents the number of OFDM subcarriers, NSymbols represents the number of OFDM symbols, and NR represents the number of receive antennas.

• If `DataFormat` is set to `"2-D"`, the function expects `rxsym` to be specified as an NRE-by-NR array. NRE represents the number of resource elements in an irregular subset of the OFDM subcarrier symbol grid. A resource element comprises one subcarrier in the frequency domain and one OFDM symbol in the time domain.

Data Types: `double` | `single`
Complex Number Support: Yes

Effective channel estimate, specified as a 3-D numeric array, `dlarray` (Deep Learning Toolbox) object, or `gpuArray` (Parallel Computing Toolbox) object. `heff` can be a `dlarray` object only when the number of data streams NS == 1. For more information, see Effective Channel and Array Support.

• If `DataFormat` is set to `"3-D"`, the function expects `heff` to be an NSC-by-NS-by-NR or an (NSC×NSymbols)-by-NS-by-NR array.

• If `heff` is an NSC-by-NS-by-NR array, all OFDM symbols in `rxsym` are equalized by the same channel estimate. NSC represents the number of OFDM subcarriers, NS represents the number of data streams, and NR represents the number of receive antennas.

• If `heff` is an (NSC×NSymbols)-by-NS-by-NR array, each OFDM symbol in `rxsym` is equalized by the corresponding entry in `heff`. NSymbols represents the number of OFDM symbols.

• If `DataFormat` is set to `"2-D"`, the function expects `heff` to be an NRE-by-NSc-by-NR array. Each OFDM symbol in `rxsym` is equalized by the corresponding entry in `heff`. NRE represents the number of resource elements in an irregular subset of the OFDM subcarrier symbol grid.

Data Types: `double` | `single`
Complex Number Support: Yes

Noise variance estimate for MMSE equalization, specified as a nonnegative scalar or `gpuArray` (Parallel Computing Toolbox) object.

Dependencies

The noise variance setting is used only when you set `Algorithm` to `"mmse"`.

Data Types: `double` | `single`

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `ofdmEqualize(rxsym,heff,DataFormat="2-D")` equalizes an NRE-by-NR input OFDM symbol array using the MMSE algorithm.

Equalization algorithm, specified as `"mmse"` or `"zf"`.

• When this argument is set to `"mmse"`, the function equalizes using the MMSE algorithm.

• When this argument is set to `"zf"`, the function equalizes using the zero-forcing algorithm. When using the zero-forcing algorithm, the `nvar` argument value is ignored.

Format of the signals, specified as `"3-D"` or `"2-D"`.

When this argument is set to `"3-D"`, OFDM subcarriers and OFDM symbols use two separate dimensions in the representation of `rxsym` and `eqsym`.

• The `rxsym` input must be an NSC-by-NSymbols-by-NR array.

• The `eqsym` output is returned as an NSC-by-NSymbols-by-NS array.

When this argument is set to `"2-D"`, OFDM subcarriers and OFDM symbols use one combined dimension in the representation of `rxsym` and `eqsym`.

• The `rxsym` input must be an NRE-by-NR array.

• The `eqsym` output is returned as an NRE-by-NS array.

NSC represents the number of OFDM subcarriers. NSymbols represents the number of symbols. NRE represents the number of resource elements in an irregular subset of the OFDM subcarrier symbol grid. NS represents the number of data streams. NR represents the number of receive antennas.

Output Arguments

collapse all

Equalized symbols, returned as a 3-D or 2-D numeric array, `dlarray` (Deep Learning Toolbox), or `gpuArray` (Parallel Computing Toolbox). If inputs are specified as a combination of `dlarray` and `gpuArray`, the returned matrix is a `dlarray` object on the GPU. For more information, see Array Support.

• If `DataFormat` is set to `"3-D"`, the function returns an NSC-by-NSymbols-by-NS array. NSC represents the number of OFDM subcarriers, NSymbols represents the number of OFDM symbols, and NS represents the number of data streams.

• If `DataFormat` is set to `"2-D"`, the function returns an NRE-by-NS array. NRE represents the number of resource elements in an irregular subset of the OFDM subcarrier symbol grid.

Soft channel state information, returned as a matrix with ```size(csi,1) = size(heff,1)``` and ```size(csi,2) = NS = size(heff,2)```. NS represents the number of data streams. This output is a log-likelihood ratio (LLR) scaling factor that accounts for the SNR in each resource element. A resource element comprises one subcarrier in the frequency domain and one OFDM symbol in the time domain.

The returned matrix can be a numeric array, `dlarray` (Deep Learning Toolbox), or `gpuArray` (Parallel Computing Toolbox). If inputs are specified as a combination of `dlarray` and `gpuArray`, the returned matrix is a `dlarray` object on the GPU. For more information, see Array Support.

collapse all

Array Support

The `ofdmEqualize` function supports input signals represented in a numeric array, `dlarray` (Deep Learning Toolbox), or `gpuArray` (Parallel Computing Toolbox).

The number of batch observations (NB) is an optional dimension that can be added to these inputs for all supported data types.

NSC represents the number of OFDM subcarriers. NSymbols represents the number of symbols. NRE represents the number of resource elements in an irregular subset of the OFDM subcarrier symbol grid. NS represents the number of data streams. NR represents the number of receive antennas.

Algorithms

collapse all

Represent a MIMO, SISO, SIMO, or MISO communications system as Y = XHeff + N, where:

• X is an NSC-by-NS transmitted signal.

• Heff is an NS-by-NR MIMO channel matrix.

• N is an NR-by-1 AWGN signal at receiver.

• Y is an NSC-by-NR received signal.

• NSC is the number of OFDM subcarriers.

• NS is the number of data streams.

• NR is the number of receive antennas.

OFDM Equalization

In an OFDM system, Y = XHeff + N applies to each frequency subcarrier. Equalization estimates the transmitted OFDM signal X and the soft channel state information by using a zero-forcing (ZF) equalizer or a minimum mean square estimate (MMSE) equalizer.

ZF Equalizer

With a ZF equalizer, the estimate of X is

`$\stackrel{^}{X}=Y{\stackrel{^}{H}}_{\text{eff}}^{†},$`

where ${\stackrel{^}{H}}_{\text{eff}}^{†}$ is the pseudo inverse of Ĥeff.

When NS < NR, the soft channel state information is

`$CSI=\mathrm{diag}\left({\stackrel{^}{H}}_{\text{eff}}{\stackrel{^}{H}}_{\text{eff}}^{\text{'}}\right)$`

and when NSNR

`$CSI=1/\left(\mathrm{diag}{\left({\stackrel{^}{H}}_{\text{eff}}{\stackrel{^}{H}}_{\text{eff}}^{\text{'}}\right)}^{-1}\right).$`

MMSE Equalizer

With an MMSE equalizer, the estimate of X is

`$\stackrel{^}{X}=Y{\stackrel{^}{H}}_{\text{eff}}^{\text{'}}{\left({\stackrel{^}{H}}_{\text{eff}}{\stackrel{^}{H}}_{\text{eff}}^{\text{'}}+{N}_{0}I\right)}^{-1}.$`

The soft channel state information is

`$CSI=1/\left(\mathrm{diag}{\left({\stackrel{^}{H}}_{\text{eff}}{\stackrel{^}{H}}_{\text{eff}}^{\text{'}}+{N}_{0}I\right)}^{-1}\right).$`

Effective Channel

The effective channel, Heff = PBH, measures the channel from the transmitted data streams to the receive antennas and results in an NS-by-NR matrix.

• P is an NS-by-NS precoding matrix. When there is no precoding, the precoding matrix is an NS-by-NS identity matrix.

• B is an NS-by-NT beamforming matrix. When there is no beamforming, NS=NT, and the beamforming matrix is an NS-by-NS identity matrix.

• H is an NT-by-NR matrix containing the estimated channel information.

Version History

Introduced in R2022b
