Sample Rate Offset

Apply sample rate offset to input signal

  • Library:
  • Communications Toolbox / RF Impairments and Components

  • Sample Rate Offset block

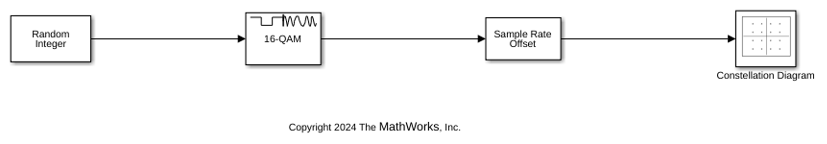

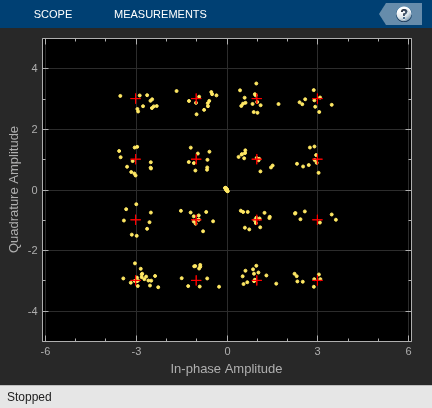

Description

The Sample Rate Offset block applies a sample rate offset to the input signal. Applying a sample rate offset is equivalent to changing the ADC clock rate.

Ports

Input

expand all

Input signal, specified as a scalar, an NS element column vector, or an NS-by-NC matrix. NS is the number of time samples. NC is the number of channels. For matrix input signals, the sample rate offset is applied independently to each column.

Data Types: double | single
Complex Number Support: Yes

Output

expand all

Output signal, returned as a scalar, vector, or matrix. This output is the same data type as the input signal.

Parameters

expand all

Sample rate offset in parts per million (ppm), specified as a scalar greater than –1e6.

Data Types: double

Type of simulation to run, specified as Interpreted execution or Code generation.

  • Interpreted execution –– Simulate the model by using the MATLAB® interpreter. This option requires less startup time than the Code generation option, but the speed of subsequent simulations is slower. In this mode, you can debug the source code of the block.

  • Code generation –– Simulate the model by using generated C code. The first time you run a simulation, Simulink® generates C code for the block. The C code is reused for subsequent simulations unless the model changes. This option requires additional startup time, but the speed of the subsequent simulations is faster than Interpreted execution.

Block Characteristics

Data Types

double | single

Multidimensional Signals

no

Variable-Size Signals

yes

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2022b
