zoomcp

Zoom Nyquist plot to region around critical point

collapse all in page

    Syntax

    zoomcp(np)

    Description

    zoomcp(np) zooms the Nyquist plot corresponding to chart object np to the region around the critical point (–1,0).

    example

    Examples

    collapse all

    Open Live Script

    Plot the Nyquist frequency response of a dynamic system. Assign a variable name to the plot handle so that you can access it for further manipulation.

    sys = tf(100,[1,2,1]);
h = nyquistplot(sys);

    MATLAB figure

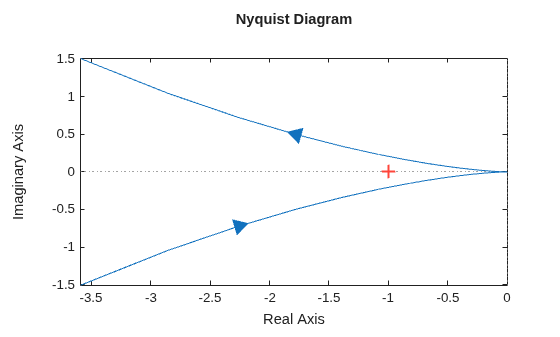

    Zoom in on the critical point, (–1,0). You can do so interactively by right-clicking on the plot and selecting Zoom on (-1,0). Alternatively, use the zoomcp command on the plot handle h.

    zoomcp(h)

    MATLAB figure

    Input Arguments

    collapse all

    Nyquist plot, specified as a nyquistplot object.

    Alternative Functionality

    To interactively zoom to the region around the critical point, right click the Nyquist plot area and select Zoom on (-1,0).

    Version History

    Introduced in R2019b
