Stability Analysis

Gain and phase margins, pole and zero locations

Stability is a standard requirement for control systems to avoid loss of control and damage to equipment. For linear feedback systems, stability can be assessed by looking at the poles of the closed-loop transfer function.

Gain and phase margins measure how much gain or phase variation at the gain crossover frequency will cause a loss of stability. Together, these two quantities give an estimate of the safety margin for closed-loop stability. The smaller the stability margins, the more fragile stability is.

Functions

expand all

polePoles of dynamic system
zeroZeros and gain of SISO dynamic system
dampNatural frequency and damping ratio
dsortSort discrete-time poles by magnitude
esortSort continuous-time poles by real part
tzeroInvariant zeros of linear system

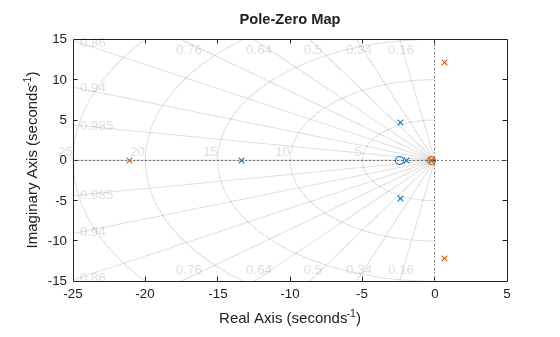

pzmapPole-zero map of dynamic system
iopzmapPlot pole-zero map for input-output pairs of dynamic system using default options
allmarginGain margin, phase margin, delay margin, and crossover frequencies
marginGain margin, phase margin, and crossover frequencies
