## Exponential Models

### About Exponential Models

The toolbox provides a one-term and a two-term exponential model as given by

$$\begin{array}{l}y=a{e}^{bx}\\ y=a{e}^{bx}+c{e}^{dx}\end{array}$$

Exponentials are often used when the rate of change of a quantity is
proportional to the initial amount of the quantity. If the coefficient
associated with *b* and/or *d* is
negative, *y* represents exponential decay. If the
coefficient is positive, *y* represents exponential
growth.

For example, a single radioactive decay mode of a nuclide is described by a
one-term exponential. *a* is interpreted as the initial
number of nuclei, *b* is the decay constant,
*x* is time, and *y* is the number
of remaining nuclei after a specific amount of time passes. If two decay
modes exist, then you must use the two-term exponential model. For the
second decay mode, you add another exponential term to the model.

Examples of exponential growth include contagious diseases for which a cure is unavailable, and biological populations whose growth is uninhibited by predation, environmental factors, and so on.

### Fit Exponential Models Interactively

Open the Curve Fitter app by entering

`curveFitter`

at the MATLAB^{®}command line. Alternatively, on the**Apps**tab, in the**Math, Statistics and Optimization**group, click**Curve Fitter**.In the Curve Fitter app, select curve data. On the

**Curve Fitter**tab, in the**Data**section, click**Select Data**. In the**Select Fitting Data**dialog box, select**X data**and**Y data**, or just**Y data**against an index.Click the arrow in the

**Fit Type**section to open the gallery, and click**Exponential**in the**Regression Models**group.

The **Fit Options** pane for the single-term
**Exponential** fit is shown here.

You can specify the following options in the **Fit
Options** pane:

Choose one or two terms to fit

`exp1`

or`exp2`

. Look in the**Results**pane to see the model terms, values of the coefficients, and goodness-of-fit statistics.Optionally, in the

**Advanced Options**section, specify coefficient starting values and constraint bounds appropriate for your data, or change algorithm settings. The coefficient starting values and constraints shown here are for the`census`

data.The app calculates optimized start points for

**Exponential**fits, based on the data set. You can override the start points and specify your own values in the**Fit Options**pane. For an example specifying starting values appropriate to the data, see Gaussian Fitting with an Exponential Background.

For more information on the settings, see Specify Fit Options and Optimized Starting Points.

### Fit Exponential Models Using the fit Function

This example shows how to fit an exponential model to data using the `fit`

function.

The exponential library model is an input argument to the `fit`

and `fittype`

functions. Specify the model type `'exp1'`

or `'exp2'`

.

**Fit a Single-Term Exponential Model**

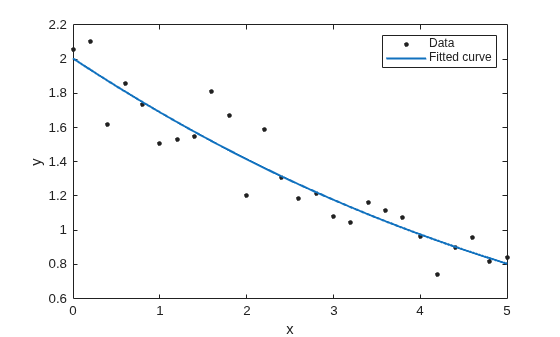

Generate data with an exponential trend and then fit the data using a single-term exponential. Plot the fit and data.

```
x = (0:0.2:5)';
y = 2*exp(-0.2*x) + 0.1*randn(size(x));
f = fit(x,y,'exp1')
```

f = General model Exp1: f(x) = a*exp(b*x) Coefficients (with 95% confidence bounds): a = 2.021 (1.89, 2.151) b = -0.1812 (-0.2104, -0.152)

plot(f,x,y)

**Fit a Two-Term Exponential Model**

`f2 = fit(x,y,'exp2')`

f2 = General model Exp2: f2(x) = a*exp(b*x) + c*exp(d*x) Coefficients (with 95% confidence bounds): a = 384.8 (-4.78e+09, 4.78e+09) b = -0.2572 (-2939, 2938) c = -382.8 (-4.78e+09, 4.78e+09) d = -0.2577 (-2957, 2957)

plot(f2,x,y)

**Set Start Points**

The toolbox calculates optimized start points for exponential fits based on the current data set. You can override the start points and specify your own values.

Find the order of the entries for coefficients in the first model ( `f`

) by using the `coeffnames`

function.

coeffnames(f)

`ans = `*2x1 cell*
{'a'}
{'b'}

If you specify start points, choose values appropriate to your data. Set arbitrary start points for coefficients `a`

and `b`

for example purposes.

f = fit(x,y,'exp1','StartPoint',[1,2])

f = General model Exp1: f(x) = a*exp(b*x) Coefficients (with 95% confidence bounds): a = 2.021 (1.89, 2.151) b = -0.1812 (-0.2104, -0.152)

plot(f,x,y)

**Examine Exponential Fit Options**

Examine the fit options if you want to modify fit options such as coefficient starting values and constraint bounds appropriate for your data, or change algorithm settings. For details on these options, see the table of properties for NonlinearLeastSquares on the `fitoptions`

reference page.

`fitoptions('exp1')`

ans = Normalize: 'off' Exclude: [] Weights: [] Method: 'NonlinearLeastSquares' Robust: 'Off' StartPoint: [1x0 double] Lower: [1x0 double] Upper: [1x0 double] Algorithm: 'Trust-Region' DiffMinChange: 1.0000e-08 DiffMaxChange: 0.1000 Display: 'Notify' MaxFunEvals: 600 MaxIter: 400 TolFun: 1.0000e-06 TolX: 1.0000e-06
