JTAG Connection

VendorRequired HardwareRequired Software
Intel®

USB Blaster I or USB Blaster II download cable

  • USB Blaster I or II driver

  • For Windows® operating systems: Quartus® Prime executable directory must be on system path.

  • For Linux® operating systems: versions below Quartus II 13.1 are not supported. Quartus II 14.1 is not supported. Only 64-bit Quartus is supported. Quartus library directory must be on LD_LIBRARY_PATH before starting MATLAB®. Prepend the Linux distribution library path before the Quartus library on LD_LIBRARY_PATH. For example, /lib/x86_64-linux-gnu:$QUARTUS_PATH.

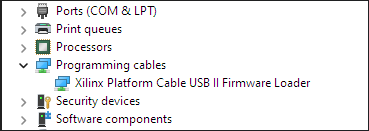

Xilinx®

Digilent® download cable.

  • If your board has an onboard Digilent USB-JTAG module, use a USB cable.

  • If your board has a standard Xilinx 14 pin JTAG connector, use with HS2 or HS3 cable from Digilent.

  • For Windows operating systems: Xilinx Vivado® executable directory must be on system path.

  • For Linux operating systems: Digilent Adept2

FTDI USB-JTAG cable

  • Supported for boards with onboard FT4232H, FT232H, or FT2232H devices implementing USB-to JTAG

Install these D2XX drivers.

  • For Windows operating systems: 2.12.28 (64 bit)

  • For Linux operating systems: 1.4.22 (64 bit)

For the installation guide, see D2XX Drivers from the FTDI Chip website.

Microsemi®JTAG connection not supported

Note

When simulating your FPGA design through Digilent JTAG cable with Simulink® or MATLAB, you cannot use any debugging software that requires access to the JTAG; for example, Vivado Logic Analyzer.
