ncapScenario

Generate seed scenario descriptor for Euro NCAP test

Since R2024a

collapse all in page

Syntax

descriptor = ncapScenario(ncapTestName)

Description

example

descriptor = ncapScenario(ncapTestName) generates a seed scenario descriptor, descriptor, for the input European New Car Assessment Programme (Euro NCAP®) test name ncapTestName.

Note

This function requires the Automated Driving Toolbox™ Test Suite for Euro NCAP® Protocols support package. You can install the Automated Driving Toolbox Test Suite for Euro NCAP Protocols from the Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Examples

collapse all

This example uses:

Open Live Script

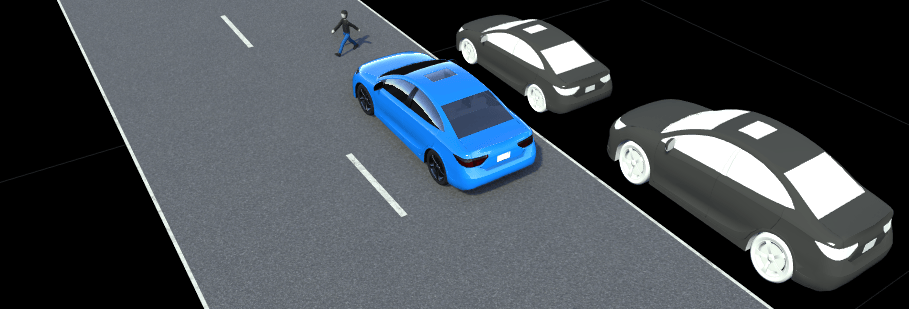

Specify the European New Car Assessment Programme (Euro NCAP) test name for the Vulnerable Road User Automatic Emergency Braking Crossing Car-to-Pedestrian Nearside Child Obstructed test.

ncapTestName = "VRU AEB Crossing CPNCO";

Generate a seed scenario descriptor for the NCAP test, which you can use to create its variants.

descriptor = ncapScenario(ncapTestName);

To visualize the created scenario, specify the path to your local RoadRunner installation folder. This code shows the path for the default installation location of RoadRunner R2024a on Windows®.

appPath = "C:\Program Files\RoadRunner R2024a\bin\win64";

Specify the path to your RoadRunner project. This code shows the path for a sample project folder location in Windows.

projectPath = "C:\RR\MyProject";

Set up the environment for opening the scenario in RoadRunner. Update the settings group.

s = settings;
s.roadrunner.application.InstallationFolder.TemporaryValue = appPath;

Open RoadRunner using the specified path to your project, and get the ScenarioSimulation object from your scenario.

rrApp = roadrunner(projectPath);
scenario = getScenario(descriptor,Simulator="RoadRunner",SimulatorInstance=rrApp);

Input Arguments

collapse all

Euro NCAP test scenario name, specified as one of the ncapTestName values listed in the Euro NCAP Test Scenario Information section.

Output Arguments

collapse all

Scenario descriptor, returned as a ScenarioDescriptor object.

The ScenarioDescriptor object stores the scene, actor, and vehicle information of a seed scenario. You can use this information to generate scenario variants for performing safety assessments for various automated driving applications.

The function specifies the ego vehicle as a sedan in the returned scenario descriptor object, and fixes the dimensions of the sedan to [4.5556 1.9378 1.4538 0.8940 0.9483 2.7133] in the form [length width height frontOverhang rearOverhang wheelbase]. Units are in meters. For more information on actor dimensions, see Actor and Vehicle Positions and Dimensions.

More About

collapse all

Euro NCAP Test Scenario Information

This table lists the full names of Euro NCAP test scenarios, their corresponding ncapTestName values, their descriptions and their locations in the Euro NCAP test protocol document.

ncapTestNameEuro NCAP Test Scenario Full NameDescriptionEuro NCAP Test Protocol Document
"VRU AEB Crossing CPFA"

Vulnerable Road User Automatic Emergency Braking Crossing Car-to-Pedestrian Farside Adult

The ego vehicle moves forward toward an adult pedestrian running across its path from the farside, resulting in a collision between the front side of the ego vehicle and the pedestrian.

For more information on this test, see page 24 of the Euro NCAP Test Protocol document.
"VRU AEB Crossing CPNA"

Vulnerable Road User Automatic Emergency Braking Crossing Car-to-Pedestrian Nearside Adult

The ego vehicle moves forward toward an adult pedestrian walking across its path from the nearside, resulting in a collision between the front side of the ego vehicle and the pedestrian.

For more information on this test, see page 24 of the Euro NCAP Test Protocol document.
"VRU AEB Crossing CPNCO"

Vulnerable Road User Automatic Emergency Braking Crossing Car-to-Pedestrian Nearside Child Obstructed

The ego vehicle moves forward toward an child pedestrian walking across its path from the nearside, resulting in a collision between the front side of the ego vehicle and the pedestrian.

For more information on this test, see page 25 of the Euro NCAP Test Protocol document.
"VRU AEB Longitudinal CPLA"

Vulnerable Road User Automatic Emergency Braking Longitudinal Car-to-Pedestrian Longitudinal Adult

The ego vehicle moves forward toward an adult pedestrian walking in front, in the same direction, resulting in a collision between the front side of the ego vehicle and the pedestrian.

For more information on this test, see page 25 of the Euro NCAP Test Protocol document.
"VRU AEB Turning CPTAns"

Vulnerable Road User Automatic Emergency Braking Turning Car-to-Pedestrian Turning Adult nearside same

The ego vehicle moves forward toward an adult pedestrian crossing its path, starting in the same direction, walking across a junction from the nearside, resulting in a collision between the front side of the ego vehicle and the pedestrian.

For more information on this test, see page 27 of the Euro NCAP Test Protocol document.
"VRU AEB Turning CPTAno"

Vulnerable Road User Automatic Emergency Braking Car-to-Pedestrian Turning Adult nearside opposite

The ego vehicle moves forward toward an adult pedestrian crossing its path, starting in the opposite direction, walking across a junction from the nearside, resulting in a collision between the front side of the ego vehicle and the pedestrian.

For more information on this test, see page 27 of the Euro NCAP Test Protocol document.
"VRU AEB Turning CPTAfs"

Vulnerable Road User Automatic Emergency Braking Turning Car-to-Pedestrian Turning Adult farside same

The ego vehicle moves forward toward an adult pedestrian crossing its path, starting in the same direction, walking across a junction from the farside, resulting in a collision between the front side of the ego vehicle and the pedestrian.

For more information on this test, see page 26 of the Euro NCAP Test Protocol document.
"VRU AEB Turning CPTAfo"

Vulnerable Road User Automatic Emergency Braking Turning Car-to-Pedestrian Turning Adult farside opposite

The ego vehicle moves forward toward an adult pedestrian crossing its path, in the opposite direction, walking across a junction from the farside, resulting in a collision between the front side of the ego vehicle and the pedestrian.

For more information on this test, see page 27 of the Euro NCAP Test Protocol document.
"VRU AEB Reverse CPRs"

Vulnerable Road User Automatic Emergency Braking Reverse Car-to-Pedestrian Reverse stationary

The ego vehicle moves rearward toward an adult or child pedestrian standing still, resulting in a collision between the rear side of the ego vehicle and the pedestrian.

For more information on this test, see page 29 of the Euro NCAP Test Protocol document.
"VRU AEB Reverse CPRm"

Vulnerable Road User Automatic Emergency Braking Reverse Car-to-Pedestrian Reverse moving

The ego vehicle moves rearward toward an adult or child pedestrian walking from the nearside, resulting in a collision between the rear side of the ego vehicle and the pedestrian.

For more information on this test, see page 29 of the Euro NCAP Test Protocol document.
"VRU AEB Crossing CBFA"

Vulnerable Road User Automatic Emergency Braking Crossing Car-to-Bicyclist Farside Adult

The ego vehicle moves forward toward a bicyclist crossing its path cycling from the farside, resulting in a collision between the front side of the ego vehicle and the bicyclist.

For more information on this test, see page 30 of the Euro NCAP Test Protocol document.
"VRU AEB Crossing CBNA"

Vulnerable Road User Automatic Emergency Braking Crossing Car-to-Bicyclist Nearside Adult

The ego vehicle moves forward toward a bicyclist crossing its path cycling from the nearside, resulting in a collision between the front side of the ego vehicle and the bicyclist.

For more information on this test, see page 31 of the Euro NCAP Test Protocol document.
"VRU AEB Longitudinal CBLA"

Vulnerable Road User Automatic Emergency Braking Longitudinal Car-to-Bicyclist Longitudinal Adult

The ego vehicle moves forward toward a bicyclist cycling in front, in the same direction, resulting in a collision between the front side of the ego and the bicyclist.

For more information on this test, see page 32 of the Euro NCAP Test Protocol document.
"VRU AEB Turning CBTAn"

Vulnerable Road User Automatic Emergency Braking Turning Car-to-Bicyclist Turning Adult nearside

The ego vehicle turns toward a bicyclist crossing its path across a junction, cycling in the opposite direction, from the nearside, resulting in a collision between the front side of the ego and the bicyclist.

For more information on this test, see page 33 of the Euro NCAP Test Protocol document.
"VRU AEB Turning CBTAf"

Vulnerable Road User Automatic Emergency Braking Turning Car-to-Bicyclist Turning Adult farside

The ego vehicle turns toward a bicyclist crossing its path across a junction, cycling in the opposite direction, from the farside, resulting in a collision between the front side of the ego vehicle and the bicyclist.

For more information on this test, see page 33 of the Euro NCAP Test Protocol document.
"VRU AEB Longitudinal CMRs"

Vulnerable Road User Automatic Emergency Braking Longitudinal Car-to-Motorcyclist Reverse stationary

The ego vehicle moves forward toward a motorcyclist in front, traveling in the same direction. It results in a collision between the front side of the ego vehicle and the rear side of the motorcyclist.

For more information on this test, see page 36 of the Euro NCAP Test Protocol document.
"VRU AEB Longitudinal CMRb"

Vulnerable Road User Automatic Emergency Braking Longitudinal Car-to-Motorcyclist Reverse braking

The ego vehicle moves forward toward a motorcyclist in front, traveling in the same direction at a constant speed, which then decelerates, resulting in a collision between the front side of the ego and the rear side of the motorcyclist.

For more information on this test, see page 37 of the Euro NCAP Test Protocol document.
"VRU AEB Turning CMFtap"

Vulnerable Road User Automatic Emergency Braking Turning Car-to-Motorcyclist Front turn across path

The ego vehicle turns across the path of an oncoming motorcyclist that travels at a constant speed, resulting in a collision between the front side of the ego vehicle and the front side of the motorcyclist.

For more information on this test, see page 38 of the Euro NCAP Test Protocol document.
"VRU AEB Lateral CM Oncoming"

Vulnerable Road User Automatic Emergency Braking Lateral Car-to-Motorcyclist Oncoming

The ego vehicle drifts out of lane toward a motorcyclist traveling in the opposite direction, resulting in a collision between the front side of the ego vehicle and the front side of the motorcyclist.

For more information on this test, see page 39 of the Euro NCAP Test Protocol document.
"VRU AEB Lateral CM Overtaking unintentional"

Vulnerable Road User Automatic Emergency Braking Lateral Car-to-Motorcyclist Overtaking unintentional

The ego vehicle unintentionally overtakes a motorcyclist traveling in the same direction on a lane adjacent to the driver side of the ego vehicle.

For more information on this test, see page 41 of the Euro NCAP Test Protocol document.
"VRU AEB Lateral CM Overtaking intentional"

Vulnerable Road User Automatic Emergency Braking Lateral Car-to-Motorcyclist Overtaking intentional

The ego vehicle intentionally overtakes a motorcyclist traveling in the same direction on a lane adjacent to the driver side of the ego vehicle.

For more information on this test, see page 41 of the Euro NCAP Test Protocol document.

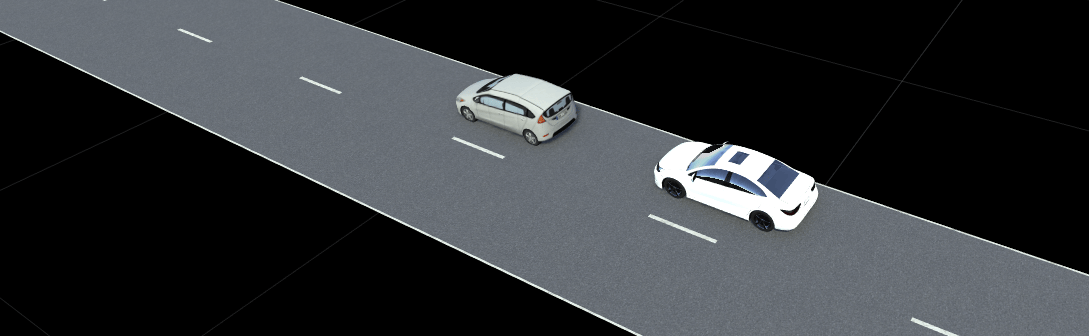

"SA AEB CCRs"

Safety Assist Automatic Emergency Braking Car-to-Car Rear stationary

The ego vehicle moves forward toward a stationary target vehicle, resulting in a collision between the front side of the ego and the rear side of the target.

For more information on this test, see page 16 of the Euro NCAP Test Protocol document.
"SA AEB CCRm"

Safety Assist Automatic Emergency Braking Car-to-Car Rear moving

The ego vehicle moves forward toward a target vehicle traveling at a constant speed, resulting in a collision between the front side of the ego and the rear side of the target.

For more information on this test, see page 17 of the Euro NCAP Test Protocol document.
"SA AEB CCRb"

Safety Assist Automatic Emergency Braking Car-to-Car Rear braking

The ego vehicle moves forward toward a target vehicle traveling at a constant speed, collides, and then decelerates, resulting in a collision between the front side of the ego and the rear side of the target.

For more information on this test, see page 17 of the Euro NCAP Test Protocol document.
"SA AEB CCFtap"

Safety Assist Automatic Emergency Braking Car-to-Car Front turn across path

The ego vehicle turns across the path of an oncoming target vehicle traveling at a constant speed, resulting in a head-on collision.

For more information on this test, see page 18 of the Euro NCAP Test Protocol document.
"SA AEB CCCscp"

Safety Assist Automatic Emergency Braking Car-to-Car Crossing straight crossing path

The ego and target vehicles move toward a junction on straight, perpendicular paths, resulting in a collision between the front side of the ego and one side of the target.

For more information on this test, see page 19 of the Euro NCAP Test Protocol document.
"SA AEB CCFhos"

Safety Assist Automatic Emergency Braking Car-to-Car Front head-on straight

The ego and target vehicles move toward each other on a same lane, resulting in a head-on collision.

For more information on this test, see page 22 of the Euro NCAP Test Protocol document.
"SA AEB CCFhol"

Safety Assist Automatic Emergency Braking Car-to-Car Front head-on lane change

The ego and target vehicles move toward each other, each traveling on different lanes. The target vehicle performs a lane change into the ego lane, resulting in a head-on collision.

For more information on this test, see page 22 of the Euro NCAP Test Protocol document.
"SA LSS LKA Solid Line"

Safety Assist Lane Support System Lane Keep Assist Solid Line

The ego vehicle drifts beyond a solid lane marking into the adjacent lane.

For more information on this test, see page 17 of the Euro NCAP Test Protocol document.
"SA LSS LKA Dashed Line"

Safety Assist Lane Support System Lane Keep Assist Dashed Line

The ego vehicle drifts beyond a dashed lane marking into the adjacent lane.

For more information on this test, see page 17 of the Euro NCAP Test Protocol document.
"SA LSS ELK Solid Line"

Safety Assist Lane Support System Emergency Lane Keeping Solid Line

The ego vehicle drifts beyond a solid lane marking into the adjacent lane.

For more information on this test, see page 15 of the Euro NCAP Test Protocol document.
"SA LSS ELK Road Edge"

Safety Assist Lane Support System Emergency Lane Keeping Road Edge

The ego vehicle drifts beyond a road edge, moving out of the road.

For more information on this test, see page 15 of the Euro NCAP Test Protocol document.
"SA LSS ELK Oncoming vehicle"

Safety Assist Lane Support System Emergency Lane Keeping Oncoming vehicle

The ego vehicle drifts towards an oncoming target into the adjacent lane.

For more information on this test, see page 15 of the Euro NCAP Test Protocol document.
"SA LSS ELK Overtaking vehicle intentional"

Safety Assist Lane Support System Emergency Lane Keeping Overtaking vehicle intentional

The ego vehicle intentionally overtakes a target traveling in the same direction on a lane adjacent to the driver side of the ego vehicle.

For more information on this test, see page 16 of the Euro NCAP Test Protocol document.
"SA LSS ELK Overtaking vehicle unintentional"

Safety Assist Lane Support System Emergency Lane Keeping Overtaking vehicle unintentional

The ego vehicle unintentionally overtakes a target vehicle traveling in the same direction on a lane adjacent to the driver side of the ego vehicle.

For more information on this test, see page 16 of the Euro NCAP Test Protocol document.

Version History

Introduced in R2024a
