addLateralHeight

Add lateral height variation to road

Since R2026a

collapse all in page

    Syntax

    addLateralHeight(road,longitudinalDistance,lateralDistance,height)
    addLateralHeight(road,longitudinalDistance,lateralDistance,height,LateralDistanceType=lateralDistanceType)

    Description

    addLateralHeight(road,longitudinalDistance,lateralDistance,height) adds the vertical elevation height to cross‑section of a specified road, road. The function adds or updates a cross‑section height node at the lateral distance lateralDistance and longitudinal distance longitudinalDistance on the road. If a node exists, the function updates its height. If no node exists, the function inserts a new cross-section node.

    example

    addLateralHeight(road,longitudinalDistance,lateralDistance,height,LateralDistanceType=lateralDistanceType) specifies the measurement method for the lateral distance.

    Examples

    collapse all

    This example uses:

    Open Live Script

    Create a RoadRunner scene with a horizontal road with multiple driving lanes, shoulder lanes, and crowned road geometry. Road crowning allows the road surface to slope outward from the centerline, which improves drainage and defines realistic roadway elevation across the lateral width of the road.

    Create a roadrunner object, specifying the path to an existing project. For example, this code shows the path to a project, on a Windows® machine, located at "C:\RR\MyProject". This code assumes that RoadRunner is installed in the default location, and returns an object, rrApp, that provides functions for performing basic tasks such as opening, closing, and saving scenes and projects.

    rrApp = roadrunner(ProjectFolder="C:\RR\MyProject");

    Note: If you are opening RoadRunner from MATLAB® for the first time, or if you have changed the RoadRunner installation location since you last opened it from MATLAB, you can use the roadrunnerSetup (RoadRunner) function to specify new default project and installation folders to use when opening RoadRunner. You can save these folders between MATLAB sessions by selecting the Across MATLAB sessions option from the corresponding drop down.

    Create a new RoadRunner scene in the current project by using the newScene function, specifying the roadrunner object rrApp.

    newScene(rrApp);

    Create a roadrunnerAPI object, rrApi, that references the object for the current RoadRunner instance rrApp. The rrApi object enables you to programmatically author scenes, such as by adding and modifying road and lane components, using MATLAB.

    rrApi = roadrunnerAPI(rrApp);

    Extract the object for your scene from the Scene property of the authoring API object rrApi. The extracted Scene object enables you to specify the scene in which to add scene elements such as roads and lanes.

    scn = rrApi.Scene;

    Extract the Project object for your RoadRunner project from the Project property of the authoring API object rrApi. The extracted Project object enables you to specify the project folder for the current RoadRunner session from which to retrieve asset objects. You can use the asset objects to assign markings to the lanes in your scene.

    prj = rrApi.Project;

    Add a horizontal road 500 meters in length to the scene by using the addLineArcRoad function. Specify the position of the road by specifying the positions of its control points along the X- and Y-axes of the RoadRunner local coordinate system. These control points define the positions of the start and end of the road. You can modify the positions of the control points to adjust the length and direction of the road relative to the scene origin. You can also add control points between the start and end points of the line-arc curve to adjust the curvature and radius of the road curve.

    rrHorizontalRoad = addLineArcRoad(scn,[0 0; 500 0]);

    Extract the reference lane of the road from the ReferenceLane property of the road object rrHorizontalRoad. The reference lane defines the center lane, or reference line, of a road in a RoadRunner scene. This lane has no width and serves as the basis for positioning all other lanes, which RoadRunner arranges outward from the reference line.

    refLane = rrHorizontalRoad.ReferenceLane;

    Use the getAsset (RoadRunner Scenario) function to extract lane marking style objects, which represent the DashedSingleWhite.rrlms and SolidSingleWhite.rrlms assets, from the project prj. Use these assets to mark the reference lane of the road. You can also use these assets to assign lane‑marking styles to other driving and shoulder lanes.

    dashedWhiteMarkingStyle = prj.getAsset("<PROJECT>/Assets/Markings/DashedSingleWhite.rrlms","LaneMarkingStyle");
solidWhiteMarkingStyle  = prj.getAsset("<PROJECT>/Assets/Markings/SolidSingleWhite.rrlms","LaneMarkingStyle");
RferenceLaneSpan = refLane.LaneMarkingProfile.Spans(1);
ReferenceLaneSpan.LaneMarkingStyle = dashedWhiteMarkingStyle;

    Add three driving lanes to the left of the reference lane by using the addLaneToLeft function. For each lane, specify the lane type and travel direction using the LaneType and TravelDirection properties. Assign the appropriate marking style for each lane by modifying the first span of the marking profile of each lane.

    leftLane1 = addLaneToLeft(refLane);
leftLane1.LaneType = "driving";
leftLane1.TravelDirection = "backward";
leftLane1.LaneMarkingProfile.Spans(1).LaneMarkingStyle = solidWhiteMarkingStyle;

leftLane2 = addLaneToLeft(refLane);
leftLane2.LaneType = "driving";
leftLane2.TravelDirection = "backward";
leftLane2.LaneMarkingProfile.Spans(1).LaneMarkingStyle = dashedWhiteMarkingStyle;

leftLane3 = addLaneToLeft(refLane);
leftLane3.LaneType = "driving";
leftLane3.TravelDirection = "backward";
leftLane3.LaneMarkingProfile.Spans(1).LaneMarkingStyle = dashedWhiteMarkingStyle;

    Add three driving lanes to the right of the reference lane by using the addLaneToRight function. Also configure the lane type and travel direction, then assign dashed or solid marking styles to the outer boundaries of each lane.

    rightLane1 = addLaneToRight(refLane);
rightLane1.LaneType = "driving";
rightLane1.TravelDirection = "forward";
rightLane1.LaneMarkingProfile.Spans(1).LaneMarkingStyle = solidWhiteMarkingStyle;

rightLane2 = addLaneToRight(refLane);
rightLane2.LaneType = "driving";
rightLane2.TravelDirection = "forward";
road.ReferenceLane.LaneMarkingProfile.Spans(1).LaneMarkingStyle = dashedWhiteMarkingStyle;
rightLane2.LaneMarkingProfile.Spans(1).LaneMarkingStyle = dashedWhiteMarkingStyle;

rightLane3 = addLaneToRight(refLane);
rightLane3.LaneType = "driving";
rightLane3.TravelDirection = "forward";
rightLane3.LaneMarkingProfile.Spans(1).LaneMarkingStyle = dashedWhiteMarkingStyle;

    Now, add shoulder lanes to the outermost driving lanes. Use the addLaneToLeft and addLaneToRight functions to place a shoulder lane on each side. Set their lane types to "shoulder", and define their width profiles by specifying the WidthProfile nodes.

    endLane1 = addLaneToLeft(leftLane1);
endLane1.LaneType = "shoulder";
endLane1WidthProfile = endLane1.WidthProfile;
endLane1WidthProfile.Nodes(1).EndWidth   = 1.75;
endLane1WidthProfile.Nodes(2).StartWidth = 1.75;

endLane2 = addLaneToRight(rightLane1);
endLane2.LaneType = "shoulder";
endLane2WidthProfile = endLane2.WidthProfile;
endLane2WidthProfile.Nodes(1).EndWidth   = 1.75;
endLane2WidthProfile.Nodes(2).StartWidth = 1.75;

    Define the crowned elevation of the road surface by using the addLateralHeight function. Specify a 1.5 meter crown height at the reference line, decreasing to 0 meters at 10.5 meters laterally. This creates a crown at the centerline that decreases toward the outer shoulder lanes. Create crown definitions at both the start and end of the road to ensure smooth interpolation along the entire alignment.

    addLateralHeight(rrHorizontalRoad,0,[0 10.5],[1.5 0]);
addLateralHeight(rrHorizontalRoad,500,[0 10.5],[1.5 0]);

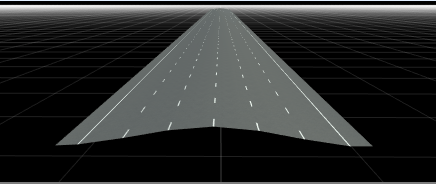

    RoadRunner scene with a multilane road with crowned geometry

    Input Arguments

    collapse all

    Road to which to add the height variation, specified as a Road object.

    Distance along the road reference line at which to add or update a cross‑section height node, in meters, specified as a numeric scalar or vector. You must specify a distance value within the range (0, N), where N is the total length of the road.

    Data Types: single | double

    Distance across the road width at which to add the cross‑section height node, in meters, specified as a numeric scalar or vector. The value of the lateralDistanceType argument determines how RoadRunner interprets this distance.

    • "offset-based" — The lateralDistance value is an offset measured orthogonally from the road reference line, where negative values represent positions on left side and positive values represent positions on the right side of the reference line. In this case, you must specify lateralDistance value in the range (— W/2, W/2), where W is the total width of the road.

    • "width-based" — The lateralDistance value is the linear distance measured from the left edge of the road. In this case, you must specify a lateralDistance value in the range (0, W), where W is the total width of the road.

    Data Types: single | double

    Height of the cross-section node at the specified lateral and longitudinal distances, specified as a as a numeric scalar or vector. The size of this argument must match the size of lateralDistance argument.

    Data Types: single | double

    Measurement method for the lateral distance, specified as one of these options:

    • "offset-based" — The function interprets lateralDistance as an offset measured orthogonally from the road reference line, where negative values represent positions on the left side and positive values represent positions on the right side of the reference line.

    • "width-based" — The function interprets lateralDistance as a linear distance measured from the left edge of the road.

    Data Types: char | string

    Version History

    Introduced in R2026a
