Solve Matrix Equation Using Backward Substitution
Solve a matrix equation using the Backward Substitution block.

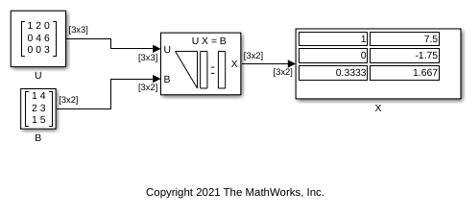

Open and run the model. The model solves the equation using the Backward Substitution block. The block accepts
and
matrices as inputs, and outputs the solution matrix
.
You can verify the solution by using the Matrix Multiply block to perform the multiplication , as shown in following model. The output matrix
in this model equals the input matrix
in the previous model.
