Estimate Vector Autoregression Model Using Econometric Modeler App

This example models the quarterly US GDP growth rate, M1 money supply rate, and the 3-month T-bill rate series by using the Econometric Modeler app. The example performs the following actions in the app:

  1. Stabilize the raw nonstationary series.

  2. Fit several completing vector autoregression (VAR) models, and choose the one with the best, parsimonious fit.

  3. Diagnose each residual series.

  4. Export the chosen model to the command line.

At the command line, the example conducts Granger-causality tests on the series given the estimated model, and it uses the model to generate forecasts.

The data set, which is stored in Data_USEconModel.mat, contains the raw, quarterly US GDP, M1 money supply, and 3-month T-bill rate, among other series, from 1947 through 2009.

Load and Import Data into Econometric Modeler

At the command line, load the Data_USEconModel.mat data set.

load Data_USEconModel

At the command line, open the Econometric Modeler app.

econometricModeler

Alternatively, open the app from the apps gallery (see Econometric Modeler).

Import DataTable into the app:

  1. On the Econometric Modeler tab, in the Import section, click .

  2. In the Import Data dialog box, in the Import? column, select the check box for the DataTable variable.

  3. Click Import.

GDP, M1SL, and TB3MS, among other series, appear in the Time Series pane, and a time series plot containing all series appears in the figure window.

Create separate time series plots by double-clicking each of GDP, M1SL, and TB3MS in the Time Series pane. Position the Time Series Plot(series) tabs by clicking and dragging each to see all plots simultaneously.

Separate time series plots of the raw US GDP, M1 money supply, and 3-month T-Bill rate

The US GDP and M1 money supply series exhibit exponential growth, and the 3-month T-Bill series appears like a random walk.

Diagnose and Transform Series

Remove the exponential trend from the GDP and M1 money supply series by applying the log transform to each series. Click the Econometric Modeler tab, and then, in the Time Series pane, click GDP and Ctrl click M1SL. In the Transforms section, click Log. The transformed series GDPLog and M1SLLog appear in the Time Series pane, and their time series plot appears in the Time Series Plot(GDPLog) figure window.

Plot of the log of the raw US GDP and M1 money supply series

Test the null hypothesis that each series is a unit root process against a stationary AR(p) with drift alternative, where p = 4 through 1. For each series GDPLog, M1SL, and TB3MS:

  1. On the Econometric Modeler tab, in the Time Series pane, click the series.

  2. On the Econometric Modeler tab, in the Time Series section, click New Test > Augmented Dickey-Fuller Test.

  3. On the ADF tab, in the Parameters section, in the Number of Lags box, type 4.

  4. In the Tests section, Click Run.

  5. Repeat steps 3 and 4 for lags 3, 2, and 1.

The following figures show the results. The tests fail to reject the null hypotheses of a unit root series in all cases, which suggests that each series is difference stationary.

Augmented Dickey-Fuller test result tables for each series

Stabilize the series by applying the first difference to each series.

  1. Click the Econometric Modeler tab, and then, in the Time Series pane, click GDPLog and Ctrl click M1SLLog and TB3MS.

  2. In the Transforms section, click Difference. The transformed series GDPLogDiff, M1SLLogDiff, and TB3MSDiff appear in the Time Series pane, and their time series plot appears in the Time Series Plot(GDPLogDiff) figure window.

  3. Rename GDPLogDiff and M1SLLogDiff to GDPRate and M1SLRate by clicking on their names twice in the Time Series pane, and typing their new names.

Estimate VAR Models

Estimate 3-D VAR(p) models of the US quarterly GDP growth rate series GDPRate, M1 money supply growth rate series M1SLRate, and change in the 3-month treasury bill rate series TB3MSDiff, where p = 1 through 4.

  1. In the Time Series pane, click GDPLog and Ctrl click M1SLLog and TB3MS.

  2. In the Models section, click VAR.

  3. Fit a VAR(1) model (the default) by clicking Estimate in the VAR Model Parameters dialog box.

    VAR Model Parameters dialog box set to fit a VAR(1) model

    The model variable VAR appears in the Models pane, its value appears in the Preview pane, and its estimation summary appears in the Model Summary(VAR) document.

  4. Repeat steps 1 and 2 for each AR order p = 2 through 4. In the Var Model Parameters dialog, set the AR order by using the Autoregressive Order box.

    Similar to the VAR(1) estimation, a variable for each model (VAR2, VAR3, and VAR4) appears in the appears in the Models pane, and their estimation summaries appear in their respective Model Summary(ModelName) document. You can view properties of an estimated model in the Preview pane by clicking the model in the Models pane. For example, click VAR4.

    Object display of model VAR4

Select Model With Best In-Sample Fit

The estimation summary in each Model Summary(VARp) tab contains a plot of fitted values and residuals, with respect to the time series in the Time Series list, a standard statistical table of estimates and inferences, and a table of information criteria.

Compare the information criteria of each estimated model simultaneously by positioning the estimation summary documents so that they occupy the four quadrants of the right pane. The model with the lowest value has the best, parsimonious fit.

All estimation summaries occupying the four quadrants of the right pane

The VAR(2) model VAR2 produces the lowest AIC and BIC values. Choose this model for further analysis.

Check Goodness of Fit

Inspect the following VAR(2) plots of each residual series:

  • Histograms, for center, normality, and outliers

  • Quantile-quantile plots, for normality, skewness, and tails

  • Autocorrelation function (ACF), for serial correlation

  • ACF of squared residual series, for heteroscedasticity

This example diagnoses the residuals visually. Alternatively, you can conduct statistical tests to diagnose the residuals.

In the Model Summary(VAR2) document, click Document Actions > Tile All, and then click the Single radio button.

All estimation summaries occupying the four quadrants of the right pane

On the Models pane, click VAR2.

Plot separate residual histograms. On the Econometric Modeler tab, in the Diagnostics section, click Residual Diagnostics > Residual Histogram. Histograms of the each residual series appear in the Histogram(VAR2) document.

Histograms of each residual series

Each residual series appears centered around 0, with varying degrees of slight skewness and possible outliers. This example proceeds without addressing possible skewness and outliers.

Plot separate residual quantile-quantile plots. With VAR2 selected in the Time Series pane, on the Econometric Modeler tab, in the Diagnostics section, click Residual Diagnostics > Residual Q-Q Plot. Quantile-quantile plots of the each residual series appear in the QQPlot(VAR2) document.

Quantile-quantile plots of each residual series

Each series has slightly fatter tails than what is expected by the normal distribution. This example proceeds without addressing possible kurtosis.

Plot separate ACF plots of each residual series. With VAR2 selected in the Time Series pane, on the Econometric Modeler tab, in the Diagnostics section, click Residual Diagnostics > Autocorrelation Function. ACF plots of the each residual series appear in the ACF(VAR2) document.

ACF plots of each residual series

Each series has several significant, albeit small, autocorrelations. For example, the GDPRate residual series has significant autocorrelations at lags 4 and 16, and the M1SLRate and TB3MSDiff quarterly difference series both have significant autocorrelations at lags 7. To address the autocorrelations, you can include higher AR lags in the VAR model for estimation, but this example proceeds without addressing the autocorrelations this way.

Plot separate ACF plots of each squared residual series. With VAR2 selected in the Time Series pane, on the Econometric Modeler tab, in the Diagnostics section, click Residual Diagnostics > Squared Residual Autocorrelation. ACF plots of the each squared residual series appear in the ACF(VAR2)2 document.

ACF plots of each squared residual series

The M1SLRate and TB3MSDiff series have significant autocorrelations, which suggests that heteroscedasticity is present. This example proceeds without addressing possible heteroscedasticity.

Export Model to Workspace

Export the model to the workspace.

  1. With the VAR2 model selected in the Models pane, on the Econometric Modeler tab, in the Export section, click Export > Export Variables.

  2. In the Export Variables dialog box, select the Select check box the GDPRate, M1SLRate, and TB3MSDiff.

  3. Click Export.

The variables GDPRate, M1SLRate, TB3MSDiff, and VAR2 appear in the workspace.

Conduct Causality Analysis at Command Line

Determine whether series in the system Granger-cause the other series by conducting 1-step, leave-one-out Granger-causality tests. Pass the estimated VAR(2) model to gctest.

gctest(VAR2)
                          H0                                Decision         Distribution    Statistic      PValue      CriticalValue
    _______________________________________________    __________________    ____________    _________    __________    _____________

    "Exclude lagged M1SLRate in GDPRate equation"      "Reject H0"            "Chi2(2)"        8.3934       0.015045       5.9915
    "Exclude lagged TB3MSDiff in GDPRate equation"     "Reject H0"            "Chi2(2)"        16.924     0.00021133       5.9915
    "Exclude lagged GDPRate in M1SLRate equation"      "Cannot reject H0"     "Chi2(2)"        3.1528        0.20672       5.9915
    "Exclude lagged TB3MSDiff in M1SLRate equation"    "Reject H0"            "Chi2(2)"        20.855     2.9608e-05       5.9915
    "Exclude lagged GDPRate in TB3MSDiff equation"     "Reject H0"            "Chi2(2)"        20.565     3.4229e-05       5.9915
    "Exclude lagged M1SLRate in TB3MSDiff equation"    "Cannot reject H0"     "Chi2(2)"       0.41428        0.81291       5.9915

The null hypothesis of the 1-step leave-one-out Granger-causality test is that a series does not 1-step Granger-cause another series, conditioned on all other series being present in the system. The results suggest:

  • Given that the 3-month T-bill change is in the system, enough evidence exists to suggest that M1 money supply rate 1-step Granger-causes the GDP rate.

  • Given that the M1 money supply rate is in the system, enough evidence exists to suggest that the 3-month T-bill change 1-step Granger-causes the GDP rate.

  • Given that the 3-month T-bill change is in the system, not enough evidence exists to suggest that the GDP rate 1-step Granger-causes the M1 money supply rate.

  • Given that the GDP rate is in the system, enough evidence exists to suggest that the 3-month T-bill change 1-step Granger-causes the M1 money supply rate.

  • Given that the M1 money supply rate is in the system, enough evidence exists to suggest that the GDP rate 1-step Granger-causes the 3-month T-bill change.

  • Given that the GDP rate is in the system, not enough evidence exists to suggest that the 1-step M1 money supply rate Granger-causes the 3-month T-bill change.

Generate Forecasts at Command Line

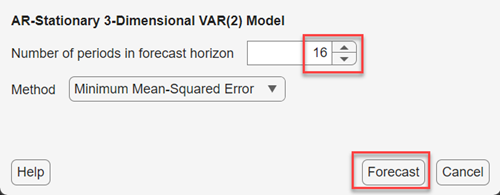

Generate forecasts and approximate 95% forecast intervals from the estimated VAR(2) model for the next four years (16 quarters). For convenience, use the entire series as a presample for the forecasts (forecast discards all specified presample observations except for the required final two observations).

Y = [GDPRate M1SLRate TB3MSDiff];
[YF,YFMSE] = forecast(VAR2,16,Y);
YFSE = cell2mat(cellfun(@(x)sqrt(diag(x)'),YFMSE,UniformOutput=false));
UB = YF + 1.96*YFSE;
LB = YF - 1.96*YFSE;
datesF = DataTable.Time(end) + calquarters(1:16);

figure
tiledlayout(3,1)
for j = 1:VAR2.NumSeries
    nexttile
    h1 = plot(DataTable.Time(end-30:end),Y0(end-30:end,j),Color=[.75,.75,.75]);
    hold on
    h2 = plot(datesF,YF(:,j),"r",LineWidth=2);
    h3 = plot(datesF,UB(:,j),"k--",LineWidth=1.5);
    plot(datesF,LB(:,j),"k--",LineWidth=1.5);
    ct = [Y0(end,j) YF(1,j); Y0(end,j) LB(1,j); Y0(end,j) UB(1,j);];
    plot([DataTable.Time(end); datesF(1)],ct,Color=[.75,.75,.75])
    legend([h1 h2 h3],VAR2.SeriesNames(j),"Forecast", ...
       "Forecast Interval",Location="northwest")
    hold off
end

Separate time series plots of each series and forecasts generated from the VAR(2) model
