Create Predefined and Custom Fault Behaviors

Fault behaviors are the behaviors you assign to the faults into your model. You can use predefined or custom fault behaviors by modeling the behavior inside a Fault Subsystem block. If you want to reuse your custom fault behaviors, you can create libraries to store the new behaviors.

Add Predefined Fault Behaviors

You can assign fault behaviors to faults when you create them or add them to existing faults. Simulink® Fault Analyzer™ comes with a built-in list of example fault behaviors that you can select and stores the predefined behaviors in a library file, mwfaultlib.slx. You can use these fault behaviors as-is for scalar double signals.

Inspect the Default Fault Behavior Library

To open the library that stores the predefined fault behaviors, navigate to \matlab\toolbox\safety\block_libraries and open the default fault behavior library, mwfaultlib.slx.

The predefined library. The library contains eight Fault Subsystem blocks. Each subsystem corresponds to the built-in behaviors that you can add to faults.

You cannot modify this library.

Add Built-In Behaviors to Faults

To create a fault and assign fault behavior to it:

  1. Select the signal.

  2. In the Apps tab, select Fault Analyzer.

  3. In the Fault Analyzer tab, in the Prepare Faults section, click Add Fault. The Create Fault window opens.

  4. Select Add fault behavior.

  5. Set the Fault library property to mwfaultlib.

  6. Select the fault behavior from the Fault behavior property and click OK.

To add behavior to existing faults that do not have assigned behavior:

  1. Click the fault badge where the fault is added.

  2. Click the Add fault behavior icon in the preview window. The Add Fault Behavior window opens.

  3. In the Add Fault Behavior window, set the Fault library property to mwfaultlib and select the fault behavior from the Fault behavior property. Click OK.

You can also create fault behaviors from the Fault Table pane:

  1. Open the Fault Table pane. In the Fault Analyzer tab, in the View section, click Fault Table.

  2. Right-click the fault and click Properties.

  3. In the Property Inspector, click Add fault behavior.

You cannot add fault behavior to a fault that already has fault behavior.

Open Assigned Fault Behaviors

When you add fault behavior to a fault, a Fault Subsystem block contains the assigned fault behavior. These blocks are stored in a model called the fault model. To view the assigned fault behaviors, open the fault model by using one of these approaches:

  • Click the fault badge , then click the fault behavior preview window. When the fault model is not loaded, the preview window displays the Open fault behavior icon for each fault behavior.

  • Open the Fault Table pane. Expand the model elements in the Name column to see the faults. Right-click the fault and select Open fault behavior.

For example, add a fault to a model, use the built-in library, and set Select fault behavior to Add Noise. This fault behavior adds noise to the signal. Open the Fault Subsystem block to inspect the blocks that model the fault behavior. Fault Subsystem blocks include one Fault Inport and Fault Outport block that indicate where the signal enters and exits the subsystem, respectively.

This shows the fault behavior. When enabled, it injects noise into the model signal.

After creating a behavior, you can modify the blocks in the subsystem. If you set Fault behavior to Custom fault behavior, the Fault Subsystem block contains only the Fault Inport and Fault Outport blocks.

This shows the Fault Subsystem block if you select custom fault behavior. You can define the behavior with blocks linked between the Fault Inport and Fault Outport blocks.

You must add blocks and signals to model the custom behavior.


Fault Subsystem blocks associated with faults on block input or output ports must have only one Fault Input and one Fault Outport block.

Trace Fault Behaviors to Assigned Faults

You can trace fault behaviors to their assigned faults. When you trace fault behaviors, the model highlights the associated model element and affected signals.

To trace fault behavior, use one of these approaches:

  • In the fault model, click the Fault Subsystem block. In the Fault Subsystem tab, in the Fault section, click Trace to Fault Source.

  • Open the Fault Subsystem block. Select either the Fault Inport or Fault Outport block. In the Fault Port tab, in the Fault section, click Trace to Fault Source.

  • In the fault model, on the block mask of a Fault Subsystem block, double-click the Fault properties button . In the Property Inspector, click Trace to Fault Source.

Multiple models can use the same fault model. To trace fault behaviors from a different model, load each model that contains the faults.

Customize Fault Behaviors by Using Libraries

The Fault behavior property lists the fault behaviors in the library you select. This list depends the library you select in the Fault library property. If you want to create a new list in the Select fault behavior property, you must create a new library.


If you assign a behavior to a fault from the default library, Simulink Fault Analyzer creates a copy of the subsystem in the fault model that you can modify. If you assign behavior from a custom library, Simulink Fault Analyzer creates a linked copy of the subsystem in the fault model that you can only modify in the custom library.

Register Custom Fault Behaviors with Functions

To add custom fault behaviors to the Fault behavior property, create a custom library and register the fault behaviors:

  1. Create an empty Simulink model or library and save it on the path.

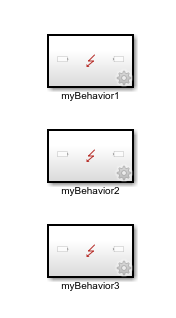

  2. In the library or model, add a Fault Subsystem block from the Simulink Fault Analyzer library. Only include Fault Subsystem blocks. Once you add a Fault Subsystem block, you cannot open Simulink Fault Analyzer.

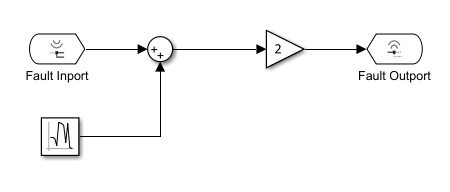

  3. Open the Fault Subsystem block. Add blocks that model your desired fault behavior. Connect the blocks to the Fault Inport and Fault Outport blocks.

  4. Save the library.

  5. Use the Simulink.fault.libraries function to register the library. For example, to register a library in the working folder named myLibrary, enter this command in the Command Window:

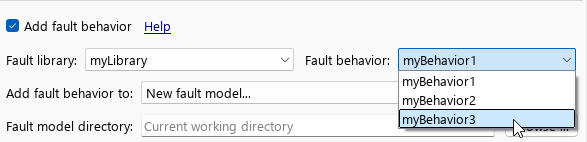

The name you assign to each Fault Subsystem block in the custom library is the name that appears in the Fault behavior property. To ensure compatibility, use the allowable characters for subsystem names. See jc_0231: Usable characters for block names and jc_0243: Length restriction for subsystem names.

After creating the custom library, you can export it like any other library file. You can copy the library to a directory on the path for other users.

To unregister the custom library, use the Simulink.fault.unregisterLibrary function.


Register Libraries with sl_customization Functions

You can also register custom libraries by using an sl_customization function. The sl_customization function runs when you load MATLAB® or enter sl_refresh_customizations in the Command Window. For more information, see Register Customizations with Simulink. To register custom libraries with sl_customization, save the library and create an sl_customization.m file on the same path. For example, to register a library named customFaultLib, create a function named sl_customization.m that includes this code:

function sl_customization(cm)
  cObj = cm.SimulinkFaultCustomizer;

In this example, the code unregisters the custom libraries with the clearCustomFaultLibraries function, and then registers the customFaultLib library with addCustomFaultLibrary function. The input argument of addCustomFaultLibrary must be a string scalar or character vector that contains the name of your library.

You can copy the library and sl_customization.m to a directory on the path for other users. To unregister specific libraries, use the removeCustomFaultLibrary function. For example, to unregister customFaultLib, enter this code into the sl_customization function:

function sl_customization(cm)
  cObj = cm.SimulinkFaultCustomizer;
