Derive Ranges for Simulink.Parameter Objects

This example shows how the range analysis takes into account design range information for Simulink.Parameter objects unless the parameter storage class is set to Auto. If the parameter storage class is set to Auto, the analysis uses the value of the parameter.

Open the ex_derived_min_max_3 Model

open_system("ex_derived_min_max_3.slx")

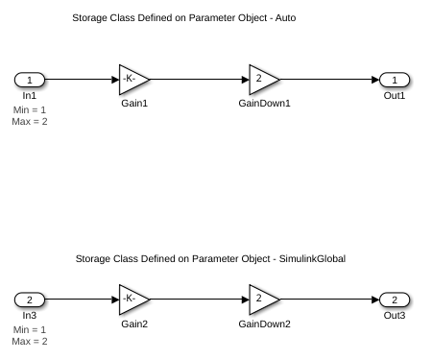

The model displays the specified design minimum and maximum values for the Inport blocks. The design range for both Inport blocks is [1...2].

To display design ranges in your model, in the Debug tab, select Information Overlays > Signal Data Ranges.

Examine Gain Parameters

1. Double-click each Gain block and note the name of the Gain parameter on the Main tab.

   Gain Block	Gain Parameter
   Gain1	paramObjOne
   Gain2	paramObjTwo

2. In the Modeling tab, expand the Design gallery and select Model Explorer.

3. In Model Explorer window, select the base workspace and view information for each of the gain parameters used in the model.

   Gain Parameter	Type Information	Value	Storage Class
   paramObjOne	Simulink.Parameter object	2	Auto
   paramObjTwo	Simulink.Parameter object	2	Model default

Derive Ranges

1. From the Simulink^® Apps tab, select Fixed-Point Tool.

2. In the Fixed-Point Tool, under New workflow, select Iterative Fixed-Point Conversion.

3. In the Fixed-Point Tool, under System Under Design (SUD), select ex_derived_min_max_3 as the system you want to convert.

4. Under Range Collection Mode, select Derived ranges.

5. Click the Collect Ranges button.

   When the analysis is finished, the Fixed-Point Tool displays the derived minimum and maximum values for the blocks in the model in the spreadsheet.

   Block	Derived Range	Reason
   Gain1	[2..4]	The gain parameter, paramObjOne, specified on Gain block Gain1 is a Simulink.Parameter object that has its storage class specified as Auto. The range analysis uses the Value property of the Simulink.Parameter object, whose value is 2, and ignores the design range specified for these parameters.
   Gain2	[1..20]	The gain parameter, paramObjTwo, specified on Gain block Gain2 is a Simulink.Parameter object that has its storage class specified as Model default. The range analysis takes into account the design range, [1..10], specified for this parameter.
