This example shows how to use a hybrid scheme to optimize a function using the genetic algorithm and another optimization method. `ga`

can quickly reach a neighborhood of a local minimum, but it can require many function evaluations to achieve convergence. To speed the solution process, first run `ga`

for a small number of generations to approach an optimum point. Then use the solution from `ga`

as the initial point for another optimization solver to perform a faster and more efficient local search.

This example uses Rosenbrock's function (also known as Dejong's second function) as the fitness function:

$$f(x)=100(x(2)-x(1{)}^{2}{)}^{2}+(1-x(1){)}^{2}$$.

Rosenbrock's function is notorious in optimization because of the slow convergence most methods exhibit when trying to minimize this function. Rosenbrock's function has a unique minimum at the point x* = (1,1), where it has a function value $$f({x}^{*})=0$$.

The code for Rosenbrock's function is in the `dejong2fcn`

file.

`type dejong2fcn.m`

function scores = dejong2fcn(pop) %DEJONG2FCN Compute DeJongs second function. %This function is also known as Rosenbrock's function % Copyright 2003-2004 The MathWorks, Inc. scores = zeros(size(pop,1),1); for i = 1:size(pop,1) p = pop(i,:); scores(i) = 100 * (p(1)^2 - p(2)) ^2 + (1 - p(1))^2; end

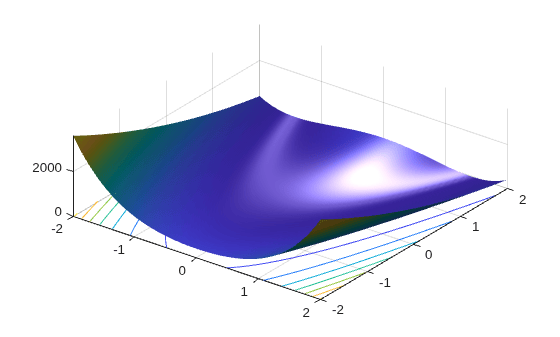

Plot Rosenbrock's function over the range –2 <= x(1) <= 2; –2 <= x(2) <=2.

plotobjective(@dejong2fcn,[-2 2;-2 2]);

First, use `ga`

alone to find the minimum of Rosenbrock's function.

FitnessFcn = @dejong2fcn; numberOfVariables = 2;

Include plot functions to monitor the optimization process.

`options = optimoptions(@ga,'PlotFcn',{@gaplotbestf,@gaplotstopping});`

Set the random number stream for reproducibility, and run `ga`

using the options.

```
rng default
[x,fval] = ga(FitnessFcn,numberOfVariables,[],[],[],[],[],[],[],options)
```

Optimization terminated: average change in the fitness value less than options.FunctionTolerance.

`x = `*1×2*
0.3454 0.1444

fval = 0.4913

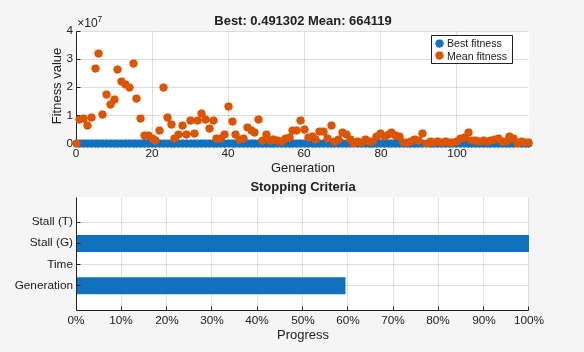

Using the default stopping criteria, `ga`

does not provide a very accurate solution. You can change the stopping criteria to try to find a more accurate solution, but `ga`

requires many function evaluations to approach the global optimum x* = (1,1).

Instead, perform a more efficient local search that starts where `ga`

stops by using the hybrid function option in `ga`

.

A hybrid function begins from the point where `ga`

stops. Hybrid function choices are `fminsearch`

, `patternsearch`

, or `fminunc`

. Because this optimization example is smooth and unconstrained, use `fminunc`

as the hybrid function. Provide `fminunc`

with plot options as an additional argument when specifying the hybrid function.

fminuncOptions = optimoptions(@fminunc,'PlotFcn',{'optimplotfval','optimplotx'}); options = optimoptions(options,'HybridFcn',{@fminunc, fminuncOptions});

Run `ga`

again with `fminunc`

as the hybrid function.

[x,fval,exitflag,output] = ga(FitnessFcn,numberOfVariables,[],[],[],[],[],[],[],options)

Optimization terminated: average change in the fitness value less than options.FunctionTolerance.

Local minimum found. Optimization completed because the size of the gradient is less than the value of the optimality tolerance.

`x = `*1×2*
1.0000 1.0000

fval = 1.7215e-11

exitflag = 1

`output = `*struct with fields:*
problemtype: 'unconstrained'
rngstate: [1x1 struct]
generations: 51
funccount: 2534
message: 'Optimization terminated: average change in the fitness value less than options.FunctionTolerance....'
maxconstraint: []
hybridflag: 1

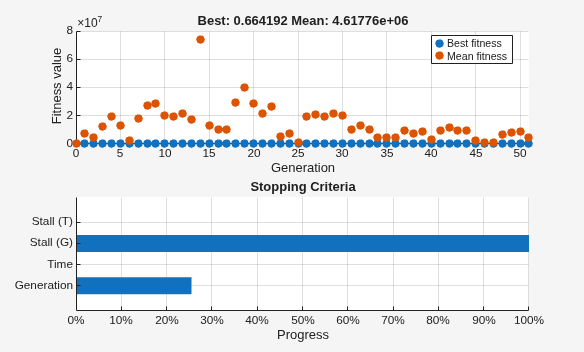

The `ga`

plot shows the best and mean values of the population in every generation. The plot title identifies the best value found by `ga`

when it stops. The hybrid function `fminunc`

starts from the best point found by `ga`

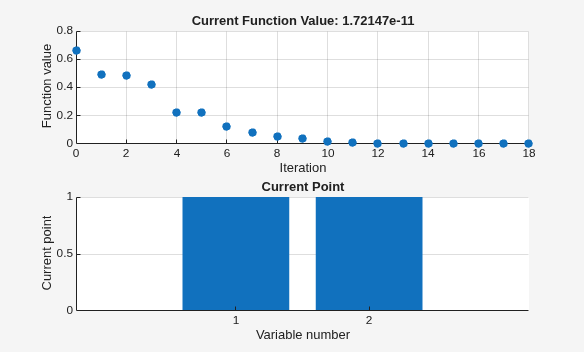

. The `fminunc`

plot shows the solution `x`

and `fval`

, which result from using `ga`

and `fminunc`

together. In this case, using a hybrid function improves the accuracy and efficiency of the solution. The `output.hybridflag`

field shows that `fminunc`

stops with exit flag 1, indicating that `x`

is a true local minimum.
