Get handle to axes in Slice Viewer



hAx = getAxesHandle(s) returns the axes in the Slice Viewer s.


collapse all

Load MRI data into the workspace.

load mristack

Create a display panel used to display the slices and the slider.

ViewPnl = uipanel(figure,'Title','Z-Direction Slices of MRI');

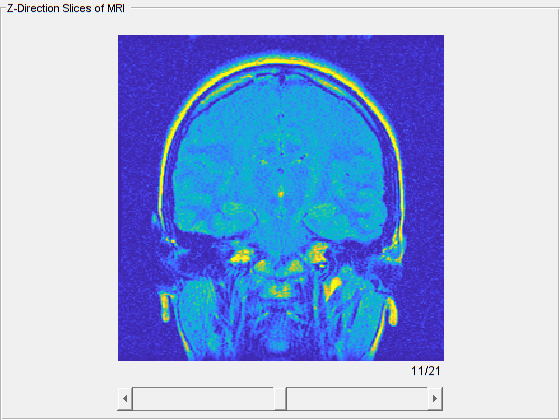

View the data in the slice viewer, specifying a custom colormap for viewing the slices. The slice viewer opens the stack of images and displays the one in the middle. Use the slider to view a different slice.

cmap = parula(256);
s = sliceViewer(mristack,'Colormap',cmap,'Parent',ViewPnl);

Get the handle to the axes that contains the image slices in the slice viewer.

hAx = getAxesHandle(s)
hAx =
  Axes with properties:

             XLim: [0.5000 256.5000]
             YLim: [0.5000 256.5000]
           XScale: 'linear'
           YScale: 'linear'
    GridLineStyle: '-'
         Position: [120 57.5000 320 320]
            Units: 'pixels'

  Show all properties

Input Arguments

collapse all

Slice Viewer, specified as a sliceViewer object.

Output Arguments

collapse all

Axes in Slice Viewer, returned as an Axes object.

Version History

Introduced in R2019b
