# isEdgeManifold

Check if surface mesh is edge-manifold

Since R2022b

## Syntax

``TF = isEdgeManifold(mesh,allowBoundaryEdges)``

## Description

example

````TF = isEdgeManifold(mesh,allowBoundaryEdges)` checks if the surface mesh is edge-manifold. A mesh is edge-manifold if every edge of the mesh bounds either one or two faces.```

## Examples

collapse all

Define mesh vertices for a surface mesh.

```vertices = [1 -1 1; 1 1 1; -1 1 1; -1 -1 1; ... 1 -1 -1; 1 1 -1; -1 1 -1; -1 -1 -1];```

Define the mesh faces using the vertices.

```faces = [6 2 1; 1 5 6; 8 4 3; 3 7 8; 6 7 3; 3 2 6; ... 5 1 4; 4 8 5; 4 1 2; 2 3 4; 7 6 5; 5 8 7];```

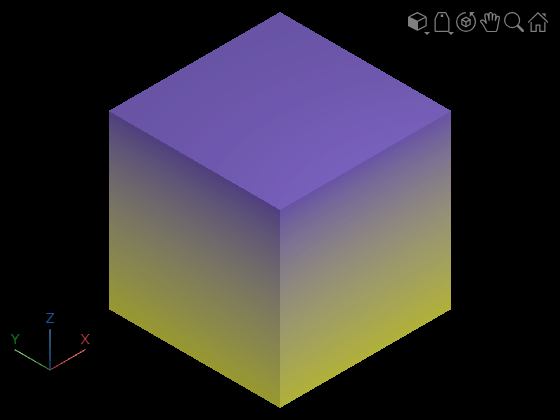

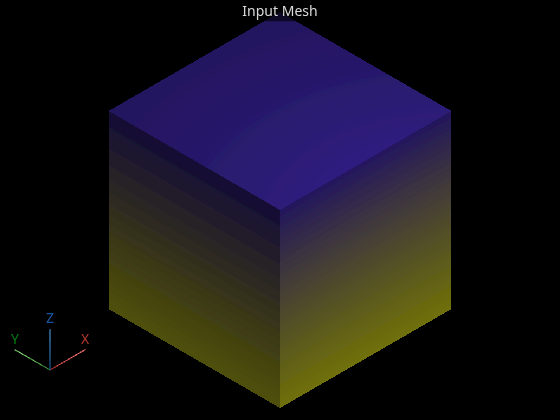

Create and display the surface mesh.

```mesh = surfaceMesh(vertices,faces); surfaceMeshShow(mesh,Title="Input Mesh")```

Check if the mesh is edge-manifold.

```allowBoundaryEdges = false; TF = isEdgeManifold(mesh,allowBoundaryEdges); disp(TF)```
``` 1 ```

## Input Arguments

collapse all

Surface mesh, specified as a `surfaceMesh` object.

Allow boundary edges, specified as a logical `true` or `false`. When this value is specified as `true`, the function ignores boundary edges while checking if the mesh is edge-manifold.

Data Types: `logical`

## Output Arguments

collapse all

Surface mesh is edge-manifold, returned as a logical `0` (`false`) or `1` (`true`). The function returns `true` when the mesh is edge-manifold. Otherwise, it returns `false`.

The function also returns `false` when a mesh has boundary edges and `allowBoundaryEdges` is specified as `false`.

## Version History

Introduced in R2022b
