# scale

Scale vertices of surface mesh

Since R2022b

## Syntax

``scale(mesh,scalingFactor)``
``scale(mesh,scalingFactor,pivot)``

## Description

example

````scale(mesh,scalingFactor)` scales the vertices of the surface mesh `mesh` along the x-, y-, z-axes by the specified scaling factor `scalingFactor`. The function uses the mesh origin as the pivot point.```
````scale(mesh,scalingFactor,pivot)` scales the mesh vertices along the x-, y-, z-axes about the specified pivot point.```

## Examples

collapse all

Define mesh vertices for a surface mesh.

```vertices = [1 -1 1; 1 1 1; -1 1 1; -1 -1 1; ... 1 -1 -1; 1 1 -1; -1 1 -1; -1 -1 -1];```

Define the mesh faces using the vertices.

```faces = [6 2 1; 1 5 6; 8 4 3; 3 7 8; 6 7 3; 3 2 6; ... 5 1 4; 4 8 5; 4 1 2; 2 3 4; 7 6 5; 5 8 7];```

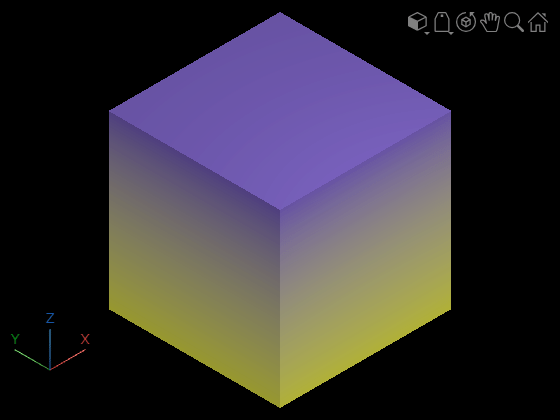

Create and display the surface mesh.

```mesh = surfaceMesh(vertices,faces); surfaceMeshShow(mesh,Title="Original Mesh")```

Scale the vertices of the surface mesh by a factor of two, and display the scaled mesh.

```scalingFactor = 2; scale(mesh,scalingFactor) surfaceMeshShow(mesh,Title="Scaled Mesh")```

## Input Arguments

collapse all

Surface mesh, specified as a `surfaceMesh` object.

Scaling factor for the surface mesh, specified as a positive scalar.

Data Types: `single` | `double`

Pivot point for scaling the surface mesh, specified as a three-element vector of the form [x y z]. The values of the vector define the coordinates of the pivot point.

## Version History

Introduced in R2022b
