# odeSensitivity

ODE sensitivity analysis

Since R2024a

## Description

Use `odeSensitivity` objects to perform sensitivity analysis on a system of ordinary differential equations (ODEs) or differential algebraic equations (DAEs). Sensitivity analysis examines how changes in the values of parameters in the differential equations affect the calculated solutions. If an equation is sensitive to the value of a particular parameter, then small changes in the parameter value can produce large changes in the solution.

Create an `ode` object to represent the ODE or DAE problem, and specify an `odeSensitivity` object as the value of the `Sensitivity` property to perform sensitivity analysis.

## Creation

### Syntax

``S = odeSensitivity``
``S = odeSensitivity(Name=Value)``

### Description

example

````S = odeSensitivity` creates an `odeSensitivity` object with empty properties.```
````S = odeSensitivity(Name=Value)` specifies one or more property values using name-value arguments. For example, you can specify the equation parameters to include in the sensitivity analysis by using the `ParameterIndices` property.```

## Properties

expand all

Parameter indices for sensitivity analysis, specified as a scalar index or vector of indices. `ParameterIndices` contains indices into the numeric `Parameters` property of the `ode` object to specify which parameters to include in the sensitivity analysis.

If you do not specify a value for `ParameterIndices`, then the `ode` object performs sensitivity analysis on all parameters.

Example: `S = odeSensitivity(ParameterIndices=1:2)` specifies that the first and second parameters are used for sensitivity analysis.

Initial sensitivity of solution, specified as a matrix. The matrix has one row for each equation in the system, and one column for each sensitivity parameter as defined by the `ParameterIndices` property. Each `(i,j)` value in the matrix specifies the initial sensitivity of equation `i` with respect to sensitivity parameter `j`.

If you do not specify a value for `InitialValue`, then the `ode` object uses a matrix of zeros.

Example: `S = odeSensitivity(InitialValue=M)` specifies a matrix `M` of initial sensitivities.

Initial slope for DAE problems, specified as a vector. Use this property with the `idas` solver when solving DAEs. The vector specifies the initial slope `ds/dt` for each sensitivity parameter as defined by the `ParameterIndices` property.

If the specified initial slopes are not consistent with the `InitialTime`, `InitialValue`, and `MassMatrix` properties of the `ode` object, then the solver treats the slopes as guesses and attempts to compute consistent values for the initial slopes that are close to the guesses before continuing to solve the problem.

If you do not specify a value for `InitialSlope`, then the `ode` object uses a vector of zeros.

Example: `S = odeSensitivity(InitialSlope=[0.1 0.2])` specifies initial slopes for two sensitivity parameters.

Jacobian matrix with respect to parameters, specified as an `odeJacobian` object, matrix, or handle to a function that evaluates the Jacobian. The Jacobian is a matrix of partial derivatives of the functions that define the system of differential equations with respect to one or more parameters defined in the `Parameters` property of the `ode` object. The Jacobian matrix has one row for each equation in the system and one column for each sensitivity parameter as defined by the `ParameterIndices` property.

`$J=\frac{\partial f}{\partial p}=\left[\begin{array}{ccc}\frac{\partial {f}_{1}}{\partial {p}_{1}}& \frac{\partial {f}_{1}}{\partial {p}_{2}}& \cdots \\ \frac{\partial {f}_{2}}{\partial {p}_{1}}& \frac{\partial {f}_{2}}{\partial {p}_{2}}& \cdots \\ ⋮& ⋮& \end{array}\right]$`

The Jacobian is used for all sensitivity analyses, regardless of solver choice. If you do not provide the Jacobian, then the ODE solver approximates it numerically using finite differences.

For large systems of equations where it is not feasible to provide the entire analytic Jacobian, you can specify the sparsity pattern of the Jacobian matrix instead. The solver uses the sparsity pattern to calculate a sparse Jacobian.

You can specify the value of the `Jacobian` property as:

• An `odeJacobian` object, which can represent either the Jacobian matrix or its sparsity pattern.

• A constant matrix with calculated values for the Jacobian elements.

• A handle to a function that computes the matrix elements and that accepts two input arguments, `dfdp = Fjac(t,y)`. To give the function access to parameter values in the `Parameters` property, specify a third input argument in the function definition, ```dfdp = Fjac(t,y,p)```.

If you specify a matrix or function handle, then MATLAB® converts it to an `odeJacobian` object.

Example: `S = odeSensitivity(Jacobian=@Fjac)` specifies the function `Fjac` that evaluates the Jacobian matrix.

Example: `S = odeSensitivity(Jacobian=[0 1; -2 1])` specifies a constant Jacobian matrix.

Example: ```S = odeSensitivity(Jacobian=odeJacobian(SparsityPattern=S))``` specifies the Jacobian sparsity pattern using sparse matrix `S`.

## Examples

collapse all

Solve an ODE system with two equations and two parameters, and perform sensitivity analysis on the parameters.

Create an `ode` object to represent this system of equations.

`$\begin{array}{l}\frac{{\mathrm{dy}}_{1}}{\mathrm{dt}}={\mathit{p}}_{1}{\mathit{y}}_{1}-{\mathit{y}}_{2}\\ \frac{{\mathrm{dy}}_{2}}{\mathrm{dt}}={-\mathit{p}}_{2}{\mathit{y}}_{2}\end{array}$`

Specify the initial conditions as ${\mathit{y}}_{1}\left(0\right)=2$ and ${\mathit{y}}_{2}\left(0\right)=3$, and parameter values of ${\mathit{p}}_{1}=0.05$ and ${\mathit{p}}_{2}=1.5$. To enable sensitivity analysis of the parameters, set the `Sensitivity` property of the `ode` object to an `odeSensitivity` object.

```p = [0.05 1.5]; F = ode(ODEFcn=@(t,y,p) [p(1)*y(1)-y(2); -p(2)*y(2)], ... InitialValue=[2 3], ... Parameters=p, ... Sensitivity=odeSensitivity)```
```F = ode with properties: Problem definition ODEFcn: @(t,y,p)[p(1)*y(1)-y(2);-p(2)*y(2)] Parameters: [0.0500 1.5000] InitialTime: 0 InitialValue: [2 3] Sensitivity: [1x1 odeSensitivity] Solver properties AbsoluteTolerance: 1.0000e-06 RelativeTolerance: 1.0000e-03 Solver: auto SelectedSolver: cvodesNonstiff Show all properties ```

Because the equations are nonstiff and sensitivity analysis is enabled, the `ode` object automatically chooses the `cvodesNonstiff` solver for this problem.

Solve the ODE over the time interval `[0 5]`, and plot the solution for each component.

`S = solve(F,0,5)`
```S = ODEResults with properties: Time: [0 2.9540e-09 2.9543e-05 2.2466e-04 4.1978e-04 0.0024 0.0139 0.0255 0.0484 0.0713 0.1363 0.2014 0.2992 0.3970 0.4948 0.6661 0.8373 1.0085 1.1798 1.3510 1.5222 1.8047 2.0872 2.3697 2.6522 2.9347 3.2172 3.4997 3.7822 ... ] (1x34 double) Solution: [2x34 double] Sensitivity: [2x2x34 double] ```

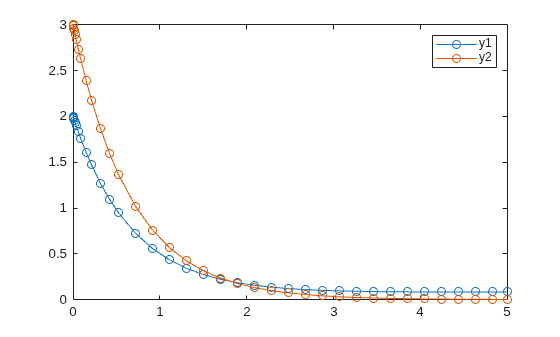

```plot(S.Time,S.Solution(1,:),"-o",S.Time,S.Solution(2,:),"-o") legend("y1","y2")```

The values in `S.Sensitivity` are partial derivatives of the equations with respect to the parameters. To examine the effects of the parameter values during the integration, plot the sensitivity values.

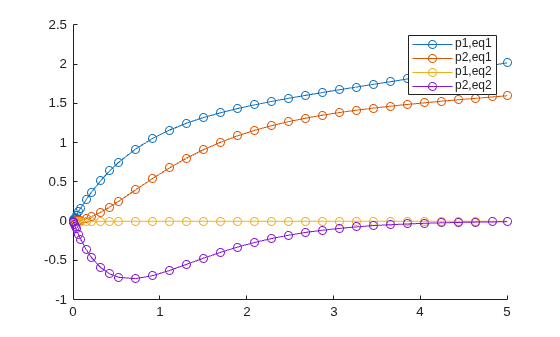

```figure hold on plot(S.Time,squeeze(S.Sensitivity(1,1,:)),"-o") plot(S.Time,squeeze(S.Sensitivity(1,2,:)),"-o") plot(S.Time,squeeze(S.Sensitivity(2,1,:)),"-o") plot(S.Time,squeeze(S.Sensitivity(2,2,:)),"-o") legend("p1,eq1","p2,eq1","p1,eq2","p2,eq2") hold off```

## Version History

Introduced in R2024a
