navPathControl

Path representing control-based kinematic trajectory

Since R2021b

    Description

    The navPathControl object stores paths that are typically created by control-based path planners like the plannerControlRRT object. The navPathControl object represents paths as a sequence of states, controls, durations, and targets. This object associates each path with a specific state propagator, which propagates the control commands to determine the resulting states.

    This object specifies states and targets in the path in the state space of propagator. Controls are outputs from a controller that are used to update your systems state during propagation. This object applies each control for an associated duration. Controls can be reference signals or direct inputs to an integrator depending on your system design.

    Creation

    Description

    example

    pathObj = navPathControl(propagator) creates a path object with the specified state propagator. The propagator argument specifies the StatePropagator

    pathObj = navPathControl(propagator,states,controls,targets,durations) initializes the path with a sequence of specified states, controls, targets, and durations. The input states must have one more row than the other input vectors and matrices.

    Properties

    expand all

    State propagator, specified as an object of a subclass of nav.StatePropagator. For example, the mobileRobotPropagator object represents the state space and kinematic control behavior for different mobile robot vehicle models.

    Data Types: double

    Series of states for the path, specified as an n-by-m matrix. n is the number of points in the path. m is the dimension of the state vector.

    You can specify this property at object creation by using the states argument.

    Data Types: double

    Control input for each state, specified as an (n–1)-by-m matrix. n is the number of points in the path. m is the dimension of the state vector.

    You can specify this property at object creation by using the controls argument.

    Data Types: double

    Target state for each state in the path, specified as an (n–1)-by-m matrix. n is the number of points in the path. m is the dimension of the state vector.

    You can specify this property at object creation by using the targets argument.

    Data Types: double

    Duration of each control input, specified as an (n–1)-element vector in seconds. n is the number of points in the path.

    You can specify this property at object creation by using the durations argument.

    Data Types: double

    Number of states in the path, specified as a positive integer.

    Data Types: double

    Number of segments between states in the path, specified as a positive integer, which must be one less than the number of states.

    Data Types: double

    Object Functions

    appendAdd states to end of path
    interpolateInterpolate path based on propagator step size
    pathDurationTotal elapsed duration of control path

    Examples

    collapse all

    Plan control paths for a bicycle kinematic model with the mobileRobotPropagator object. Specify a map for the environment, set state bounds, and define a start and goal location. Plan a path using the control-based RRT algorithm, which uses a state propagator for planning motion and the required control commands.

    Set State and State Propagator Parameters

    Load a ternary map matrix and create an occupancyMap object. Create the state propagator using the map. By default, the state propagator uses a bicycle kinematic model.

    load('exampleMaps','ternaryMap')
    map = occupancyMap(ternaryMap,10);

    propagator = mobileRobotPropagator(Environment=map); % Bicycle model

    Set the state bounds on the state space based on the map world limits.

    propagator.StateSpace.StateBounds(1:2,:) = ...
                        [map.XWorldLimits; map.YWorldLimits];

    Plan Path

    Create the path planner from the state propagator.

    planner = plannerControlRRT(propagator);

    Specify the start and goal states.

    start = [10 15 0];
    goal  = [40 30 0];

    Plan a path between the states. For repeatable results, reset the random number generator before planning. The plan function outputs a navPathControl object, which contains the states, control commands, and durations.

    rng("default")
    path = plan(planner,start,goal)
    path =
      navPathControl with properties:

        StatePropagator: [1x1 mobileRobotPropagator]
                 States: [192x3 double]
               Controls: [191x2 double]
              Durations: [191x1 double]
           TargetStates: [191x3 double]
              NumStates: 192
            NumSegments: 191



    Visualize Results

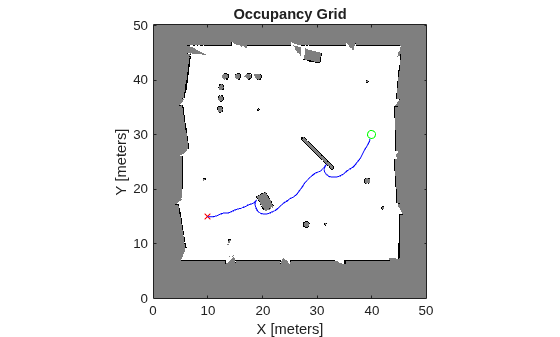

    Visualize the map and plot the path states.

    show(map)
    hold on
    plot(start(1),start(2),"rx")
    plot(goal(1),goal(2),"go")
    plot(path.States(:,1),path.States(:,2),"b")
    hold off

    Display the [v psi] control inputs of forward velocity and steering angle.

    plot(path.Controls)
    ylim([-1 1])
    legend(["Velocity (m/s)","Steering Angle (rad)"])

    Set State and State Propagator Parameters

    Load a ternary map matrix and create an occupancyMap object.

    load("exampleMaps","ternaryMap")
    map = occupancyMap(ternaryMap,10);

    Create a state propagator for a bicycle kinematic model using the map.

    propagator = mobileRobotPropagator(Environment=map);

    Set the state bounds on the state space based on the map world limits.

    propagator.StateSpace.StateBounds(1:2,:) = [map.XWorldLimits;
                                                map.YWorldLimits];

    Plan Path

    Create the path planner from the state propagator.

    planner = plannerControlRRT(propagator);

    Specify the start and goal states.

    start = [10 15 0];
    goal  = [40 30 0];

    Plan a path between the states. For repeatable results, reset the random number generator before planning.

    rng("default")
    path = plan(planner,start,goal);

    Check the total elapsed duration of the control path.

    pathDuration(path)
    ans = 102.4000


    Interpolate the path to the control step size of the propagator.

    interpolate(path)

    Visualize the path.

    figure
    show(map)
    hold on
    plot(start(1),start(2),"rx")
    plot(goal(1),goal(2),"go")
    plot(path.States(:,1),path.States(:,2),"b")
    hold off

    Plan Return Path

    Plan a second path from the end of the previous path location back to the start.

    path2 = plan(planner,path.States(end,:),start);

    Check the total elapsed duration of the second path.

    pathDuration(path2)
    ans = 100.3000

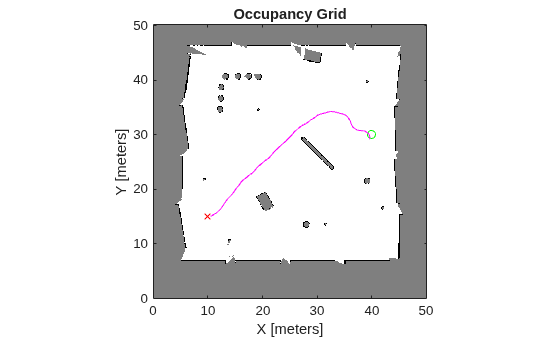

    Visualize the path.

    figure
    show(map)
    hold on
    plot(start(1),start(2),"rx")
    plot(goal(1),goal(2),"go")
    plot(path2.States(:,1),path2.States(:,2),"m")
    hold off

    Combine Paths

    Extract the sequence of motions from the second path.

    states = path2.States(2:end,:);
    controls = path2.Controls;
    targets = path2.TargetStates;
    durations = path2.Durations;

    Append this sequence to the end of the first path.

    append(path,states,controls,targets,durations)

    Interpolate the new segments in the original path.

    interpolate(path)

    Check the total elapsed duration of the final path.

    pathDuration(path)
    ans = 102.4000

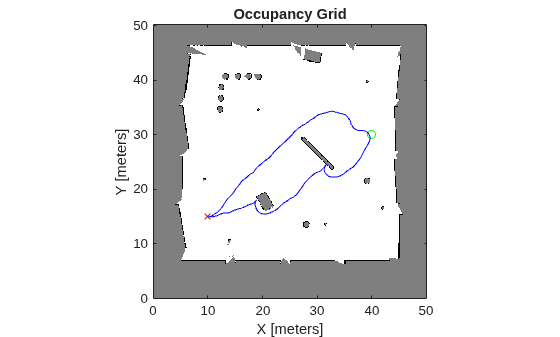

    Visualize the path.

    figure
    show(map)
    hold on
    plot(start(1),start(2),"rx")
    plot(goal(1),goal(2),"go")
    plot(path.States(:,1),path.States(:,2),"b")
    hold off
