SLAM Map Builder

Build 2-D grid maps using lidar-based SLAM

Since R2019b


The SLAM Map Builder app loads recorded lidar scans and odometry sensor data to build a 2-D occupancy grid using simultaneous localization and mapping (SLAM) algorithms. Incremental scan matching aligns and overlays scans to build the map. Loop closure detection adjusts for drift of the vehicle odometry by detecting previously visited locations and adjusting the overall map. Sometimes, the scan matching algorithm and loop closure detection require manual adjustment. Use the app to manually align scans and modify loop closures to improve the overall map accuracy. You can also tune the SLAM algorithm settings to improve the automatic map building.

To use the app:

To load rosbag log files, select Import > Import from rosbag. Select the rosbag file and click Open. This opens the Import tab. For more information, see Import and Filter a rosbag.

To load data from the workspace, Import > Import from workspace. Select your Scans and Poses variables using the drop downs provided. You can also specify the variables in the slamMapBuilder function. See Programmatic Use.

Use SLAM Settings to adjust the SLAM algorithm settings. Default values are provided, but your specific sensors and data may require tuning of these settings. The most important value to tune is the Loop Closure Threshold. For more information, see Tune SLAM Settings.

Click Build to begin the SLAM map building process. The building process aligns scans in the map using incremental scan matching, identifies loop closures when visiting previous locations, and adjusts poses. Click Pause at any time during the map building process to manually align incremental scans or modify loop closures.

Click Incremental Match to modify the relative pose of the currently selected frame and align the scan with the previous scan. Click Loop Closure to modify or ignore the detected loop closure for the current frame. Use the slider on the bottom to scroll back to areas where scan matching or loop closures are not accurate. You can modify any number of scans or loop closures. For more information, see Modify Increment Scans and Loop Closures.

After modifying your map, click Sync to update all the poses in the scan map. The two options under Sync are Sync, which searches for new loop closures, or Sync Fast, which skips loop closure searching and just updates the scan map. For more information, see Sync the Map.

When you are satisfied with how the map looks, click Export to OccupancyGrid to either export the map to an m-file or save the map in the workspace. The map is output as a 2-D probabilistic occupancy grid in an occupancyMap object.

You can open existing app sessions you have saved using Open Session. When you are in the Map Builder tab, you can save your progress to an m-file using Save Session.

SLAM Map Builder app

Open the SLAM Map Builder App

  • MATLAB® Toolstrip: In the Apps tab, under ROBOTICS AND AUTONOMOUS SYSTEMS, click SLAM Map Builder.

  • MATLAB Command Window: Enter slamMapBuilder


expand all

The SLAM Map Builder app helps you build an occupancy grid from lidar scans using simultaneous localization and mapping (SLAM) algorithms. The map is built by estimating poses through scan matching and using loop closures for pose graph optimization. This example shows you the workflow for loading a rosbag of lidar scan data, filtering the data, and building the map. Tune the scan map by adjusting incremental scan matches and modifying loop closures.

Load Lidar Scan Data

Load the example .mat file into the workspace, which contains a variable, scans, as a cell array of lidarScan objects.

load slamLidarScans.mat

Open the App

In the Apps tab, under Robotics and Autonomous Systems, click SLAM Map Builder.

Also, you can call the slamMapBuilder function:


Import Lidar Scans

Click Import > Import from workspace to load the scans. Data stored as a rosbag can be loaded with a ROS Toolbox license.

Select the scans variable in the Scans drop down.

In the tool bar, set Downsample to (%) to 10. Downsampling evenly samples from the data to reduce computation time for the SLAM algorithm. For this example, 10% is every 5th scan. Click Apply.

Use the slider or arrow keys at the bottom to preview the scans.

Once you are done importing, click Close.

Tune SLAM Settings

The SLAM algorithm can be tuned using the SLAM Settings dialog. The parameters should be adjusted based on your sensor specifications, the environment, and your application. For this example, increase Loop Closure Threshold from 200 to 300. This increased threshold decreases the likelihood of accepting and using a detected loop closure. Set the Optimization Interval to 10. With every 10th loop closure accepted, the pose graph is optimized to account for drift.

Build the Map

After filtering your data and setting the SLAM algorithm settings, click Build. The app begins processing scans to build the map. You should see the slider progressing and scans being overlaid in the map. The estimated robot trajectory is plotted on the same scan map. Incremental scan matches are shown in the Incremental Match pane. Whenever a loop closure is detected, the Loop Closure pane shows the two scans overlaid on each other.

Adjust Scan Matches or Loop Closures

At any time during the build process, if you notice the map is distorted or an incremental match or loop closure looks off, click Pause to select scans for adjustment. You can modify scans at the end of the build process as well. Navigate using the arrow keys or slider to the point in the file where the distortion first occurs. Click the Incremental Match or Loop Closure buttons to adjust the currently displayed scan poses. In this section, the bad loop closure is artificial and only for illustration purposes.

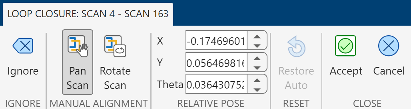

Click the Loop Closure button. This opens a tab for modifying the loop closure relative pose.

To ignore the loop closure completely, click Ignore. Otherwise, manually modify the relative scan pose until the scans line up.

Click Pan Scan or Rotate Scan, then click and drag in the figure to align the two scans. Click Accept when you are done. You can do this for multiple scans.

After you modify your scan poses for incremental matches and loop closures, click Sync to apply changes. SyncFast updates the map without searching for new loop closures and reduces computation time if you have already processed all the scans.

Export Occupancy Grid

Once you have synced your changes and finished building the map, you should see a fully overlaid scan map with a robot trajectory.

Click Export Occupancy Grid to get a final occupancy map of your environment as a occupancyMap object. Specify the variable name to export the map to the workspace. You can create a map from a subset of scans by scrolling back to the desired frame before exporting and selecting Up to currently selected scan.

Call show on the stored map to visualize the occupancy map.


You can also save a SLAM Map Builder app session using the Save Session button. The app writes the current state of the app to a .mat file that can be loaded later using Open Session.

Related Examples


expand all

Lidar scans to import from workspace, specified as N-element cell array of lidarScan objects.

Poses to import from the workspace, specified as either an N-by-3 matrix or an N-element cell array of three-element row vectors. Each row of the N-by-3 matrix and each three-element row vector of the cell array represent a pose in the form [x y theta]. x and y comprise the position in meters and theta is the orientation in radians.

Example: [0 0 0; 1 1 pi/4; 2 2 pi/2]

Example: {[0 0 0],[1 1 pi/4],[2 2 pi/2]}

Programmatic Use

expand all

slamMapBuilder(bag) opens the SLAM Map Builder app and imports the rosbag log file specified in bag, a BagSelection object created using the rosbag (ROS Toolbox) function. The app opens to the Import tab to filter the sensor data in your rosbag.

slamMapBuilder(sessionFile) opens the SLAM Map Builder app from a saved session file name, sessionFile. An app session file is created through the Save Session button in the app toolstrip.

slamMapBuilder(scans) opens the SLAM Map Builder app and imports the scans specified in scans, a cell array of lidarScan objects. The app assumes you have prefiltered your scans and skips the import process. Click Build to start building the map.

slamMapBuilder(scans,poses) opens the SLAM Map Builder app and imports the scans and poses. scans is specified as a cell array of lidarScan objects. poses is a matrix of [x y theta] vectors that correspond to the poses of scans. The app assumes you have prefiltered your scans and skips the import process. Click Build to start building the map.
