Plan Mobile Robot Paths using RRT

This example shows how to use the rapidly-exploring random tree (RRT) algorithm to plan a path for a vehicle through a known map. Special vehicle constraints are also applied with a custom state space. You can tune your own planner with custom state space and path validation objects for any navigation application.

Load Occupancy Map

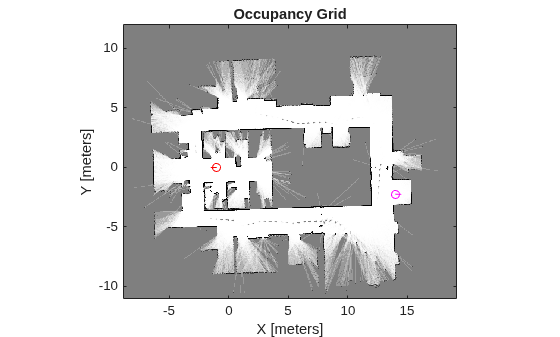

Load an existing occupancy map of a small office space. Plot the start and goal poses of the vehicle on top of the map.

load("office_area_gridmap.mat", "occGrid")
show(occGrid)

% Set the start and goal poses
start = [-1.0, 0.0, -pi];
goal = [14, -2.25, 0];

% Show the start and goal positions of the robot
hold on
plot(start(1), start(2), 'ro')
plot(goal(1), goal(2), 'mo')

% Show the start and goal headings
r = 0.5;
plot([start(1), start(1) + r*cos(start(3))], [start(2), start(2) + r*sin(start(3))], 'r-' )
plot([goal(1), goal(1) + r*cos(goal(3))], [goal(2), goal(2) + r*sin(goal(3))], 'm-' )
hold off

Define State Space

Specify the state space of the vehicle using a stateSpaceDubins object and specifying the state bounds. This object limits the sampled states to feasible Dubins curves for steering a vehicle within the state bounds. A turning radius of 0.4m allows for tight turns in this small environment.

bounds = [occGrid.XWorldLimits; occGrid.YWorldLimits; [-pi pi]];

ss = stateSpaceDubins(bounds);
ss.MinTurningRadius = 0.4;

Plan The Path

To plan a path, the RRT algorithm samples random states within the state space and attempts to connect a path. These states and connections need to be validated or excluded based on the map constraints. The vehicle must not collide with obstacles defined in the map.

Create a validatorOccupancyMap object with the specified state space. Set the Map property to the loaded occupancyMap object. Set a ValdiationDistance of 0.05m. This distance discretizes the path connections and checks obstacles in the map based on this.

stateValidator = validatorOccupancyMap(ss);
stateValidator.Map = occGrid;
stateValidator.ValidationDistance = 0.05;

Create the path planner and increase the max connection distance to connect more states. Set the maximum number of iterations for sampling states.

planner = plannerRRT(ss, stateValidator);
planner.MaxConnectionDistance = 2.0;
planner.MaxIterations = 30000;

Customize the GoalReached function. This example helper function checks if a feasible path reaches the goal within a set threshold. The function returns true when the goal has been reached, and the planner stops.

planner.GoalReachedFcn = @exampleHelperCheckIfGoal;
function isReached = exampleHelperCheckIfGoal(planner, goalState, newState)
    isReached = false;
    threshold = 0.1;
    if planner.StateSpace.distance(newState, goalState) < threshold
        isReached = true;
    end
end

Plan the path between the start and goal. Because of the random sampling, this example sets the rng seed for consistent results.

rng(0,'twister')

[pthObj, solnInfo] = plan(planner, start, goal);

Plot the Path

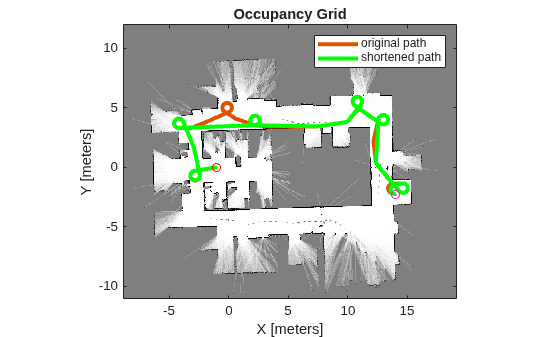

Show the occupancy map. Plot the search tree from the solnInfo. Interpolate and overlay the final path.

show(occGrid)
hold on

% Search tree
plot(solnInfo.TreeData(:,1), solnInfo.TreeData(:,2), '.-');

% Interpolate and plot path
interpolate(pthObj,300)
plot(pthObj.States(:,1), pthObj.States(:,2), 'r-', 'LineWidth', 2)

% Show the start and goal in the grid map
plot(start(1), start(2), 'ro')
plot(goal(1), goal(2), 'mo')
hold off

Customize Dubins Vehicle Constraints

To specify custom vehicle constraints, customize the state space object. This example uses ExampleHelperStateSpaceOneSidedDubins, which is based on the stateSpaceDubins class. This helper class limits the turning direction to either right or left based on a Boolean property, GoLeft. This property essentially disables path types of the dubinsConnection object uses (see dubinsConnection.DisabledPathTypes).

Create the state space object using the example helper. Specify the same state bounds and give the new Boolean parameter as true (left turns only).

% Only making left turns
goLeft = true;

% Create the state space
ssCustom = ExampleHelperStateSpaceOneSidedDubins(bounds, goLeft);
ssCustom.MinTurningRadius = 0.4;

Plan The Path

Create a new planner object with the custom Dubins constraints and a validator based on those constraints. Specify the same GoalReached function.

stateValidator2 = validatorOccupancyMap(ssCustom);
stateValidator2.Map = occGrid;
stateValidator2.ValidationDistance = 0.05;

planner = plannerRRT(ssCustom, stateValidator2);
planner.MaxConnectionDistance = 2.0;
planner.MaxIterations = 30000;
planner.GoalReachedFcn = @exampleHelperCheckIfGoal;

Plan the path between the start and goal. Reset the rng seed again.

rng(0, 'twister')
[pthObj2, solnInfo] = plan(planner, start, goal);

Plot the path

Draw the new path on the map. The path should only execute left turns to reach the goal. This example shows how you can customize your constraints and still plan paths using the generic RRT algorithm.

figure
show(occGrid)

hold on

% show the search tree
plot(solnInfo.TreeData(:,1), solnInfo.TreeData(:,2), '.-'); % tree expansion

% draw path (after the path is interpolated)
pthObj2.interpolate(300)
plot(pthObj2.States(:,1), pthObj2.States(:,2), 'r-', 'LineWidth', 2)

% Show the start and goal in the grid map
plot(start(1), start(2), 'ro')
plot(goal(1), goal(2), 'mo')
hold off
