Simulate Inertial Sensor Readings from a Driving Scenario

Generate synthetic sensor data from IMU, GPS, and wheel encoders using driving scenario generation tools from Automated Driving Toolbox™. The drivingScenario object simulates the driving scenario and sensor data is generated from the imuSensor, gpsSensor and wheelEncoderAckermann objects.

Define Scenario

Create a driving scenario with one vehicle. Define waypoints to have the vehicle move forward and make a turn. To simulate GPS readings, specify the reference location in geodetic coordinates. Generate the vehicle trajectory with the smoothTrajectory object function. Plot the waypoints.

lla0 = [42 -71 50];
s = drivingScenario('GeoReference',lla0);
v = vehicle(s);

waypoints = [-11 -0.25 0;
    -1 -0.25 0;
    -0.6 -0.4 0;
    -0.6 -9.3 0];
speed = [1.5;0;0.5;1.5];
smoothTrajectory(v,waypoints,speed);

figure
plot(waypoints(:,1),waypoints(:,2),'-o')
xlabel('X (m)')
ylabel('Y (m)')
title('Vehicle Position Waypoints')

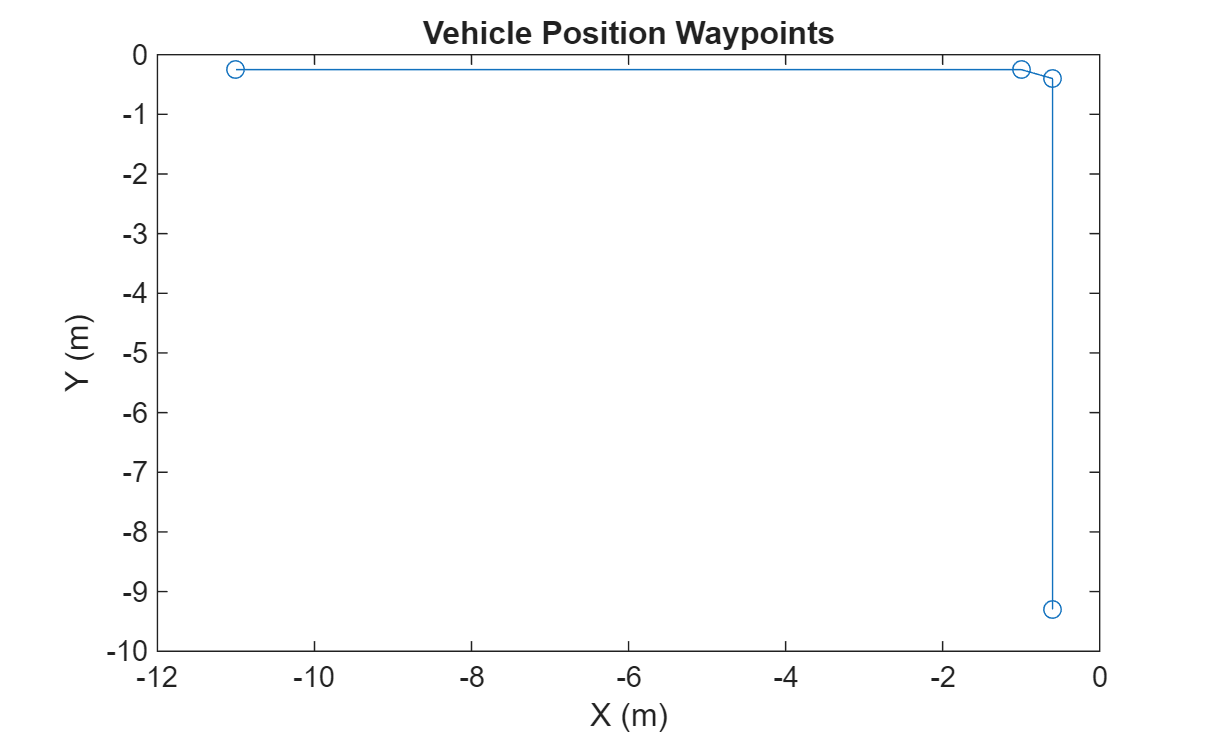

Figure contains an axes object. The axes object with title Vehicle Position Waypoints, xlabel X (m), ylabel Y (m) contains an object of type line.

Create Sensors

Create the IMU, GPS, and wheel encoder sensors. Specify the offset location and angles of the IMU and GPS. These can be edited to change the mounting position and orientation of the sensors on the vehicle.

mountingLocationIMU = [1 2 3];
mountingAnglesIMU = [0 0 0];
% Convert orientation offset from Euler angles to quaternion.
orientVeh2IMU = quaternion(mountingAnglesIMU,'eulerd','ZYX','frame');
% ReferenceFrame must be specified as ENU.
imu = imuSensor('SampleRate',1/s.SampleTime,'ReferenceFrame','ENU');

mountingLocationGPS = [1 2 3];
mountingAnglesGPS = [50 40 30];
% Convert orientation offset from Euler angles to quaternion.
orientVeh2GPS = quaternion(mountingAnglesGPS,'eulerd','ZYX','frame');
% The GeoReference property in drivingScenario is equivalent to
% the ReferenceLocation property in gpsSensor.
% ReferenceFrame must be specified as ENU.
gps = gpsSensor('ReferenceLocation',lla0,'ReferenceFrame','ENU');

encoder = wheelEncoderAckermann('TrackWidth',v.Width,...
    'WheelBase',v.Wheelbase,'SampleRate',1/s.SampleTime);

Run Simulation

Run the simulation and log the generated sensor readings.

% IMU readings.
accel = [];
gyro = [];
% Wheel encoder readings.
ticks = [];
% GPS readings.
lla = [];
gpsVel = [];
% Define the rate of the GPS compared to the simulation rate.
simSamplesPerGPS = (1/s.SampleTime)/gps.SampleRate;
idx = 0;
while advance(s)
    groundTruth = state(v);

    % Unpack the ground truth struct by converting the orientations from
    % Euler angles to quaternions and converting angular velocities form
    % degrees per second to radians per second.
    posVeh = groundTruth.Position;
    orientVeh = quaternion(fliplr(groundTruth.Orientation), 'eulerd', 'ZYX', 'frame');
    velVeh = groundTruth.Velocity;
    accVeh = groundTruth.Acceleration;
    angvelVeh = deg2rad(groundTruth.AngularVelocity);

    % Convert motion quantities from vehicle frame to IMU frame.
    [posIMU,orientIMU,velIMU,accIMU,angvelIMU] = transformMotion( ...
        mountingLocationIMU,orientVeh2IMU, ...
        posVeh,orientVeh,velVeh,accVeh,angvelVeh);
    [accel(end+1,:), gyro(end+1,:)] = imu(accIMU,angvelIMU,orientIMU);

    ticks(end+1,:) = encoder(velVeh, angvelVeh, orientVeh);

    % Only generate a new GPS sample when the simulation has advanced
    % enough.
    if (mod(idx, simSamplesPerGPS) == 0)
        % Convert motion quantities from vehicle frame to GPS frame.
        [posGPS,orientGPS,velGPS,accGPS,angvelGPS] = transformMotion(...
            mountingLocationGPS, orientVeh2GPS,...
            posVeh,orientVeh,velVeh,accVeh,angvelVeh);
        [lla(end+1,:), gpsVel(end+1,:)] = gps(posGPS,velGPS);
    end
    idx = idx + 1;
end

Visualize Results

Plot the generated sensor readings.

figure
plot(ticks)
ylabel('Wheel Ticks')
title('Wheel Encoder')

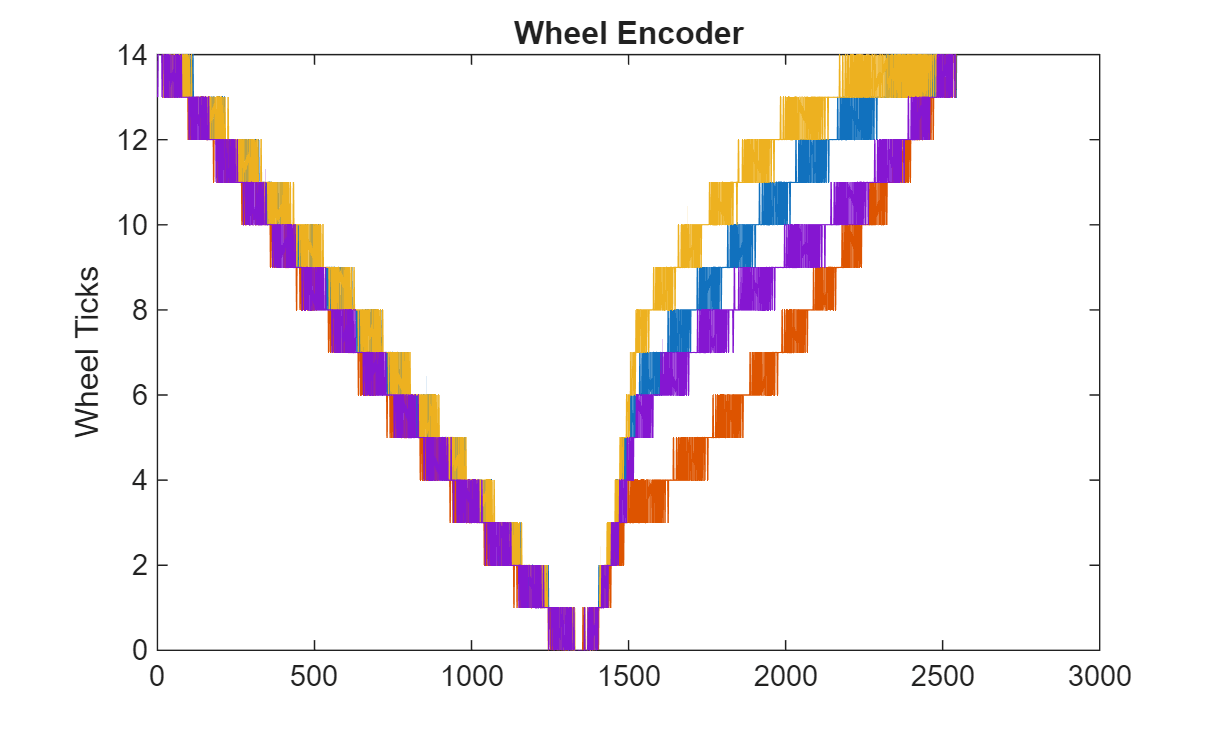

Figure contains an axes object. The axes object with title Wheel Encoder, ylabel Wheel Ticks contains 4 objects of type line.

figure
plot(accel)
ylabel('m/s^2')
title('Accelerometer')

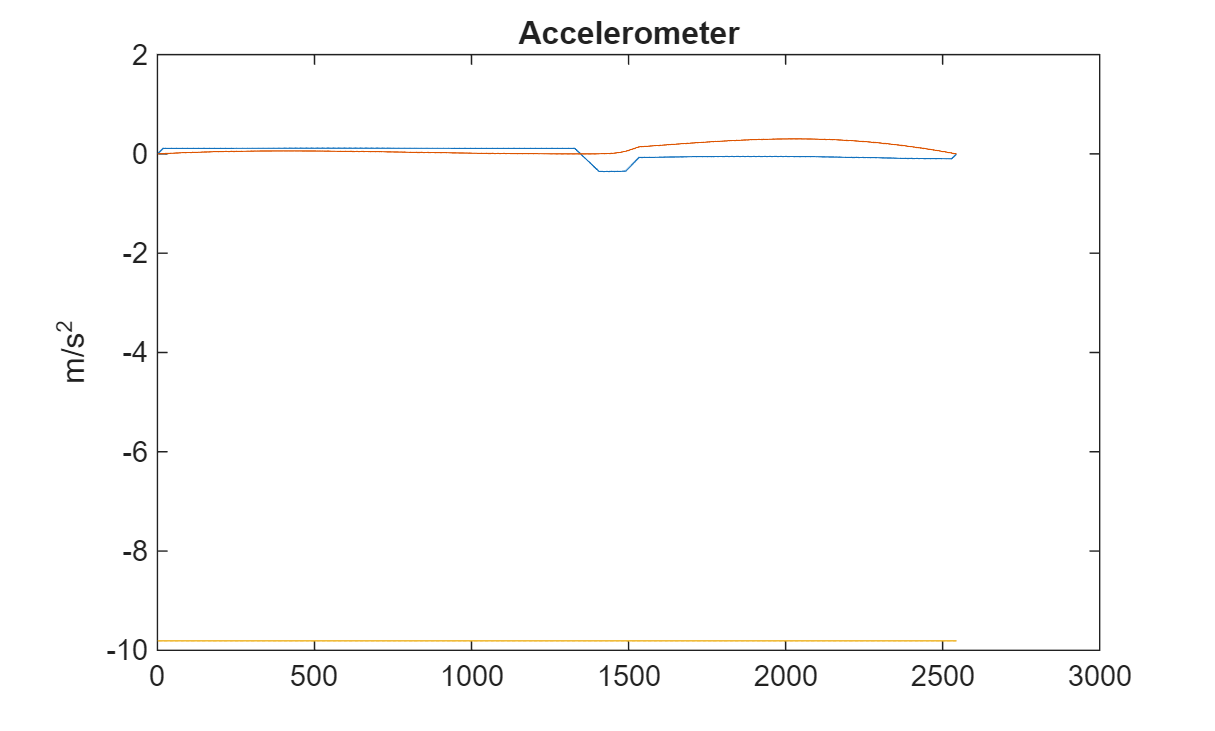

Figure contains an axes object. The axes object with title Accelerometer, ylabel m/s Squared baseline contains 3 objects of type line.

figure
plot(gyro)
ylabel('rad/s')
title('Gyroscope')

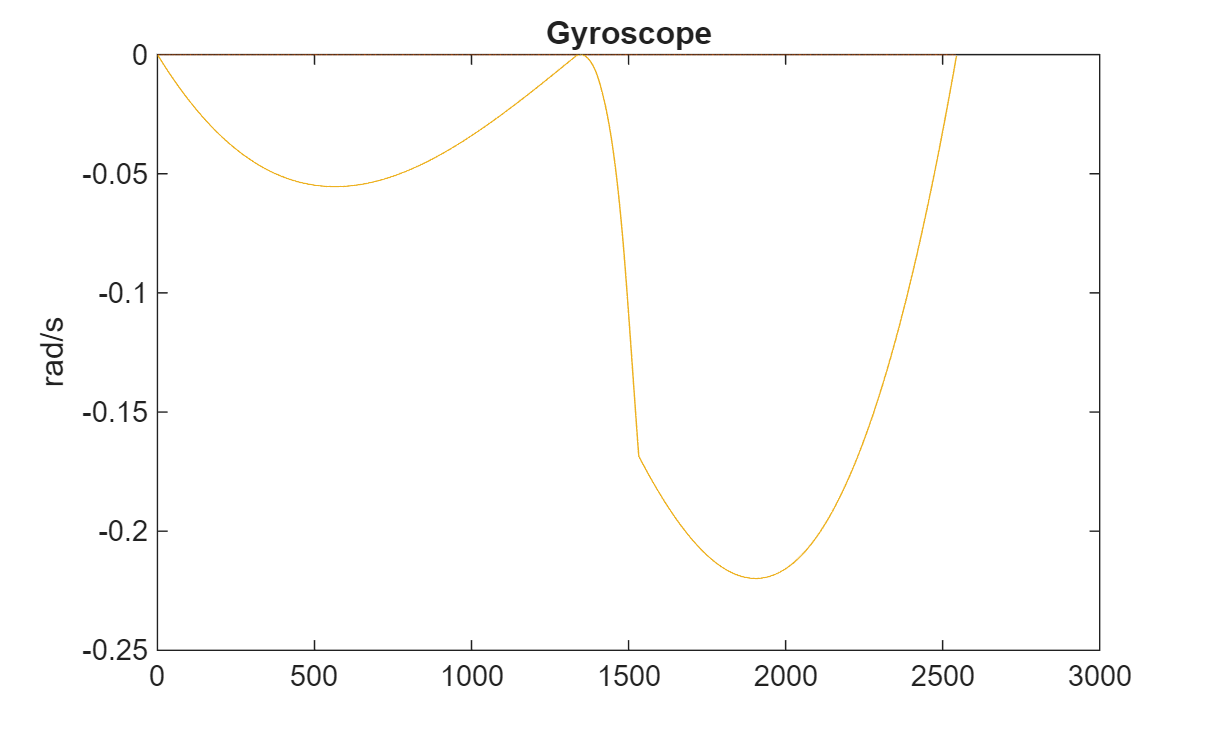

Figure contains an axes object. The axes object with title Gyroscope, ylabel rad/s contains 3 objects of type line.

figure
geoplot(lla(:,1),lla(:,2))
title('GPS Position')

Figure contains an axes object with type geoaxes. The geoaxes object contains an object of type line.

figure
plot(gpsVel)
ylabel('m/s')
title('GPS Velocity')

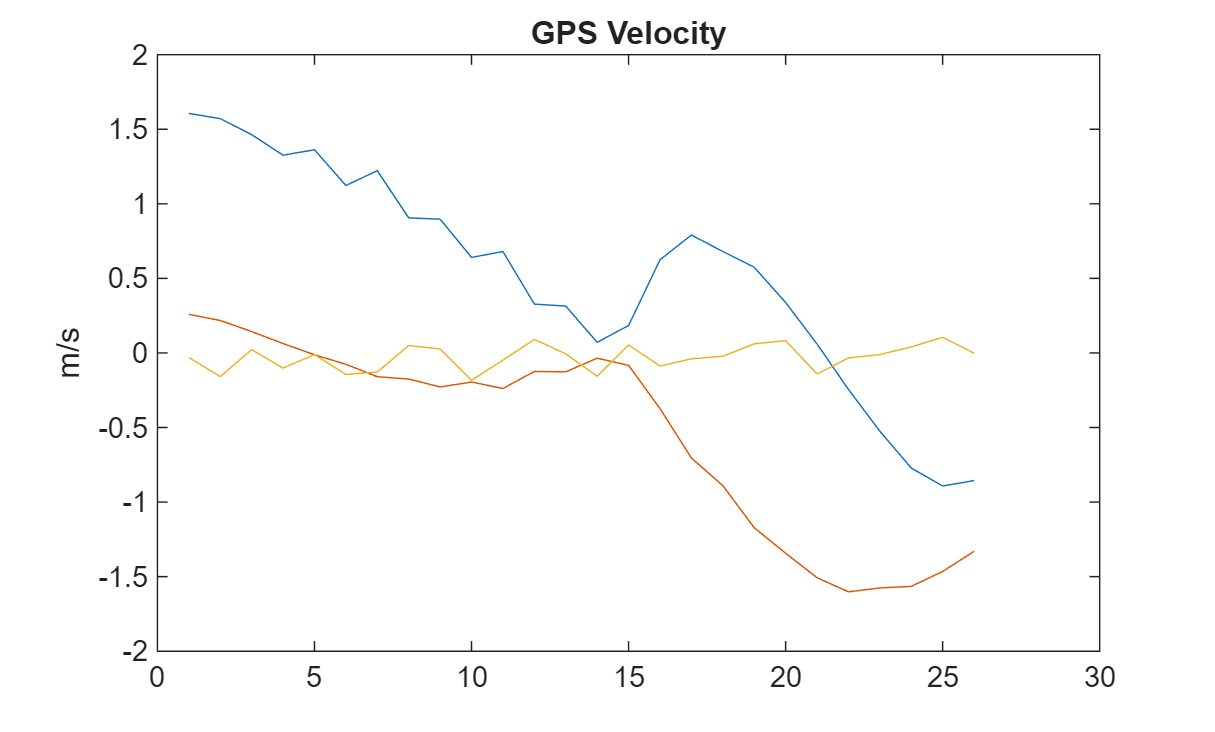

Figure contains an axes object. The axes object with title GPS Velocity, ylabel m/s contains 3 objects of type line.
