# Eigenvalues and Eigenmodes of Square

This example shows how to compute the eigenvalues and eigenmodes of a square domain.

The eigenvalue PDE problem is $$-\Delta u=\lambda u$$. This example finds the eigenvalues smaller than 10 and the corresponding eigenmodes.

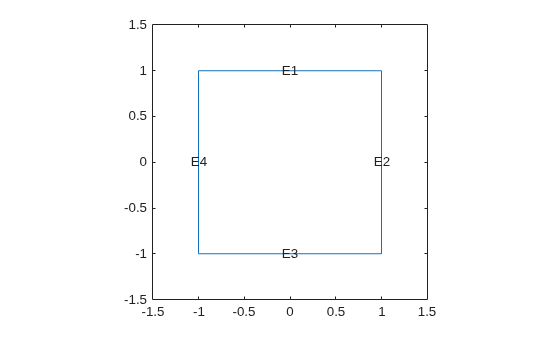

Create a model. Import and plot the geometry. The geometry description file for this problem is called `squareg.m`

.

model = createpde(); geometryFromEdges(model,@squareg); pdegplot(model,"EdgeLabels","on") ylim([-1.5,1.5]) axis equal

Specify the Dirichlet boundary condition $$u=0$$ for the left boundary.

applyBoundaryCondition(model,"dirichlet","Edge",4,"u",0);

Specify the zero Neumann boundary condition for the upper and lower boundary.

applyBoundaryCondition(model,"neumann","Edge",[1,3],"g",0,"q",0);

Specify the generalized Neumann condition $$\frac{\partial u}{\partial n}-\frac{3}{4}u=0$$ for the right boundary.

applyBoundaryCondition(model,"neumann","Edge",2,"g",0,"q",-3/4);

The eigenvalue PDE coefficients for this problem are *c* = 1, *a* = 0, and *d* = 1. You can enter the eigenvalue range `r`

as the vector `[-Inf 10]`

.

specifyCoefficients(model,"m",0,"d",1,"c",1,"a",0,"f",0); r = [-Inf,10];

Create a mesh and solve the problem.

```
generateMesh(model,"Hmax",0.05);
results = solvepdeeig(model,r);
```

There are six eigenvalues smaller than 10 for this problem.

l = results.Eigenvalues

`l = `*5×1*
-0.4146
2.0528
4.8019
7.2693
9.4550

Plot the first and last eigenfunctions in the specified range.

```
u = results.Eigenvectors;

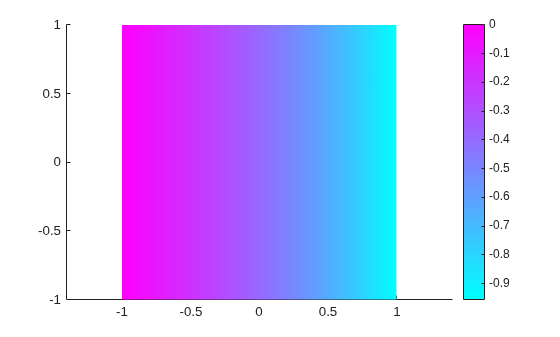

pdeplot(model,"XYData",u(:,1));
```

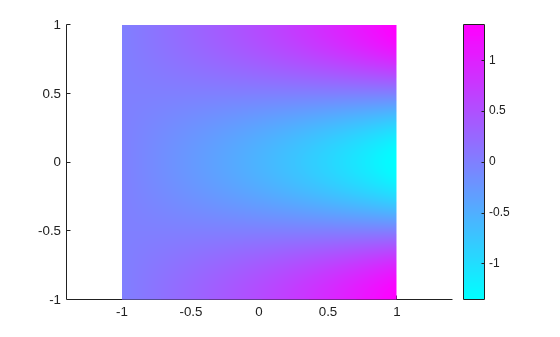

`pdeplot(model,"XYData",u(:,length(l)));`

This problem is *separable*, meaning

$$u(x,y)=f(x)g(y).$$

The functions *f* and *g* are eigenfunctions in the *x* and *y* directions, respectively. In the *x* direction, the first eigenmode is a slowly increasing exponential function. The higher modes include sinusoids. In the *y* direction, the first eigenmode is a straight line (constant), the second is half a cosine, the third is a full cosine, the fourth is one and a half full cosines, etc. These eigenmodes in the *y* direction are associated with the eigenvalues

$$0,\frac{{\pi}^{2}}{4},\frac{4{\pi}^{2}}{4},\frac{9{\pi}^{2}}{4},...$$

It is possible to trace the preceding eigenvalues in the eigenvalues of the solution. Looking at a plot of the first eigenmode, you can see that it is made up of the first eigenmodes in the *x* and *y* directions. The second eigenmode is made up of the first eigenmode in the *x* direction and the second eigenmode in the *y* direction.

Look at the difference between the first and the second eigenvalue compared to $${\pi}^{2}/4$$:

l(2) - l(1) - pi^2/4

ans = 1.6384e-07

Likewise, the fifth eigenmode is made up of the first eigenmode in the *x* direction and the third eigenmode in the *y* direction. As expected, `l(5)-l(1)`

is approximately equal to $${\pi}^{2}$$:

l(5) - l(1) - pi^2

ans = 6.0397e-06

You can explore higher modes by increasing the search range to include eigenvalues greater than 10.
