findBodyLoad

Find body load assigned to geometric region

collapse all in page

Domain-specific structural workflow is not recommended. New features might not be compatible with this workflow. For help migrating your existing code to the unified finite element workflow, see Migration from Domain-Specific to Unified Workflow.

Syntax

bl = findBodyLoad(bodyLoads,RegionType,RegionID)

Description

bl = findBodyLoad(bodyLoads,RegionType,RegionID) returns the body load assigned to a geometric region of the structural model. A body load must use units consistent with the geometry and other model attributes.

example

Examples

collapse all

Open Live Script

Create a structural model.

structuralModel = createpde("structural","static-solid");

Create and plot the geometry.

gm = multicuboid(0.5,0.1,0.1);
structuralModel.Geometry = gm;

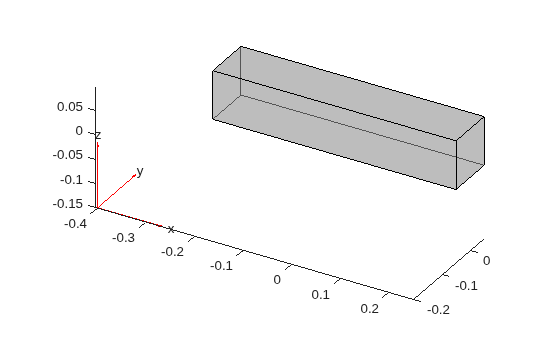

pdegplot(structuralModel,"FaceAlpha",0.5)

Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

Specify Young's modulus, Poisson's ratio, and the mass density. Notice that the mass density value is required for modeling gravitational effects.

structuralProperties(structuralModel,"YoungsModulus",210E3, ...
                                     "PoissonsRatio",0.3,...
                                     "MassDensity",2.7E-6);

Specify the gravity load on the beam.

structuralBodyLoad(structuralModel, ...
                  "GravitationalAcceleration",[0;0;-9.8]);

Check the body load specification for cell 1.

findBodyLoad(structuralModel.BodyLoads,"Cell",1)
ans =
  BodyLoadAssignment with properties:

                   RegionType: 'Cell'
                     RegionID: 1
    GravitationalAcceleration: [0 0 -9.8000]
              AngularVelocity: []
                  Temperature: []
                     TimeStep: []
                        Label: []

Input Arguments

collapse all

Body loads of the model, specified as a BodyLoads property of a StructuralModel object.

Example: structuralmodel.BodyLoads

Geometric region type, specified as "Face" for a 2-D model or "Cell" for a 3-D model.

Example: findBodyLoad(structuralmodel.BodyLoads,"Cell",1)

Data Types: char | string

Geometric region ID, specified as a vector of positive integers. Find the region IDs by using pdegplot.

Example: findBodyLoad(structuralmodel.BodyLoads,"Cell",1)

Data Types: double

Output Arguments

collapse all

Body load assignment, returned as a BodyLoadAssignment object. For details, see BodyLoadAssignment Properties.

Version History

Introduced in R2017b
