View, Edit, and Delete PDE Coefficients
A PDE model stores coefficients in its
EquationCoefficients property. Suppose
model is the name of your model. Obtain the coefficients:
coeffs = model.EquationCoefficients;
To see the active coefficient assignment for a region, call the

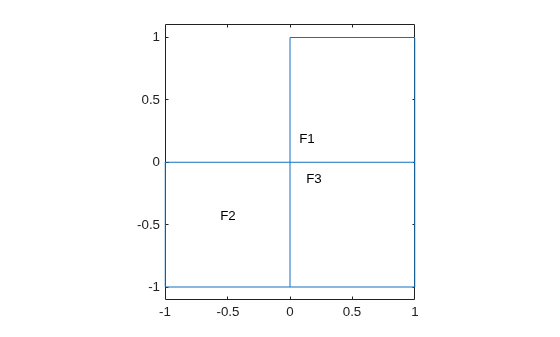

findCoefficients function. For example, create a model and view the geometry.
model = createpde(); geometryFromEdges(model,@lshapeg); pdegplot(model,'FaceLabels','on') ylim([-1.1,1.1]) axis equal
Specify constant coefficients over all the regions in the model.
Specify a different
f coefficient on each subregion.
Change the specification to have nonzero
a on region 2.
View the coefficient assignment for region 2.
coeffs = model.EquationCoefficients; findCoefficients(coeffs,'Face',2)
ans = CoefficientAssignment with properties: RegionType: 'face' RegionID: 2 m: 0 d: 0 c: 1 a: 1 f: 3
This shows the "last assignment wins" characteristic.
View the coefficient assignment for region 1.
ans = CoefficientAssignment with properties: RegionType: 'face' RegionID: [1 2 3] m: 0 d: 0 c: 1 a: 0 f: 2
The active coefficient assignment for region 1 includes all three regions, though this assignment is no longer active for regions 2 and 3.
Delete Existing Coefficients
To delete all the coefficients in your PDE model, use
model is the name of your model. Remove all coefficients from
To delete specific coefficient assignments, delete them from the
coefv = model.EquationCoefficients.CoefficientAssignments; delete(coefv(2))
You do not need to delete coefficients; you can override them by calling
specifyCoefficients again. However, deleting unused
assignments can make your model smaller.
Change a Coefficient Assignment
To change a coefficient assignment, you need the coefficient handle. To get the coefficient handle:
Retain the handle when using
specifyCoefficients. For example,
coefh1 = specifyCoefficients(model,'m',m,'d',d,'c',c,'a',a,'f',f);
Obtain the handle using
findCoefficients. For example,
coeffs = model.EquationCoefficients; coefh1 = findCoefficients(coeffs,'face',2);
You can change any property of the coefficient handle. For example,
coefh1.RegionID = [1,3]; coefh1.a = 2; coefh1.c = @ccoeffun;
Editing an existing assignment in this way does not change its priority. For
example, if the active coefficient in region 3 was assigned after
coefh1, then editing
coefh1 to include
region 3 does not make
coefh1 the active coefficient in region
