Detection and Tracking Statistics

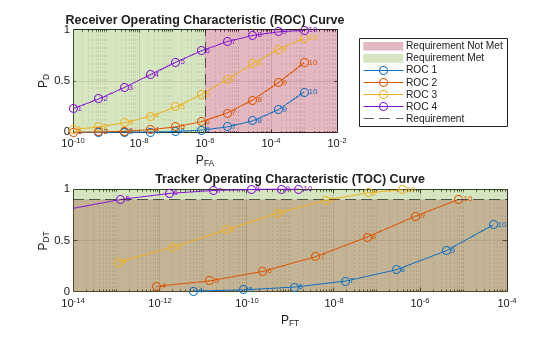

Detectability factor, receiver operating characteristics (ROC), tracker operating
characteristics (TOC), range-angle-height (Blake) chart
Minimum SNR threshold for different Swerling target models, minimum detectable signal (MDS), effective probability of detection versus range, probability of false alarm, probability of true tracks and false tracks in the presence of false alarms.
Functions
albersheim | Required SNR using Albersheim’s equation |
blakechart | Range-angle-height (Blake) chart (Since R2021a) |
detectability | Radar detectability factor (Since R2021a) |
probgrid | Nonuniformly spaced probabilities (Since R2021a) |
radarbudgetplot | Display link budget as waterfall plot (Since R2022b) |
radarmetricplot | Plot radar performance metric against target range (Since R2021a) |
radarvcd | Vertical coverage diagram (Since R2021a) |
rocinterp | ROC curve interpolation (Since R2021a) |
rocpfa | Receiver operating characteristic curves by false-alarm probability |
rocsnr | Receiver operating characteristic curves by SNR |
shnidman | Required SNR using Shnidman’s equation |
toccgh | Compute track probabilities using the CGH algorithm (Since R2021a) |
Apps
Radar Designer | Model radar gains and losses and assess performance in different environments (Since R2021a) |
Radar Equation Calculator | (To be removed) Estimate maximum range, peak power, and SNR of a radar system (Since R2021a) |
