Rigid Body Tree

Create rigid body tree robot model

Since R2026a

•

Libraries:
Robotics System Toolbox / Collision Detection

Description

The Rigid Body Tree block outputs a rigid body tree robot model. A rigid body tree is a representation of the connectivity of rigid bodies with joints.

A rigid body tree model is represented in MATLAB^® as a rigidBodyTree object, made up of rigid bodies as rigidBody objects. Each rigid body has a rigidBodyJoint object associated with it that defines how it can move relative to its parent body.

You can use the loadrobot function to load a rigid body tree model from the Robot Library, or use the importrobot function to import robot models from Simscape™ Multibody™ models or robot model files such as URDFs.

Examples

Check Robot for Collisions between Itself and World

Use the loadrobot function to load a robot model from the Robot Library and set up the collision environment.

robot = loadrobot("abbIrb120",DataFormat="row");
rad = 0.08;
len = 0.75;
pose1 = trvec2tform([0.4 -0.35 0.3]);
pose2 = trvec2tform([0 0.3 0.5]);
cylinder = collisionCylinder(rad,len,Pose=pose1);
sphere = collisionSphere(rad,Pose=pose2);

Show the robot with the collision environment. In this case, you can see the robot collides with the cylinder.

show(robot,[-pi/4 pi/4 0 0 -pi/4 0]);
hold on
showCollisionArray({cylinder,sphere});
title("Robot in Collision Environment")
hold on

open_system("RBTCheckCollisionModel");

out = sim("RBTCheckCollisionModel");

### Building simulation target for model: 'RBTCheckCollisionModel'.
/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/bin/mex -R2018a -c -DMATLAB_MEX_FILE -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/extern/include" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/simulink/include" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/rtw/c/src" -I"/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207" -I"/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cprj"  -I"/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cgxe/RBTCheckCollisionModel/src" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/extern/include/shared_robotics" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/extern/include/shared_robotics/collfcncodegen" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/toolbox/shared/robotics/externalDependency/libccd/src" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/toolbox/shared/robotics/externalDependency/libccd/src/ccd"  CFLAGS="\$CFLAGS -w   -Dccd_EXPORTS" RBTCheckCollisionModel_cgxe.c
Building with 'gcc'.
MEX completed successfully.
/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/bin/mex -R2018a -c -DMATLAB_MEX_FILE -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/extern/include" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/simulink/include" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/rtw/c/src" -I"/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207" -I"/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cprj"  -I"/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cgxe/RBTCheckCollisionModel/src" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/extern/include/shared_robotics" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/extern/include/shared_robotics/collfcncodegen" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/toolbox/shared/robotics/externalDependency/libccd/src" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/toolbox/shared/robotics/externalDependency/libccd/src/ccd"  CFLAGS="\$CFLAGS -w   -Dccd_EXPORTS" RBTCheckCollisionModel_cgxe_registry.c
Building with 'gcc'.
MEX completed successfully.
/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/bin/mex -R2018a -c -DMATLAB_MEX_FILE -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/extern/include" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/simulink/include" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/rtw/c/src" -I"/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207" -I"/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cprj"  -I"/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cgxe/RBTCheckCollisionModel/src" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/extern/include/shared_robotics" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/extern/include/shared_robotics/collfcncodegen" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/toolbox/shared/robotics/externalDependency/libccd/src" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/toolbox/shared/robotics/externalDependency/libccd/src/ccd"  CFLAGS="\$CFLAGS -w   -Dccd_EXPORTS" m_ZXHy3KQMhws9TAt8f8GUBH.c
Building with 'gcc'.
MEX completed successfully.
/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/bin/mex -R2018a -c -DMATLAB_MEX_FILE -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/extern/include" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/simulink/include" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/rtw/c/src" -I"/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207" -I"/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cprj"  -I"/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cgxe/RBTCheckCollisionModel/src" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/extern/include/shared_robotics" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/extern/include/shared_robotics/collfcncodegen" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/toolbox/shared/robotics/externalDependency/libccd/src" -I"/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3228664.Bdoc26a.3222347.noreset/build/runnable/matlab/toolbox/shared/robotics/externalDependency/libccd/src/ccd"  CFLAGS="\$CFLAGS -w   -Dccd_EXPORTS" m_pVzB5BIgzpfL1QM94jYFR.c
Building with 'gcc'.
/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cgxe/RBTCheckCollisionModel/src/m_pVzB5BIgzpfL1QM94jYFR.c: In function ‘CollisionGeometryBuildableFunctional_intersect’:
/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cgxe/RBTCheckCollisionModel/src/m_pVzB5BIgzpfL1QM94jYFR.c:4987:22: error: passing argument 16 of ‘fromMLToCollStruct’ from incompatible pointer type [-Wincompatible-pointer-types]
 4987 |                      &geom1struct.m_Vertices, &geom1struct.m_NumVertices,
      |                      ^~~~~~~~~~~~~~~~~~~~~~~
      |                      |
      |                      const real64_T ** {aka const double **}
/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cgxe/RBTCheckCollisionModel/src/m_pVzB5BIgzpfL1QM94jYFR.c:1507:43: note: expected ‘real64_T **’ {aka ‘double **’} but argument is of type ‘const real64_T **’ {aka ‘const double **’}
 1507 |   real_T *geomstruct_m_Height, real64_T* *geomstruct_m_Vertices, uint32_T
      |                                ~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~
/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cgxe/RBTCheckCollisionModel/src/m_pVzB5BIgzpfL1QM94jYFR.c:4994:22: error: passing argument 16 of ‘fromMLToCollStruct’ from incompatible pointer type [-Wincompatible-pointer-types]
 4994 |                      &geom2struct.m_Vertices, &geom2struct.m_NumVertices,
      |                      ^~~~~~~~~~~~~~~~~~~~~~~
      |                      |
      |                      const real64_T ** {aka const double **}
/tmp/Bdoc26a_3228664_92953/tp753e75de/robotics-ex92028207/slprj/_cgxe/RBTCheckCollisionModel/src/m_pVzB5BIgzpfL1QM94jYFR.c:1507:43: note: expected ‘real64_T **’ {aka ‘double **’} but argument is of type ‘const real64_T **’ {aka ‘const double **’}
 1507 |   real_T *geomstruct_m_Height, real64_T* *geomstruct_m_Vertices, uint32_T
      |                                ~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~

gmake: *** [m_pVzB5BIgzpfL1QM94jYFR.o] Error 255



### Build procedure for model: 'RBTCheckCollisionModel' aborted due to an error.

Self-Collision Data

Check the self-collision status for the robot at the first time step.

isSelfColliding = out.isSelfColl.Data(1)

Get the self-separation distance and self-witness points matrices for the first time step.

selfSepDist = out.selfSepDist.Data{1}
selfWitPts = out.selfWitPts.Data{1}

Get the separation distance and corresponding witness points between link_1 and link_6. Use find and strcmp functions to get the indices of these bodies in the rigid body tree.

body1Idx = find(strcmp(robot.BodyNames,"link_1"));
body2Idx = find(strcmp(robot.BodyNames,"link_6"));
link1_link6_dist = selfSepDist(body1Idx,body2Idx)
row = body1Idx*3-2; % body index * three dimensions (XYZ), -2 to get starting index of the submatrix
col = body2Idx*2-1; % body index * two witness points, -1 to get starting index of the submatrix
link1_link6_witpts = selfWitPts(row:row+2,col:col+1)

Plot a line between the witness points.

plot3(link1_link6_witpts(1,:),link1_link6_witpts(2,:),link1_link6_witpts(3,:),LineWidth=2);

World-Collision Data

Check the world-collision status for the robot at the first time step.

isWorldColliding = out.isWorldColl.Data(1)

Get the separation distances and witness points between the robot and the world objects for the first time step.

worldSepDist = out.worldSepDist.Data{1}
worldWitPts = out.worldWitPts.Data{1}

Get the separation distance and corresponding witness points between link_4 and the sphere collision geometry.

bodyIdx = find(strcmp(robot.BodyNames,"link_3"));
worldObjIdx = 2;
link2_sphere_dist = worldSepDist(bodyIdx,worldObjIdx)
row = bodyIdx*3-2;     % body index * three dimensions (XYZ), -2 to get starting index of the submatrix
col = worldObjIdx*2-1; % body index * two witness points, -1 to get starting index of the submatrix
link2_sphere_witpts = worldWitPts(row:row+2,col:col+1)

Plot a line between the witness points.

plot3(link2_sphere_witpts(1,:),link2_sphere_witpts(2,:),link2_sphere_witpts(3,:),LineWidth=2);

Ports

Output

Tree — Rigid body tree

bus

Rigid body tree, returned as a bus slRigidBodyTree with these elements:

• Bodies — Rigid bodies described as bus slRigidBody with the elements:

  • Name — Name of the rigid body as a uint8 vector.

  • NameLength — Length of the rigid body name.

  • SpatialInertia — Mass and inertia of the body.

  • Collisions — Collision geometries described as a bus slCollision containing the elements:

    • m_Type — Type of collision geometry:

      • 0 — Collision Box

      • 1 — Collision Cylinder

      • 2 — Collision Sphere

      • 3 — Collision Capsule

      • 4 — Collision Mesh

    • m_X — x-dimension size of the collision geometry in meters.

    • m_Y — y-dimension size of the collision geometry in meters.

    • m_Z — z‑dimension size of the collision geometry in meters.

    • m_Radius — Radius of the collision geometry in meters.

    • m_Height — Height of the collision geometry in meters.

    • m_Vertices — Vertices of the collision geometry in local frame.

    • m_Position — xyz-position of the collision geometry in meters.

    • m_Quaternion — Orientation of the collision geometry described as a quaternion.

  • NumCollisions — Number of collision geometries used to describe the collision boundaries of the rigid body.

  • Joint — Rigid body joint in described as bus slRigidBodyJoint with the elements:

    • PositionNumber — Position number of the joint.

    • VelocityNumber — Velocity number of the joint.

    • JointType — Joint type of the joint.

    • JointAxis — Joint axis of the joint.

    • JointToParentTransform — Joint to parent rigid body transform as an homogeneous transformation matrix flattened to a 16-element row vector.

    • MotionSubspace — Motion subspace as a 36-element row vector.

    • ChildToJointTransform — Child-body to rigid body joint transform as an homogeneous transformation matrix flattened to a 16-element row vector.

  • ParentIndex — Body index of parent rigid body in the rigid body tree.

  • ParentFrameTransform — Transformation of the parent frame with respect to the parent body root as an homogeneous transformation matrix flattened to a 16-element row vector..

• NumBodies — Number of bodies in the rigid body tree.

• PositionNumber — Position number of the rigid body tree.

• VelocityNumber — Velocity number of the rigid body tree.

• VelocityDoFMap — Velocity degree-of-freedom map.

• PositionDoFMap — Position degree-of-freedom map.

• Base — Base body described as a bus slRigidBody.

• Gravity — Gravitational acceleration experienced by robot.

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Rigid body tree — Rigid body tree

twoJointRigidBodyTree (default) | rigidBodyTree object

Specify a rigid body tree as a rigidBodyTree object.

You can use the loadrobot function to load a model from the Robot Library, or use the importrobot function to import robot models from Simscape Multibody models or robot model files such as URDFs.

The default value, twoJointRigidBodyTree is a helper function that generates a rigid body tree model with two bodies and two joints.

Simulate using — Type of simulation to run

Code generation (default) | Interpreted execution

• Code generation — Simulate model using generated C code. The first time you run a simulation, Simulink generates C code for the block. The block reuses the C code for subsequent simulations, as long as the model does not change.

• Interpreted execution — Simulate model using the MATLAB interpreter. For more information, see Interpreted Execution vs. Code Generation (Simulink).

More About

Configure Rigid Body Tree Bus

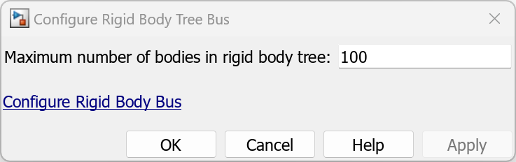

To configure the maximum number of bodies in a rigid body tree, click Configure Rigid Body Tree Bus in the block mask to open the Configure Rigid Body Tree Bus dialog box, and set the Maximum number of bodies in rigid body tree parameter. The default value is 100.

Configure Rigid Body Bus

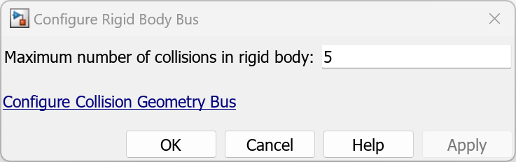

To configure the maximum number of collisions for rigid bodies of the rigid body tree, click Configure Rigid Body Bus in the Configure Rigid Body Tree Bus dialog box to open the Configure Rigid Body Bus dialog box, and set the Maximum number of collisions in rigid body parameter. The default value is 5.

To configure the maximum number of vertices in the collision geometries of the rigid bodies, click Configure Collision Geometry Bus in the block mask to open the Configure Collision Geometry Bus dialog box. See Configure Collision Geometry Bus for more information.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

The Rigid Body Tree block supports code generation with dynamic memory allocation disabled. For more information about disabling dynamic memory allocation, see Dynamic memory allocation in MATLAB functions (Simulink).

Version History

Introduced in R2026a
