Battery Passive Cell Balancing
This example shows how to balance a battery with two cells connected in series by using a passive cell balancing algorithm. The initial state-of-charge (SOC) for the two cells are equal to 0.7 and 0.75. The balancing procedure depends on the cell voltages. Alternatively, you can use the SOC values for balancing. When the balancing is active, a bleeding resistor switches on to bleed the cells with higher charge. You can use the objects and functions in the Battery Pack Model Builder to generate more complex battery packs.

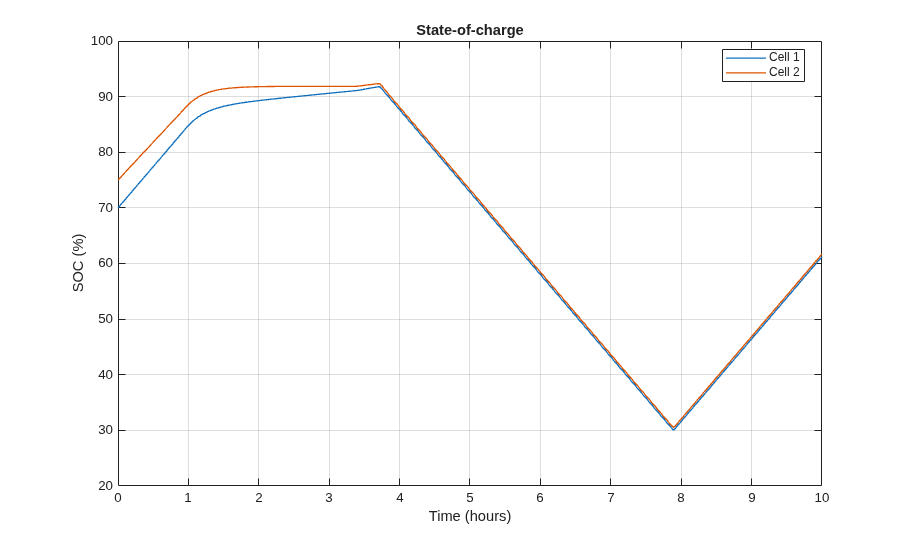

The plot below shows the cell state-of-charge values.
Results from Real-Time Simulation
This example has been tested on a Speedgoat Performance real-time target machine with an Intel® 3.5 GHz i7 multi-core CPU. This model can run in real time with a step size of 70 microseconds.
