Build Model of Battery Pack with Multi-Module Cooling Plate
This example shows how to create and build a Simscape™ system model of a pack with a multi-module cooling plate by using Simscape™ Battery™ software. Large cooling plates that span across several battery modules are common in the design of battery systems in the automotive and consumer electronics sector. In this example, you thermally couple several modules to a single battery cooling plate. To create the system model of a battery
Pack, you must first create the
ModuleAssembly objects that comprise the battery pack, and then use the
buildBattery function. This function creates a library in your working folder that contains a system model block of a battery pack. Use this model as reference in your simulations. You can modify the run-time parameters for this model block, such as the battery cell resistance or the battery open-circuit voltage, after you create the model. To define the run-time parameters, specify them in the block mask of the generated Simscape models or use the
MaskParameters argument of the
To use the functions and objects in Simscape Battery, first import the required Simscape Battery package.
Create Battery Pack Object
To create a battery pack object, you must first design and create the foundational elements of the battery pack.

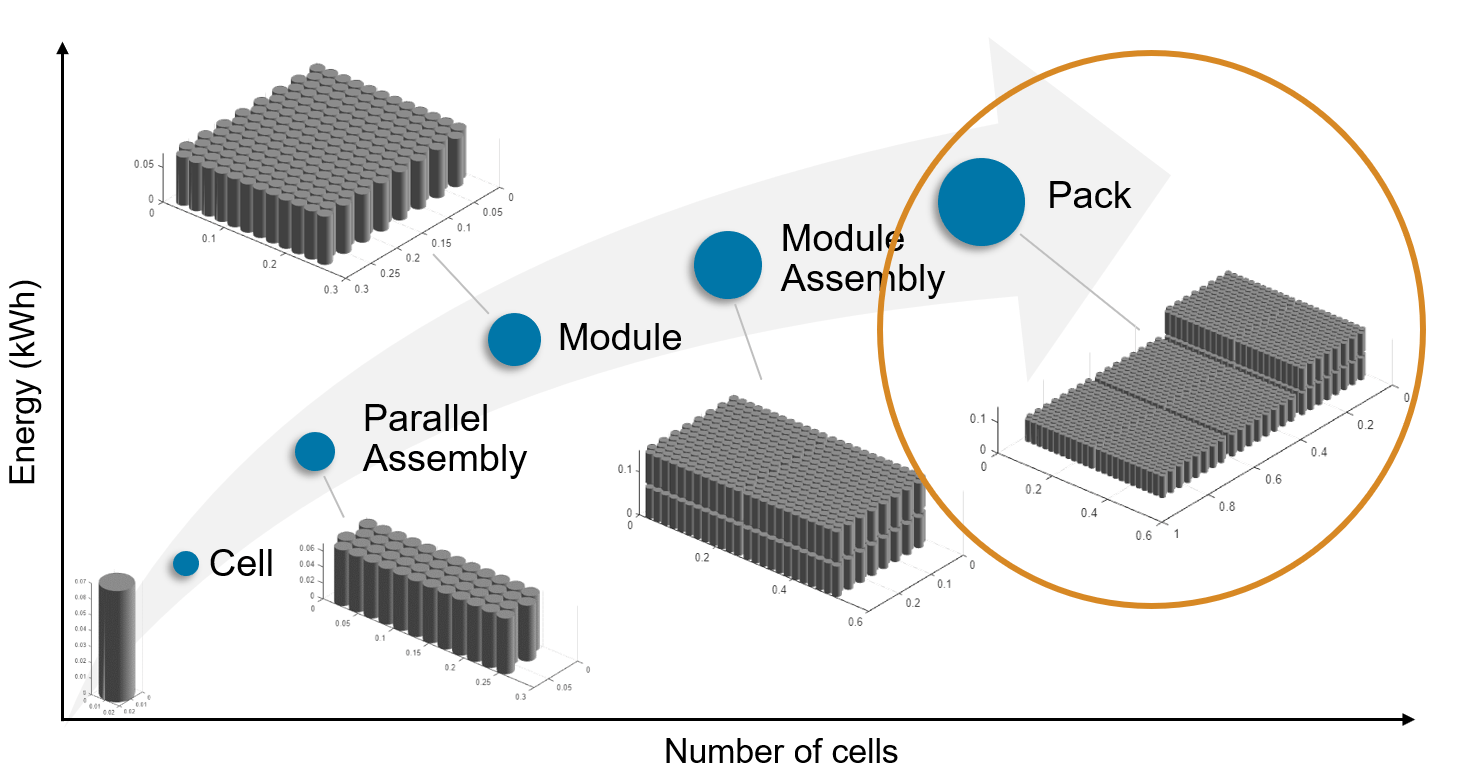

A battery pack comprises multiple battery module assemblies. These module assemblies, in turn, comprise a number of battery modules connected electrically in parallel or series. You can set the specific topological configuration or geometrical arrangement of the cells inside each module at the parallel assembly level. This figure shows the hierarchy of a battery pack object in a bottom-up view:
To create the
Pack object, first create a
Cell object with a cylindrical format. The
CylindricalGeometry object defines the cylindrical geometrical arrangement of the battery cell. To specify the height and radius, set the
Radius properties, respectively, of the
cylindricalgeometry = CylindricalGeometry;
Now use this
CylindricalGeometry object to create a cylindrical battery cell.
batterycell = Cell(Geometry=cylindricalgeometry)
batterycell = Cell with properties: Geometry: [1×1 simscape.battery.builder.CylindricalGeometry] CellModelOptions: [1×1 simscape.battery.builder.CellModelBlock] Mass: [1×1 simscape.Value] Capacity: [1×1 simscape.Value] Energy: [1×1 simscape.Value] Show all properties
Change the fundamental cell model block of the
Pack object to use the Battery Equivalent Circuit block. Specify the
CellModelBlockPath property of the
CellModelOptions property inside the
batterycell.CellModelOptions.CellModelBlockPath = "batt_lib/Cells/Battery Equivalent Circuit";
Cell object to simulate the thermal effects of the battery cell by using a simple 1-D model. To simulate the thermal effects of the battery cell, in the
BlockParameters property of the
CellModelOptions object of the
Cell object, set the
ThermalModel property to
"LumpedThermalMass". You can define the thermal boundary conditions for battery parallel assemblies and modules only if you first define a thermal model at the cell level.
batterycell.CellModelOptions.BlockParameters.ThermalModel = "LumpedThermalMass";
A parallel assembly comprises multiple battery cells connected electrically in parallel under a specific topological configuration or geometrical arrangement. In this example, you create a parallel assembly of three cylindrical cells.
To create the
ParallelAssembly object, use the
Cell object and specify the
batteryparallelassembly = ParallelAssembly(Cell=batterycell, ... NumParallelCells=3, ... Rows=3, ... Topology="Square");
A battery module comprises multiple parallel assemblies connected electrically in series. In this example, you create two battery modules that are each comprised of four parallel assemblies. The first module uses grouped and lumped model resolution settings. The second module uses a detailed module resolution. The latter module provides more battery states that are useful for battery control.
To create these
Module objects, use the
ParallelAssembly object and specify the
batterymodulelumped= Module(ParallelAssembly=batteryparallelassembly, ... NumSeriesAssemblies=4); batterymodulegrouped1 = Module(ParallelAssembly=batteryparallelassembly, ... NumSeriesAssemblies=4, ... SeriesGrouping=[1 3], ... ParallelGrouping=[3 1]); batterymodulegrouped2 = Module(ParallelAssembly=batteryparallelassembly, ... NumSeriesAssemblies=4, ... SeriesGrouping=[3 1], ... ParallelGrouping=[1 3]);
A battery module assembly comprises multiple battery modules connected in series or in parallel. In this example, you create a battery module assembly of eight different modules, with a gap of 0.01 m between each module. By default, the
ModuleAssembly object electrically connects the modules in series.
To create the
ModuleAssembly object, use the
Module object and specify the
batterymoduleassembly1 = ModuleAssembly(Module=[batterymodulegrouped1,repmat(batterymodulelumped,1,6),batterymodulegrouped2], ... InterModuleGap=simscape.Value(0.01,"m"));
You now have all the foundational elements to create your battery pack. A battery pack comprises multiple module assemblies connected in series or in parallel. In this example, you create a battery pack of five identical module assemblies with a gap of 0.01 m between each module assembly and a coolant thermal path.
To create the
Pack object, use the
ModuleAssembly object and specify the
CoolantThermalPath and the
batterypack = Pack(ModuleAssembly = repmat(batterymoduleassembly1,1,5), ... CoolantThermalPath="CellBasedThermalResistance", ... InterModuleAssemblyGap=simscape.Value(0.01,"m"));
Add Cooling Plate to Pack
To add a single cooling plate across all battery modules, you must first define a cooling plate boundary. Set the
CoolingPlate property of the
batterypack object to
batterypack.CoolingPlate = "Bottom";
To specify the cooling plate block from the Simscape Battery library, use the
CoolingPlateBlockPath property. In this example, you use the Parallel Channels block to model the cooling plate.
batterypack.CoolingPlateBlockPath = "batt_lib/Thermal/Parallel Channels";
To obtain a higher resolution in the temperature and the state of charge (SOC) signals for battery control, you can use different model resolutions for each module inside the pack. To parameterize the cooling plate, you can visualize the thermal node information at the pack level. This thermal node information propagates to the generated model after you use the
Alternatively, to individually define cooling plates for each module assembly, modify the
CoolingPlateBlockPath properties of each module assembly inside the

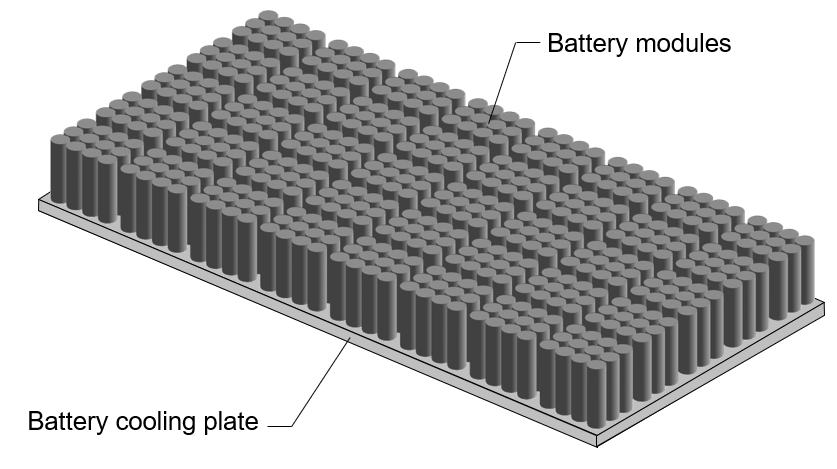

batterypack object. This figure shows a system with a cooling plate at the bottom surface of a battery.
View Information About Thermal Node Connectivity
To visualize the thermal connectivity information of the
batterypack object, use the
thermalNodes = batterypack.ThermalNodes.Bottom; disp(thermalNodes)
Locations: [70×2 double] Dimensions: [70×2 double] NumNodes: 70
This property contains information about the thermal interface between the battery and the cooling plate, including the number of nodes, the location of the interface areas in cartesian coordinates, and the dimensions of each interface area.
Visualize Battery Pack and Check Model Resolution
To obtain the number of Battery Equivalent Circuit blocks used for the simulation, use the
NumModels property of your

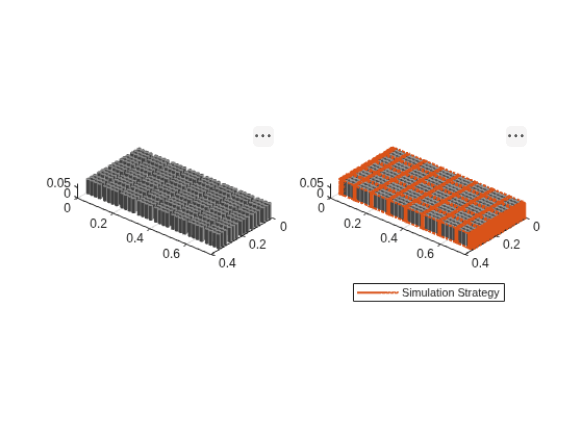

To visualize the
Pack object before you build the system model and to view its model resolution, use the
BatteryChart object. Create the figure to visualize your
f = uifigure(Color="w"); tl = tiledlayout(1,2,Parent=f,TileSpacing="Compact");
BatteryChart object to visualize the battery module. To view the model resolution of the pack, set the
SimulationStrategyVisible property of the
BatteryChart object to
nexttile(tl) batteryPackChart1 = BatteryChart(Parent=tl,Battery=batterypack); nexttile(tl) batteryPackChart2 = BatteryChart(Parent=tl,Battery=batterypack,SimulationStrategyVisible="On");
Build Simscape Model of
After you create your battery objects, you need to convert them into Simscape models to use them in block diagrams. You can then use these models as references for system integration and requirement evaluation, cooling system design, control strategy development, hardware-in-the-loop, and many more applications.
To create a library that contains the Simscape Battery model of the
Pack object, use the
buildBattery function. To create a script where you can individually define the coolant thermal resistance parameters for each thermal connection, as well as all other parameters within your battery, set the
MaskParameters argument of the
buildBattery function to
packWithMultiModuleCoolingPlate SLX library files in your working folder. The
packWithMultiModuleCoolingPlate_lib library contains the Modules and ParallelAssemblies sublibraries.
buildBattery(batterypack,LibraryName="packWithMultiModuleCoolingPlate", ... MaskParameters="VariableNames", ... MaskInitialTargets="VariableNames");
To access the Simscape models of your M
ParallelAssembly objects, open the
packWithMultiModuleCoolingPlate_lib SLX file, double-click the sublibrary, and drag the Simscape blocks in your model.

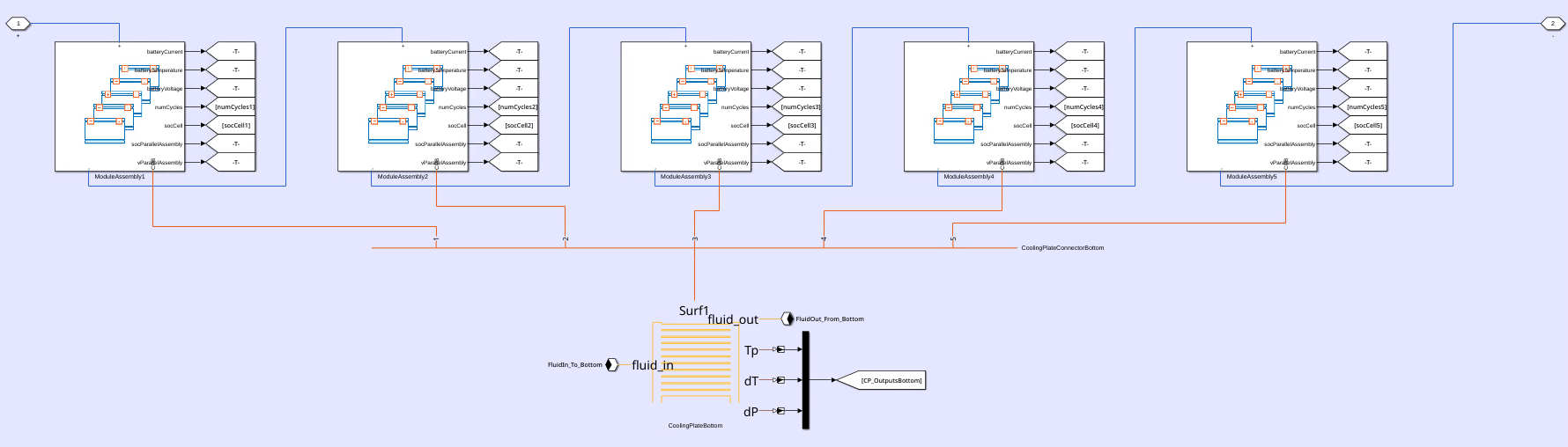

packWithMultiModuleCoolingPlate library contains the Simscape models of your
ModuleAssembly objects. The build proces automatically generates the Simscape model of the battery pack. This model includes the domain connections between module assemblies and cooling plates. The software also adds a cooling plate connector to concatenate arrays of thermal nodes from all module assembly blocks, for compatability with the cooling plate block.
