Heat Sink Using PS State-Space Block

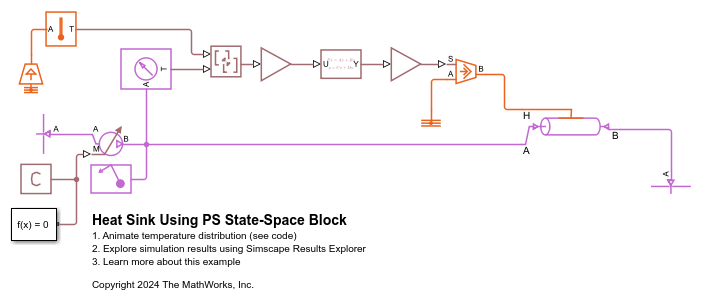

This example shows how the PS State-Space block can be used to model a heat sink in air. The heat sink is modeled as rods with distributed masses along the length of the rods fixed to a base. The rods extend from the surface that undergoes conduction along its length and convection with air in the direction perpendicular to its length.

Model

Simulation Results from Simscape Logging
