hisl_0070: Placement of requirement links in a model

R2026b

Establish bidirectional traceability between requirements and model elements through requirement links

Usage: High-Integrity System Modeling

Guideline ID: hisl_0070

Rules

hisl_0070: Placement of requirement links in a model

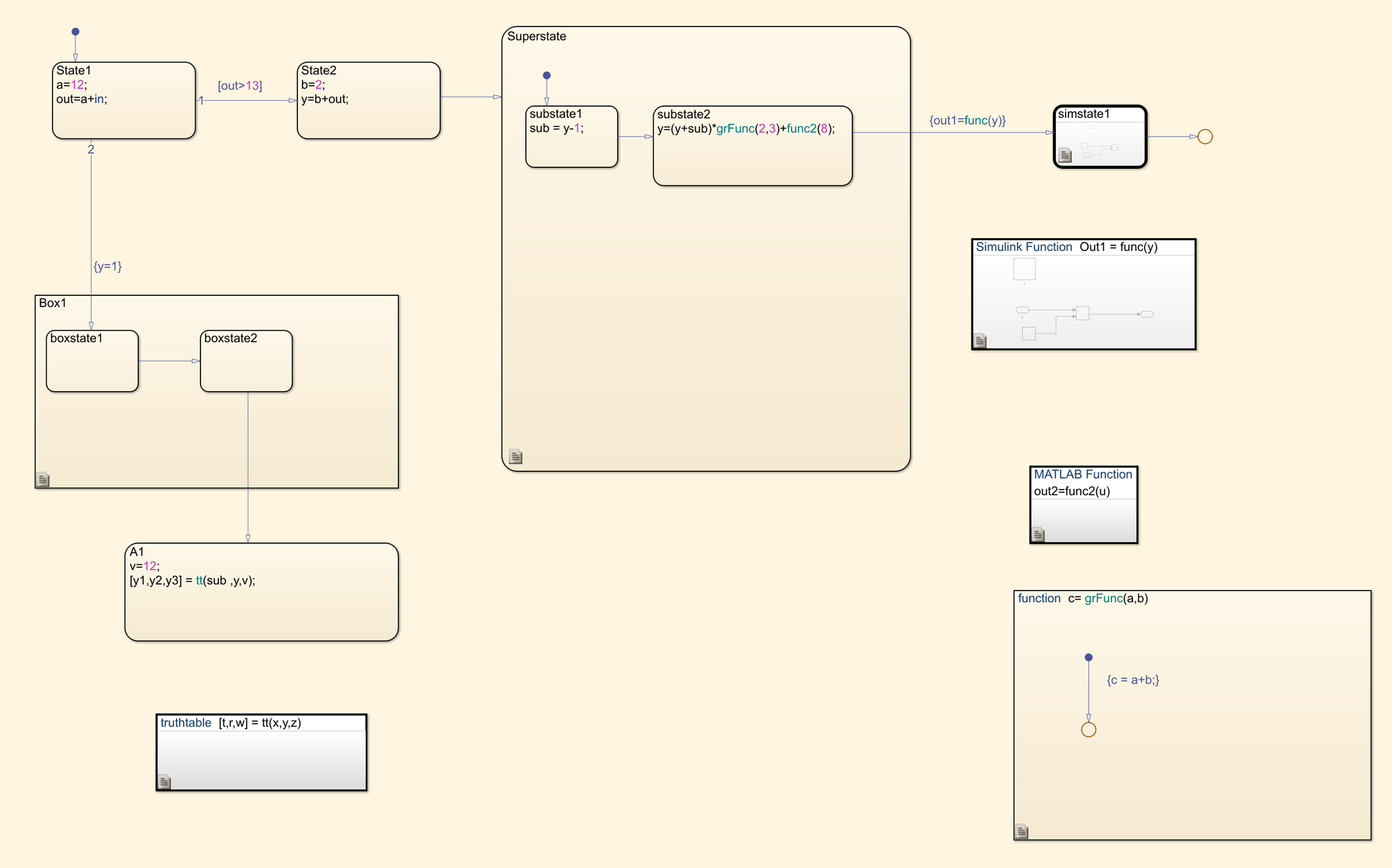

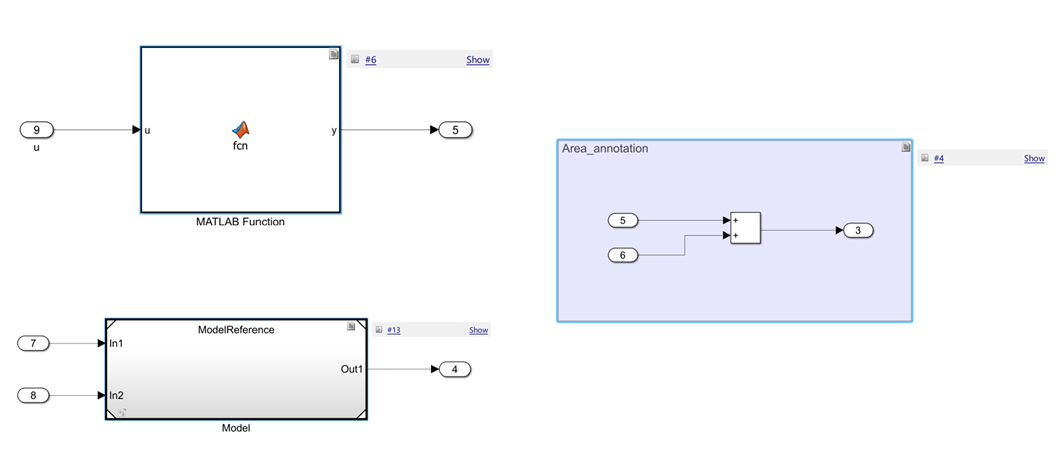

Establish bidirectional traceability between model requirements and the model elements that implement them. Apply requirement links to the lowest-level components. Model elements that do not affect model behavior or generated code are exempt from requirement linking. Rationale Establishing requirement links at the component level captures the relationship of model elements. In addition, maintainability improves because the need to update requirement links for minor logic changes is reduced. Verification Check for components that are not linked to requirements (Simulink Check) Example — Correct Requirement links in Simulink® placed on MATLAB® Function, Model Reference, and Area Annotation components. Example — Correct Requirement links in Stateflow® placed on a chart, superstate, box, Simulink function, graphical function, Simulink State, MATLAB Function, and Truth Table components.

Tips

• Use Requirements Toolbox™ to trace between the model and the requirements from which the model was developed. Apply user tags (Requirements Toolbox) to define model elements as derived and/or safety requirements.

• To reduce the number of requirements that are linked to a model, apply requirements at the component-level. A component contains a group of model elements, for example:

  • In Simulink, a component is a top-level block diagram, subsystem, MATLAB function, or area annotation.

  • In Stateflow, a component is a chart, superstate, box, Simulink function, graphical function, Simulink State, MATLAB Function, or Truth Table.

  • In MATLAB, a component is a function.

• Components that contain only these model elements are exempt from requirement linking:

  • Model Info, DocBlock, Commented out model elements, or System Requirements (Requirements Toolbox) blocks

  • Commented out components

• When a linked component contains a nonexempt child model element, the child implements the associated requirement either in part or whole.

Industry Standards

• DO-331, Section MB.6.3.2.f - 'Low-level requirements trace to high-level requirements'

• IEC 61508-3, Table A.2 (12) - 'Computer-aided specification and design tools'
  IEC 61508-3, Table A.2 (9) - 'Forward traceability between the software safety requirements specification and software architecture'
  IEC 61508-3, Table A.2 (10) - 'Backward traceability between the software safety requirements specification and software architecture'
  IEC 61508-3, Table A.4 (8) - 'Forward traceability between the software safety requirements specification and software design'

• IEC 62304, 5.2 - 'Software requirements analysis'

• ISO 26262-6, Table 2 (1a) - 'Natural language'
  ISO 26262-6, Table 3 (1b) – 'Restricted size and complexity of software components'
  ISO 26262-6, Table 5 (1a) – 'Natural language'
  ISO 26262-6: 7.4.2.a - 'The verifiability of the software architectural design'
  ISO 26262-6, Table 7 (1j) – 'Requirements-based test'
  ISO 26262-6, Table 7 (1k) – 'Interface test'
  ISO 26262-6, Table 8 (1a) – 'Analysis of requirements'

• EN 50128, Table A.3 (23) - 'Modeling supported by computer aided design and specification tools'

• EN 50657, Table A.3 (23) - 'Modeling supported by computer aided design and specification tools'
  EN 50657, Table A.3 (18) – 'Modeling'

• EN 50716, Table A.9 (6) – 'Traceability'

Version History

Introduced in R2017b

R2026b: B and C sub IDs removed

The guideline was modified to remove the B and C sub IDs and their associated industry standard references. The content in these IDs was reorganized into the new hisl_0080: Establish requirement granularity in a model, hisc_0001: Placement of requirement links in an architecture model, and hisc_0002: Establish requirement granularity in an architecture model guidelines.

R2026a: Added EN 50657

The industry standards were updated to include EN 50657.
