Goto Tag Visibility
Define scope of Goto block tag
Simulink / Signal Routing

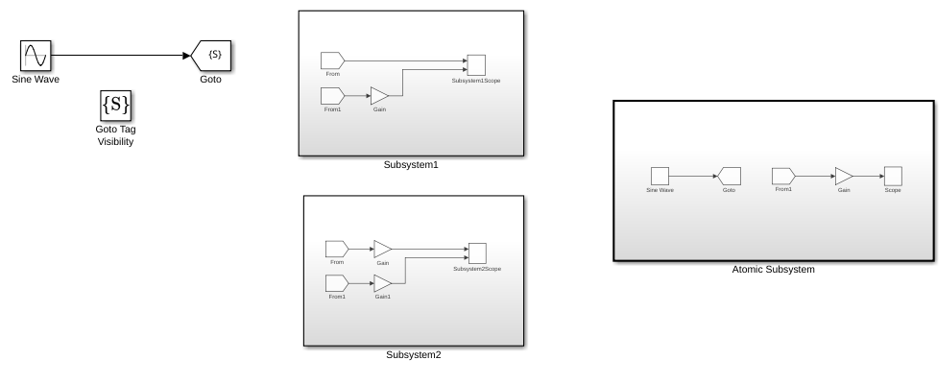

The Goto Tag Visibility block defines the accessibility of
Goto block tags that have
scoped visibility. The
value you specify for the Goto tag block parameter is accessible by
From blocks in the same subsystem that contains the Goto Tag
Visibility block and in subsystems below it in the model hierarchy.
A Goto Tag Visibility block is required for Goto blocks
whose Tag Visibility parameter value is
No Goto Tag Visibility block is needed if the tag visibility is either
global. The block shows the tag name
enclosed in braces (
Goto block in a masked system is visible only in that subsystem and
in the nonvirtual subsystems it contains. Simulink® generates an error if you run or update a diagram that has a
Goto Tag Visibility block at a lower level in the block diagram
than the corresponding
Goto block in the masked subsystem.
In the Simulink Editor, select the Goto Tag Visibility block to highlight the corresponding Goto and From blocks. When a corresponding From or Goto block is not in the current diagram, the Subsystem block that contains the block is highlighted.
To show a corresponding block in an open diagram or new tab, select the Goto Tag Visibility block and pause on the ellipsis. Then, select Related Blocks from the action bar. When multiple blocks correspond to the selected block, a list of related blocks opens. You can filter the list of related blocks by entering a search term in the text box. After you select a related block from the list, window focus goes to the open diagram or new tab that shows the related block.
Goto tag — Goto block tag whose visibility is defined by the location of this block
A (default) | ...
The Goto block tag whose visibility is defined by the
location of this block. From and Goto blocks
using the specified tag must be in the same subsystem or at any level in the
model hierarchy below the Goto Tag Visibility block that does
not entail crossing a nonvirtual subsystem boundary, in other words, the
boundary of an atomic, conditionally executed, or function-call subsystem or
a model reference. A scoped tag name is enclosed in braces
If you use multiple From and Goto Tag Visibility blocks to refer to the same Goto tag, you can simultaneously rename the tag in all of the blocks. Use the Rename All button in the Goto block dialog box. Alternatively, when you change the tag on the Goto block icon, propagate the new name to all corresponding From and Goto Tag Visibility blocks by pressing Shift+Enter.
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
HDL Code Generation
Generate Verilog and VHDL code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.
Design and simulate fixed-point systems using Fixed-Point Designer™.
Introduced before R2006a
