Slider Gain
Vary scalar gain using slider
Libraries:
Simulink /
Math Operations
Description
The Slider Gain block performs a scalar gain that you can modify during simulation. Modify the gain using the slider parameter.
Examples

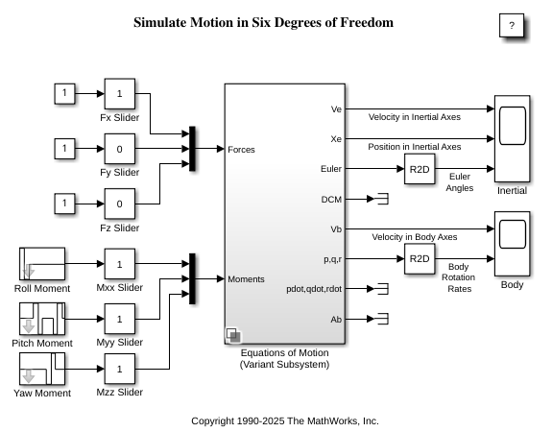

Simulate Motion in Six Degrees of Freedom (6DOF)
Model six degrees of freedom (6DOF) in Simulink®. The model in this example replicates the motions experienced by an object or vehicle in model in this example replicates axes of rotation (pitch, roll, and yaw) and three axes of translation (heave, surge, and sway). You can switch between using Euler angles and quaternions to model the equations of motion using the representation parameter of the Variant Subsystem block.
Ports
Input
Port_1 — Input signal
scalar | vector | matrix
The Slider Gain block accepts real or complex-valued scalar, vector, or matrix input. The block supports fixed-point data types.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Output
Port_1 — Input multiplied by gain
scalar | vector | matrix
The Slider Gain block outputs the input multiplied by a constant gain value. When the input to the block is real and gain is complex, the output is complex.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Parameters
Slider gain — Gain value
0
(default) | real value
Chose the gain value applied to the input.
Programmatic Use
Block Parameter:
gain |
Type: character vector |
Values: real scalar |
Default:
'1' |
Low — Lower limit of slider range
0
(default) | real value
Specify the lower limit of the slider range.
Programmatic Use
Block Parameter:
low |
Type: character vector |
Values: real scalar |
Default:
'0' |
High — Upper limit of slider range
2
(default) | real value
Specify the upper limit of the slider range.
Programmatic Use
Block Parameter:
high |
Type: character vector |
Values: real scalar |
Default:
'2' |
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.
Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
Version History
Introduced before R2006a
