Trigger
Add trigger or function port to subsystem or model
Libraries:
Simulink /
Ports & Subsystems
HDL Coder /
Ports & Subsystems
Description
The Trigger block adds an external signal or message port to control the execution of a subsystem or a model. To enable this functionality, add this block to a Subsystem block or at the root level of a model that is referenced in a Model block.
Then, configure the Trigger block to execute a subsystem or model:

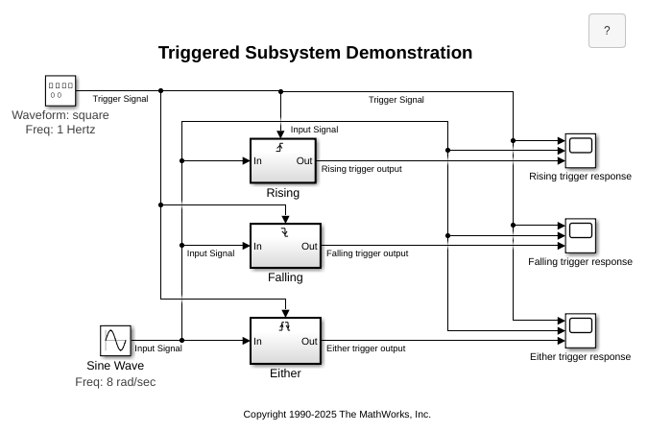

Once at each time step, when the value of the control signal changes in a way that you specify.
Multiple times during a time step, when the control signal is a function-call event from a Stateflow® chart, Function-Call Generator block, or S-Function block.
Based on messages received at the control port.
Examples

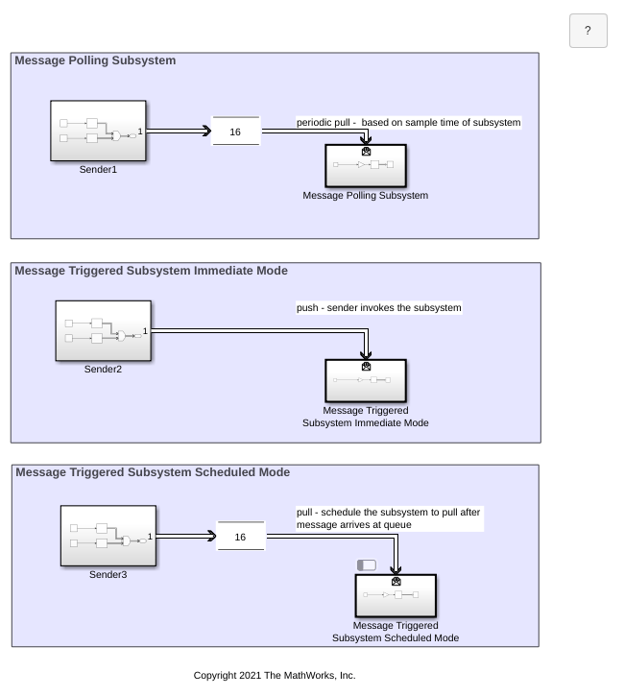

Using Message Polling and Message Triggered Subsystems
Demonstrate and compare Message Triggered Subsystems and Message Polling Subsystems.

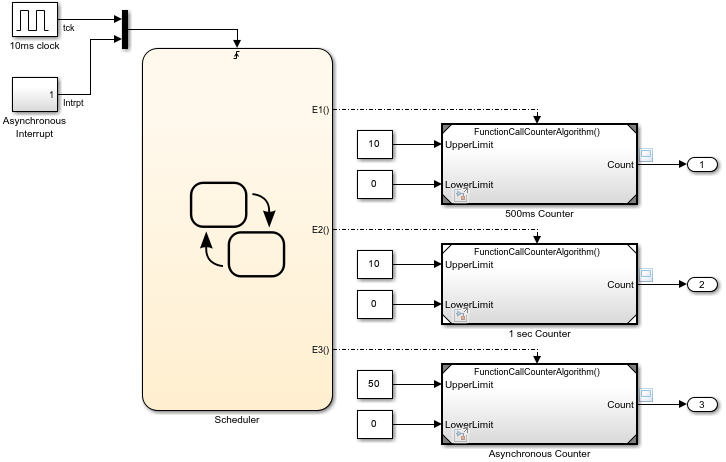

Model Reference Function-Call
Use a Model block that is explicitly triggered by means of its function-call trigger port.

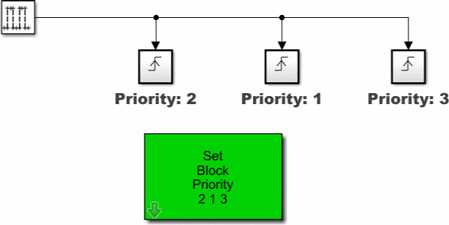

Set Priority in Execution Order of Blocks
Set block priority to change execution order during simulation.
Bang-Bang Control Using Temporal Logic
Use Stateflow® to model a bang-bang temperature control system for a boiler. The boiler dynamics are modeled in Simulink®.

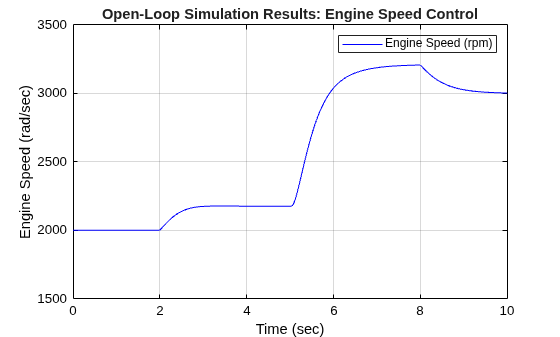

Model Engine Timing Using Triggered Subsystems
Model a four-cylinder spark ignition internal combustion engine from the throttle to the crankshaft output using triggered subsystems. In this example, the sldemo_engine model is based on [1].
Engine Timing Model with Closed Loop Control
Develop and implement a closed loop control algorithm for the open loop engine model described in Model Engine Timing Using Triggered Subsystems. In this example, the model sldemo_enginewc
contains a controller that regulates engine speed using a fast throttle actuator such that changes in load torque have minimal effect. The controller is implemented using a discrete PI controller.
Ports
Output
Port_1 — Value that describes control signal or message payload
scalar | vector | matrix
If the Trigger type is
rising
,
falling
,
either
, or
function-call
, the port outputs a value
that identifies a control signal, returned as a scalar or vector. For
each element of the input signal, the value at a given time step
is:
1
for a signal that causes a rising trigger-1
for a signal that causes a falling trigger2
for a function-call event0
in all other cases
If the Trigger type is
message
, the port outputs data extracted
from message received at the control port.
Dependencies
To enable this port, select Show output port
or set Trigger type to
message
.
Data Types: double
| int8
Parameters
Main
Trigger type — Select the type of control signal
rising
(default) | falling
| either
| function-call
| message
Select the type of control signal that executes a subsystem or model.
rising
— Trigger execution of subsystem or model when the control signal rises from a negative or zero value to a positive value. If the initial value is negative, a rising signal to zero triggers execution.falling
— Trigger execution of subsystem or model when the control signal falls from a positive or a zero value to a negative value. If the initial value is positive, a falling signal to zero triggers execution.either
— Trigger execution of subsystem or model when the control signal is either rising or falling.function-call
— Execute subsystem or model when the control port receives a function-call event from a Stateflow chart, Function-Call Generator block, S-Function block, or Hit Crossing block.message
— Trigger execution of subsystem when a message is available at the control port. The block must be inside a subsystem.
Programmatic Use
Block Parameter:
TriggerType |
Type: character vector |
Values:
'rising' | 'falling' |
'either' |
'function-call' |
'message' |
Default:
'rising' |
Treat as Simulink function — Create Simulink Function block
off
(default) | on
Select this parameter to create a Simulink Function block by configuring a Subsystem block that is callable with arguments from a function caller. The Trigger block must reside within the subsystem. You can edit the function prototype that displays on the block face to specify input and output arguments for the block.
Clear this parameter to remove the configuration.
Dependencies
To display and enable this parameter, set Trigger
type to
function-call
.
Programmatic Use
Block Parameter:
IsSimulinkFunction |
Type: character vector |
Values:
'off' | 'on' |
Default:
'off' |
Execute function call asynchronously — Whether caller request to call function can wait for service execution
off
(default) | on
Specify whether to execute the Simulink Function block asynchronously for a subsystem containing this Trigger port block.
Select this parameter to model asynchronous execution where the caller (client) makes a request to call the function (server). The function is executed based on the ordering defined in the Schedule Editor and then returns the output arguments to the caller.
Clear this parameter to model synchronous execution where the caller calls the function and the function runs immediately then returns the output arguments to the caller.
Dependencies
To display and enable this parameter, set Trigger
type to function-call
,
select Treat as a Simulink Function, and set
Function visibility to
port
.
Programmatic Use
Block Parameter:
AsynchronousFunction |
Type: character vector |
Values:
'on' | 'off' |
Default:
'off' |
Function name — Specify function name for Simulink Function block
f
(default) | function name
Specify the function name for a Simulink Function block. Alternatively, you can specify the name by editing the function prototype on the face of the block.
Dependencies
To display and enable this parameter, set Trigger
type to function-call
and
select Treat as a Simulink Function.
Programmatic Use
Block Parameter:
FunctionName |
Type: character vector |
Values:
'f' | function name in quotes |
Default:
'f' |
Function visibility — Select scope visibility of function
scoped
(default) | global
| port
Select scope of Simulink Function block within subsystem or model.
scoped
— Limit accessibility of function to:Hierarchic level containing the Simulink Function block and levels below.
One hierarchical level above with qualification.
global
— Function accessible from any part of the model hierarchy.port
— Function accessible only through an exporting function port created by a Function Element block.
Dependencies
To display and enable this parameter, set Trigger
type to function-call
and
select Treat as a Simulink Function.
Programmatic Use
Block Parameter:
FunctionVisibility |
Type: character vector |
Values:
'scoped' | 'global' |
'port' |
Default:
'scoped' |
Scope to port — Specify name of exporting function port
''
(default) | character vector
For a Simulink Function block with port visibility, specify the name of the exporting function port created by a Function Element block through which the function can be called.
Example: 'ServerPort'
Dependencies
To display and enable this parameter, set Trigger
type to function-call
,
select Treat as a Simulink Function, and set
Function visibility to
port
.
Programmatic Use
Block Parameter:
ScopeName |
Type: character vector |
Values: port name in quotes |
Default:
'' |
Enable variant condition — Controls activating the variant control (condition)
off
(default) | on
Control activating the variant control (condition) defined with the Variant Control parameter.
Select this parameter to activate variant control of the subsystem. Selecting this parameter:
Enables the Variant control parameter.
Displays a variant badge on the face of the block indicating that variant conditions are enabled.
Clear this parameter to deactivate variant control of the subsystem.
Dependencies
To display and enable this parameter, set Trigger
type to function-call
and
select Treat as Simulink function.
Programmatic Use
Block Parameter:
Variant |
Type: character vector |
Values:
'off' | 'on' |
Default:
'on' |
Variant control — Specify variant control (condition) expression
(inherit)
(default) | logical expression
Specify variant control (condition) expression that executes a variant
Simulink Function block when the expression evaluates
to true
.
(inherit)
— Default value for variant control. Inherits the variant condition from the corresponding Function Caller blocks in the model. When Variant Control is set as(inherit)
the value for Generate preprocessor conditionals is inherited automatically from the Function Caller block in the model.logical expression — A logical (Boolean) expression or a
Simulink.VariantExpression
object representing a logical expression. The function is activated when the expression evaluates totrue
.If you want to generate code for your model, define the variables in the expression as
Simulink.Parameter
objects.
Dependencies
To display and enable this parameter, set Trigger
type to function-call
,
select Treat as a Simulink Function, and
select Enable variant condition.
Programmatic Use
Block Parameter:
VariantControl |
Type: character vector |
Values:
'(inherit)' | logical expression |
Simulink.VariantExpression object |
Default:
'(inherit)' |
Generate preprocessor conditionals — Control enclosing variant choices
off
(default) | on
Control enclosing variant choices within C preprocessor conditional statements.
Select this parameter to enclose variant choices within C preprocessor conditional statements (#if) when generating code for an ERT target.
Dependencies
To display and enable this parameter, select Enable variant condition .
Programmatic Use
Block Parameter:
GeneratePreprocessorConditionals |
Type: character vector |
Values:
'off' | 'on' |
Default:
'off' |
States when enabling — Select how to set block state values
held
(default) | reset
| inherit
Select how to set block state values when the subsystem or model is disabled.
held
— Leave the block states at their current values.reset
— Reset the block state values.inherit
— Use theheld
orreset
setting from the parent subsystem initiating the function-call. If the parent of the initiator is the model root, the inherited setting isheld
. If the trigger has multiple initiators, set the parents of all initiators to eitherheld
orreset
.
Dependencies
To enable this parameter, set Trigger Type to
function-call
.
This parameter setting applies only if the model explicitly enables and disables the function-call subsystem. For example:
The function-call subsystem resides in an enabled subsystem. In this case, the model enables and disables the function-call subsystem along with the parent subsystem.
The function-call initiator that controls the function-call subsystem resides in an enabled subsystem. In this case, the model enables and disables the function-call subsystem along with the enabled subsystem containing the function-call initiator.
The function-call initiator is a Stateflow event bound to a particular state. See Control Function-Call Subsystems by Using bind Actions (Stateflow).
The function-call initiator is an S-function that explicitly enables and disables the function-call subsystem. See
ssEnableSystemWithTid
for an example.
Programmatic Use
Block Parameter:
StatesWhenEnabling |
Type: character vector |
Values:
'held' | 'reset' |
'inherit' |
Default:
'held' |
Propagate sizes of variable-size signals — Select when to propagate variable-size signals
During execution
(default) | Only when enabling
Select when to propagate variable-size signals.
During execution
— Propagate variable-size signals at each time step.Only when enabling
— Propagate variable-size signals when executing a Subsystem block or Model block containing an Enable port, Trigger port with Trigger type set tofunction-call
, or Action Port block. When you select this option, sample time must be periodic.
Dependencies
To display and enable this parameter for a Trigger
port block, set Trigger type to
Function-call
.
Programmatic Use
Block Parameter:
PropagateVarSize |
Type: character vector |
Values:
'During execution' | 'Only when
enabling' |
Default:
'During execution' |
Show output port — Control display of output port
off
(default) | on
Control display of an output port for a signal that identifies the trigger signal or function-call event signal.
Select this parameter to display the output port and determine which signal caused the trigger signal or function-call event. The width of the output port signal is the width of the control signal. The signal value is:
1
for a signal that causes a rising trigger-1
for a signal that causes a falling trigger2
for a function-call event0
in all other cases
Clear this parameter to remove the output port.
Dependencies
To display and enable this parameter, set Trigger
type to an option other than
message
.
Programmatic Use
Block Parameter:
ShowOutputPort |
Type: character vector |
Values:
'off' | 'on' |
Default:
'off' |
Output data type — Select output port data type
auto
(default) | double
| int8
Select the output port data type for the signal that identifies the trigger signal or function-call event signal.
auto
— Data type from the port connected to the outputdouble
— Double valueint8
— Integer value
Dependencies
To enable this parameter, select Show output port.
The Trigger block ignores the Data type override setting for the Fixed-Point Tool.
Programmatic Use
Block Parameter:
OutputDataType |
Type: character vector |
Values:
'auto' | 'double' |
'int8' |
Default:
'auto' |
Sample time type — Select calling rate
triggered
(default) | periodic
Select the calling rate for a subsystem or model.
triggered
— Apply to applications that do not have a periodic function-call frequency. A function-call initiator can execute a triggered (aperiodic) function-call subsystem one or more times per time step and can provide a series of aperiodic function-call events.periodic
— A function-call initiator can execute a periodic function-call system only once per time step and must provide a series of periodic function-call events.. A Stateflow chart is an example of a function-call initiator.
Dependencies
To enable this parameter, set Trigger type
to Function-call
.
Programmatic Use
Block Parameter:
SampleTimeType |
Type: character vector |
Values:
'triggered' |
'periodic' |
Default:
'triggered' |
Sample time — Specify time interval
1
(default) | Ts
| [Ts, To]
| -1
Specify the time interval between function calls to a subsystem or model containing this Trigger port block. If the actual calling rate for the subsystem or model differs from the time interval this parameter specifies, the software displays an error.
Ts
— Scalar whereTs
is the time interval[Ts, To]
— Vector whereTs
is the time interval andTo
is the initial time offset-1
— Inherited time interval from the control signal
Dependencies
To enable this parameter, set Trigger type
to function-call
and Sample
time type to
periodic
.
Programmatic Use
Block Parameter:
SampleTime |
Type: character vector |
Values:
'1' | 'Ts' |
'[Ts, To]' |
'-1' |
Default:
'1' |
Enable zero-crossing detection — Control zero-crossing detection
on
(default) | off
Select this parameter to detect zero crossings.
Dependencies
To enable this parameter, set Trigger type to
rising
,
falling
, or
either
.
Programmatic Use
Block Parameter:
ZeroCross |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Initial trigger signal state — Select the initial state of the trigger signal
compatibility (no trigger on first
evaluation)
(default) | zero
| positive
| negative
Select the initial state of the trigger control signal.
compatibility (no trigger on first evaluation)
— No trigger at the first evaluation of trigger signal. If you choose this option and the Trigger block is in a subsystem where the states are reset, the block does not reset.zero
— Zero. Helps to evaluate a rising or falling trigger signal at the first time step.positive
— Positive value. Helps to evaluate a falling trigger signal at the first time step.negative
— Negative value. Helps to evaluate a rising trigger signal at the first time step.
Dependencies
To display and activate this parameter, set Trigger
type to rising
,
falling
, or
either
.
Programmatic Use
Block Parameter:
InitialTriggerSignalState |
Type: character vector |
Values:
'compatibility (no trigger on first
evaluation)' | 'zero' |
'positive' |
'negative' |
Default:
'compatibility (no trigger on first
evaluation)' |
Trigger time — Specify when message input triggers execution of subsystem
on message
available
(default) | on sample time hit
For a subsystem triggered by message input, specify timing of execution.
on message available
— Trigger execution of subsystem and pull messages whenever one or more messages are available at the control port.on sample time hit
— At each time step, check whether a message is available at the control port. If so, pull one message and trigger execution of subsystem. If no message is available, do not execute subsystem at that time step.
Dependencies
To display and activate this parameter, set Trigger
type to message
.
Programmatic Use
Block Parameter:
TriggerTime |
Type: character vector |
Values: 'on
message available' | 'on sample time
hit' |
Default: 'on
message available' |
Schedule as aperiodic partition — Specify immediate mode or scheduled mode for execution
on
(default) | off
For a subsystem triggered by message availability, specify execution mode.
Clear this parameter for immediate mode, in which the subsystem executes as soon as a message is available at the control port, which pushes the message to the subsystem without a queue buffering the message.
Select this parameter for scheduled mode, which allows subsystem execution to be deferred after a specific Simulink® task while staying at the same time step.
Dependencies
To display and activate this parameter, set Trigger
type to message
and
Trigger time to on message
available
.
Programmatic Use
Block Parameter:
ScheduleAsAperiodic |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Signal Attributes
Port dimensions — Specify dimensions for the trigger signal
1
(default) | [n]
| [m n]
| -1
Specify dimensions for the trigger signal attached externally a Model block and passed into the referenced model.
1
— Scalar signal[n]
— Vector signal of widthn
[m n]
— Matrix signal havingm
rows andn
columns-1
— Inherited dimensions
Dependencies
To display and enable this parameter for a Trigger
port block at the root-level of a model, set Trigger
type to rising
,
falling
, or
either
.
Programmatic Use
Block Parameter:
PortDimensions |
Type: character vector |
Values:
'1' | '[n]' |
'[m n]' | -1 |
Default:
'1' |
Trigger signal sample time — Specify time interval
-1
(default) | Ts
| [Ts, To]
Specify time interval between block method executions for the block driving the trigger signal.
-1
— Inherited time intervalTs
— Scalar whereTs
is the time interval[Ts, To]
— Vector whereTs
is the time interval andTo
is the initial time offset
Dependencies
To display and enable this parameter for a Trigger
port block at the root-level of a model, set Trigger
type to rising
,
falling
, or
either
.
Programmatic Use
Block Parameter:
TriggerSignalSampleTime |
Type: character vector |
Values:
'-1' | 'Ts' |
'[Ts, To]' |
Default:
'-1' |
Minimum — Specify minimum output value for the trigger signal
[]
(default) | real scalar
Specify minimum value for the trigger signal attached externally to a Model block and passed to the inside of the block.
The software uses this value to perform:
Simulation range checking. See Specify Signal Ranges.
Automatic scaling of fixed-point data types.
Optimization of generated code. This optimization can remove algorithmic code and affect the results of some simulation modes such as SIL or external mode. See Optimize using the specified minimum and maximum values (Embedded Coder).
Dependencies
To display and enable this parameter for a Trigger
port block at the root-level of a model, set Trigger
type to rising
,
falling
, or
either
.
Programmatic Use
Block Parameter:
OutMin |
Type: character vector |
Values:
'[]' | real scalar in quotes |
Default:
'[]' |
Maximum — Specify maximum output value for the trigger signal
[]
(default) | real scalar
Specify maximum value for the trigger signal attached externally to a Model block and passed to the inside of the block.
The software uses this value to perform:
Simulation range checking. See Specify Signal Ranges.
Automatic scaling of fixed-point data types.
Optimization of generated code. This optimization can remove algorithmic code and affect the results of some simulation modes such as SIL or external mode. See Optimize using the specified minimum and maximum values (Embedded Coder).
Dependencies
To display and enable this parameter for a Trigger
port block at the root-level of a model, set Trigger
type to rising
,
falling
, or
either
.
Programmatic Use
Block Parameter:
OutMax |
Type: character vector |
Values:
'[]' | real scalar in quotes |
Default:
'[]' |
Data type — Select output data type for the trigger signal
Inherit: auto
(default) | double
| single
| int8
| uint8
| int16
| uint16
| int32
| uint32
| int64
| uint64
| boolean
| fixdt(1,16)
| fixdt(1,16,0)
| fixdt(1,16,2^,0)
| <data type expression>
Select data type for the trigger signal attached externally to a Model block and passed to the inside of the block.
Inherit: auto
— Inherited data typedouble
— Double-precision floating pointsingle
— Single-precision floating pointint8
— Signed 8-bit integeruint8
— Unsigned 8-bit integerint16
— Signed 16-bit integeruint16
— Unsigned 16-bit integerint32
— Signed 32-bit integeruint32
— Unsigned 32-bit integerint64
— Signed 64-bit integeruint64
— Unsigned 64-bit integerboolean
— Boolean with a value oftrue
orfalse
fixdt(1,16)
— Signed 16-bit fixed point number with binary point undefinedfixdt(1,16,0)
— Signed 16-bit fixed point number with binary point set to zerofixdt(1,16,2^,0)
— Signed 16-bit fixed point number with slope set to2^0
and bias set to0
<data type expression>
— Data type object, for example aSimulink.NumericType
object
You cannot enter the name of a Simulink.Bus
object as
a data type expression.
Dependencies
To display and enable this parameter for a Trigger
port block at the root-level of a model, set Trigger
type to rising
,
falling
, or
either
.
Programmatic Use
Block Parameter:
OutDataTypeStr |
Type: character vector |
Values: 'Inherit:
auto' | 'double' |
'single' | 'int8' |
'uint8' | 'int16' |
'uint16' | 'int32' |
'uint32' | 'int64' |
'uint64' | 'boolean' |
'fixdt(1,16)' |
'fixdt(1,16,0)' |
'fixdt(1,16,2^0,0)' | '<data
type expression>' |
Default: 'Inherit:
auto' |
Mode — Select data type category
Built in
(default) | Fixed point
| Expression
Select data type category and display drop-down lists to help you define the data type.
Built in
— Display menus for data type and Data type override.Fixed point
— Display menus for Signedness, Scaling, and Data type override.Expression
— Display text box for entering an expression.
Dependencies
To enable this parameter, select the Show data type assistant button .
Interpolate data — Control how missing workspace data is estimated
on
(default) | off
Control how missing workspace data is estimated when loading data from the MATLAB® workspace.
Select this parameter to linearly interpolate output at time steps for which no corresponding workspace data exists.
Clear this parameter to set the output at such time steps equal to the output at the most recent time step for which data exists.
Dependencies
To display and enable this parameter for a Trigger
port block at the root-level of a model, set Trigger
type to rising
,
falling
, or
either
.
Programmatic Use
Block Parameter:
Interpolate |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
For more information, see HDL Code Generation in Triggered Subsystem.
This block has one default HDL architecture.
You cannot generate HDL code for a Trigger Block that has Trigger
type set to function-call
or
message
.
PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.
Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
Version History
Introduced before R2006a
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
