# Compute Output Based on Size of Input Signal

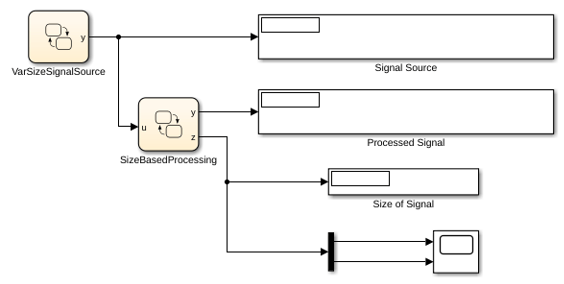

This example shows how to define variable-size output data in Stateflow® charts. In this model, the chart `VarSizeSignalSource`

generates a variable-size signal. The chart `SizeBasedProcessing`

analyzes this signal and produces a related variable-size signal. Display blocks show the values and size of the two signals.

For more information on variable-size data, see Declare Variable-Size Data in Stateflow Charts.

### Generate Variable-Size Output Data

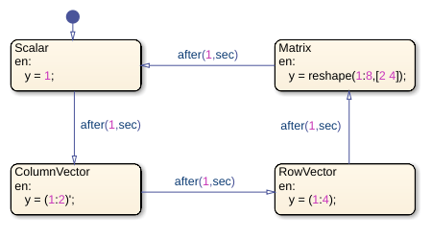

The Stateflow chart `VarSizeSignalSource`

uses MATLAB® as the action language. The temporal logic in this chart triggers the transitions between four states. Each state generates an output value with a different size: a scalar, a two-element column vector, a four-element row vector, and a 2-by-4 matrix.

The chart behaves like a source block. It has no input and one variable-size output, `y`

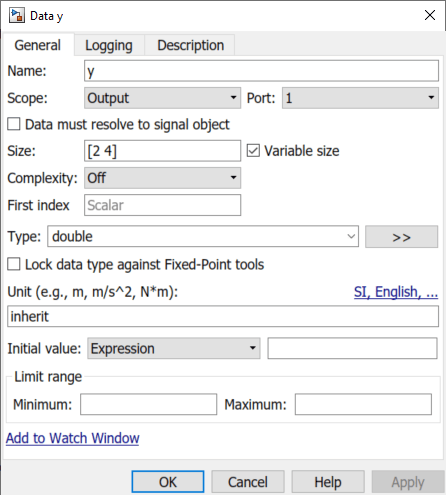

. For variable-size outputs, you must explicitly specify the upper bounds for each dimension. In this case, the **Variable size** property for `y`

is enabled and its **Size** property is set to `[2 4]`

, the maximum size for the signal.

In charts that use MATLAB as the action language, state and transition actions can read and write directly to variable-size data. For example, the entry actions of the states in this chart explicitly compute the value of `y`

.

### Process Variable-Size Input Data

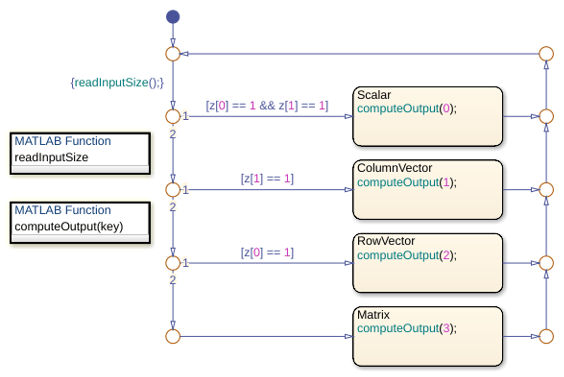

The Stateflow chart `SizeBasedProcessing`

uses C as the action language. These charts can exchange variable-size data with other charts and blocks in the model. However, state and transition actions in C charts cannot read from or write to variable-size data directly. All computations involving variable-size data must occur in MATLAB functions, Simulink® functions, and truth tables that use MATLAB as the action language.

This chart has two variable-size data objects:

Input

`u`

is the variable-size signal generated by the`VarSizeSignalSource`

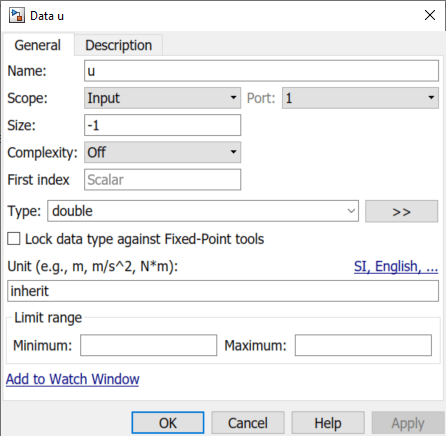

chart. Because the chart property**Support variable-size arrays**is enabled, this chart accepts variable-size input data from other blocks in the Simulink model. The**Size**property for`u`

is set to`-1`

to indicate that the chart inherits the maximum size for this input from the output in chart`VarSizeSignalSource`

.

Output

`y`

is a variable-size signal whose size and value depends on whether`u`

is a scalar, a vector, or a matrix. The**Size**property for`u`

is set to`[2 4]`

, the maximum size for the signal.

Because this chart uses C as the action language, the names of the variable-size data do not appear in the state actions or transition logic. Instead, the transition logic in the chart calls the MATLAB function `readInputSize`

to determine the size of the input `u`

. Similarly, the actions in the states call the MATLAB function `computeOutput`

to produce values of various size for the variable-size output `y`

. Because MATLAB functions can access chart-level data directly, you do not have to pass the variable-size data as inputs or outputs to these functions.

### Determine Size of Input

The MATLAB function `isScalarInput`

determines the size of the chart input `u`

. This signal, which is generated by chart `VarSizeSignalSource`

, can be a scalar, a 2-by-1 column vector, a 1-by-4 row vector, or a 2-by-4 matrix. The function stores the dimensions of `u`

as the chart-level output `z`

.

function readInputSize %#codegen z = size(u); end

### Produce Variable-Size Output

The MATLAB function `computeOutput`

computes the value of the chart output `y`

based on the size and value of the chart input `u`

.

If

`u`

is a scalar, the function assigns to`y`

a scalar value of zero.If

`u`

is a column vector, the function computes of the sine of each of its elements and stores them in`y`

.If

`u`

is a row vector, the function computes of the cosine of each of its elements and stores them in`y`

.If

`u`

is a matrix, the function computes of the square root of each of its elements and stores them in`y`

.

In each case, the value of the output `y`

has the same size as the input `u`

.

function computeOutput(key) %#codegen switch key case 0 % scalar y = 0; case 1 % column vector y = sin(u); case 2 % row vector y = cos(u); case 3 % matrix y = sqrt(u); end end

### Simulate the Model

The tabs located above the Explorer Bar enable you to switch between the Simulink model and the two Stateflow charts. During simulation:

The chart animations show the active state for each chart cycling between the

`Scalar`

,`ColumnVector`

,`RowVector`

, and`VectorPartial`

, and`Matrix`

states.In the Simulink model, the display blocks

`Signal Source`

and`Processed Signal`

periodically show between one and eight values for the variable-size signals.The display block

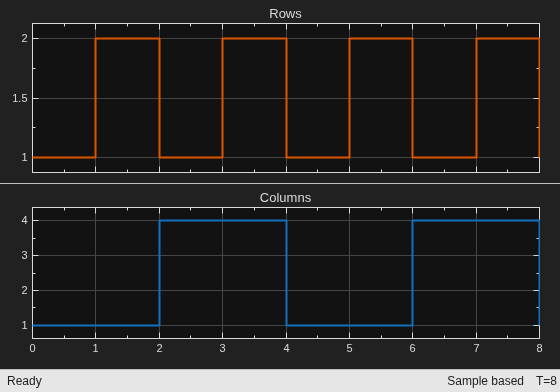

`Size of Signal`

and the Scope block show the number of rows and columns in the variable-size signals.
