Target Communication
R2026bCommunicate with targets using Byte Pack/Unpack, CAN Pack/Unpack, CAN
FD, Protocol Encoder/Decoder, and other blocks
Configure the blocks such as Byte Pack/Unpack, CAN Pack/Unpack, CAN FD, Protocol, and more to communicate with the targets.
Blocks
 | Byte Pack | Convert input signals to 8-, 16-, or 32-bit vector |
 | Byte Unpack | Unpack 8-, 16-, or 32-bit input vector to multiple output vectors |
 | CAN Pack | Pack individual signals into CAN message |
 | CAN Unpack | Unpack individual signals from CAN messages |
 | CAN FD Pack | Pack individual signals into message for CAN FD bus |
 | CAN FD Unpack | Unpack individual signals from CAN FD messages |
 | Interprocess Data Read | Receive messages from another processor using interprocess communication channel |
 | Interprocess Data Write | Send messages to another processor using interprocessor data write |
 | Protocol Encoder | Encode input data into a uint8 byte stream by specifying the packet structure |
 | Protocol Decoder | Decode a uint8 byte stream by specifying the packet structure |
Model Settings
Featured Examples

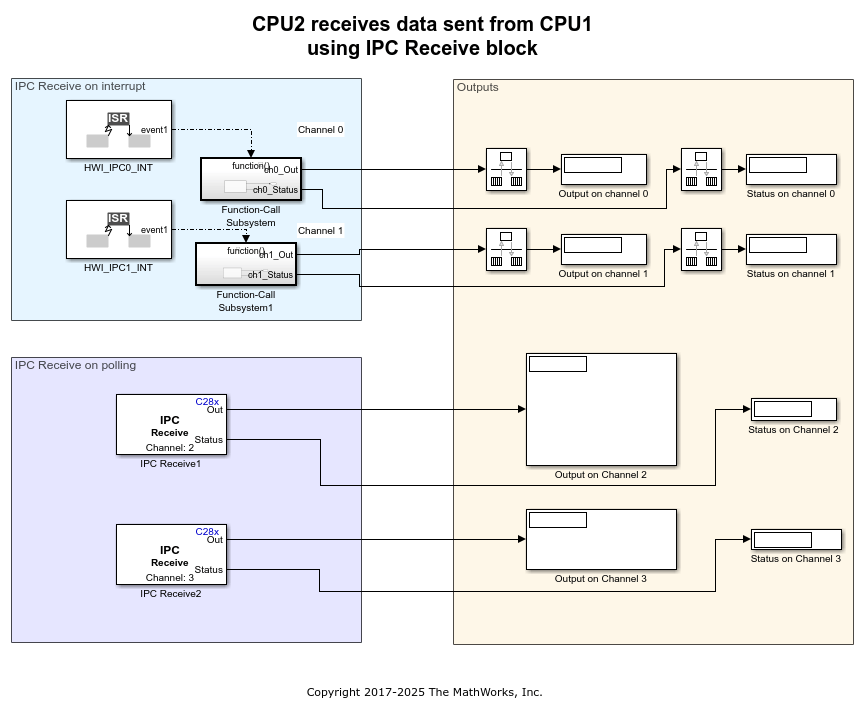

Inter-Processor Communication Using IPC Blocks
Use the IPC blocks to communicate between multiple cores of multi-core of Texas Instruments™ C2000™ Microcontroller Blockset using Simulink® models.

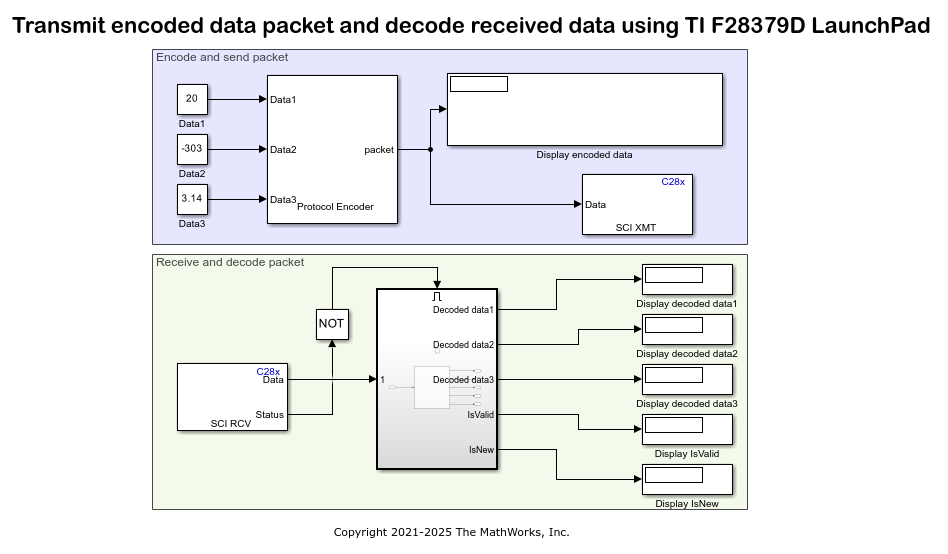

Encode and Decode Serial Data Using C2000-based Hardware
Use C2000™ Microcontroller Blockset to encode and decode serial data with TI's™ C2000-based hardware.

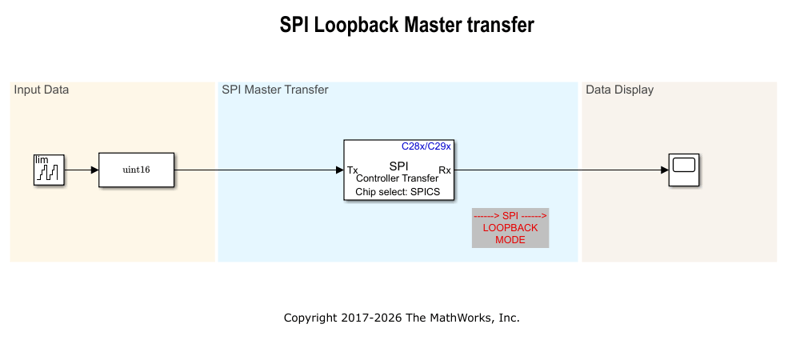

Using SPI to Read and Write Data to SPI EEPROM
Configure and use SPI blocks to read and write data.
