updateSensors

Update sensor readings in UAV scenario

    Description

    updateSensors(scene) updates all sensor readings based on latest states of all platforms in the UAV scenario, scene.

    Examples

    collapse all

    Create a UAV scenario and set its local origin.

    scene = uavScenario("UpdateRate",200,"StopTime",2,"ReferenceLocation",[46, 42, 0]);

    Add an inertial frame called MAP to the scneario.

    scene.addInertialFrame("ENU","MAP",trvec2tform([1 0 0]));

    Add one ground mesh and two cylindrical obstacle meshes to the scenario.

    scene.addMesh("Polygon", {[-100 0; 100 0; 100 100; -100 100],[-5 0]},[0.3 0.3 0.3]);
    scene.addMesh("Cylinder", {[20 10 10],[0 30]}, [0 1 0]);
    scene.addMesh("Cylinder", {[46 42 5],[0 20]}, [0 1 0], "UseLatLon", true);

    Create a UAV platform with a specified waypoint trajectory in the scenario. Define the mesh for the UAV platform.

    traj = waypointTrajectory("Waypoints", [0 -20 -5; 20 -20 -5; 20 0 -5],"TimeOfArrival",[0 1 2]);
    uavPlat = uavPlatform("UAV",scene,"Trajectory",traj);
    updateMesh(uavPlat,"quadrotor", {4}, [1 0 0],eul2tform([0 0 pi]));
    addGeoFence(uavPlat,"Polygon", {[-50 0; 50 0; 50 50; -50 50],[0 100]},true,"ReferenceFrame","ENU");

    Attach an INS sensor to the front of the UAV platform.

    insModel = insSensor();
    ins = uavSensor("INS",uavPlat,insModel,"MountingLocation",[4 0 0]);

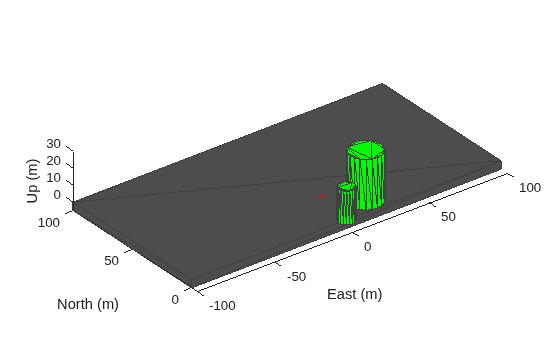

    Visualize the scenario in 3-D.

    ax = show3D(scene);
    axis(ax,"equal");

    Simulate the scenario.

    setup(scene);
    while advance(scene)
        % Update sensor readings
        updateSensors(scene);

        % Visualize the scenario
        show3D(scene,"Parent",ax,"FastUpdate",true);
        drawnow limitrate
    end

    Input Arguments

    collapse all

    UAV scenario, specified as a uavScenario object.

    Introduced in R2020b
