UAV Obstacle Avoidance in Simulink

This model implements waypoint following along with obstacle avoidance on a UAV in a simulated scenario. The model takes a set of waypoints and uses the 3D VFH+ algorithm to provide an obstacle-free path.

Create UAV Scenario with Custom Lidar Sensor and Obstacles

Create Scenario

Create a UAV scenario and set its local origin.

Scenario = uavScenario("UpdateRate",100,"ReferenceLocation",[0 0 0]);

Add a marker to indicate the start pose of the UAV.

addMesh(Scenario,"cylinder",{[0 0 1] [0 .01]},[0 1 0]);

Define UAV Platform

Specify the initial position and orientation of the UAV in the north-east-down (NED) frame.

InitialPosition = [0 0 -7];
InitialOrientation = [0 0 0];

Create a UAV platform in the scenario.

platUAV = uavPlatform("UAV",Scenario, ...
                      "ReferenceFrame","NED", ...
                      "InitialPosition",InitialPosition, ...
                      "InitialOrientation",eul2quat(InitialOrientation));

Add a quadrotor mesh for visualization.

updateMesh(platUAV,"quadrotor",{1.2},[0 0 1],eul2tform([0 0 pi]));

Create and Mount Sensor Model

Specify the lidar resolution.

AzimuthResolution = 0.5;
ElevationResolution = 2;

Specify the lidar range.

MaxRange = 7;
AzimuthLimits = [-179 179];
ElevationLimits = [-15 15];

Create a statistical sensor model to generate point clouds for the lidar sensor.

LidarModel = uavLidarPointCloudGenerator("UpdateRate",10, ...
                                         "MaxRange",MaxRange, ...
                                         "RangeAccuracy",3, ...
                                         "AzimuthResolution",AzimuthResolution, ...
                                         "ElevationResolution",ElevationResolution, ...
                                         "AzimuthLimits",AzimuthLimits, ...
                                         "ElevationLimits",ElevationLimits, ...
                                         "HasOrganizedOutput",true);

Create a lidar sensor and mount the sensor on the quadrotor.

uavSensor("Lidar",platUAV,LidarModel, ...
          "MountingLocation",[0 0 -0.4], ...
          "MountingAngles",[0 0 180]);

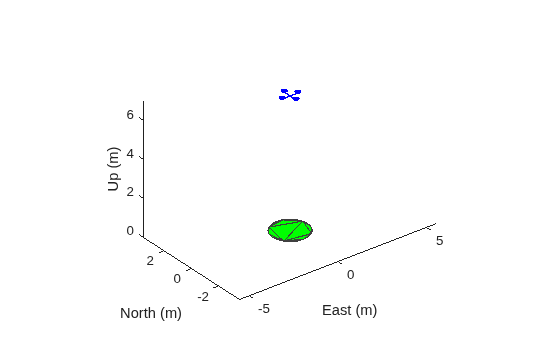

Preview the scenario using the show3D function.

show3D(Scenario);

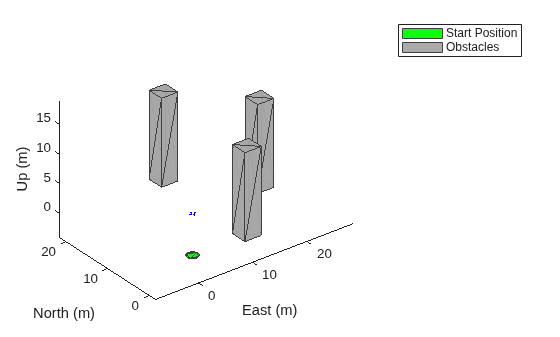

Add Obstacles to Scenario

Add cuboid obstacles, representing buildings, to the scenario.

ObstaclePositions = [10 0; 20 10; 10 20]; % Locations of the obstacles
ObstacleHeight = 15;                      % Height of the obstacles
ObstaclesWidth = 3;                       % Width of the obstacles

for i = 1:size(ObstaclePositions,1)
    addMesh(Scenario,"polygon", ...
        {[ObstaclePositions(i,1)-ObstaclesWidth/2 ObstaclePositions(i,2)-ObstaclesWidth/2; ...
        ObstaclePositions(i,1)+ObstaclesWidth/2 ObstaclePositions(i,2)-ObstaclesWidth/2; ...
        ObstaclePositions(i,1)+ObstaclesWidth/2 ObstaclePositions(i,2)+ObstaclesWidth/2; ...
        ObstaclePositions(i,1)-ObstaclesWidth/2 ObstaclePositions(i,2)+ObstaclesWidth/2], ...
        [0 ObstacleHeight]},0.651*ones(1,3));
end
show3D(Scenario);
legend("Start Position","Obstacles")

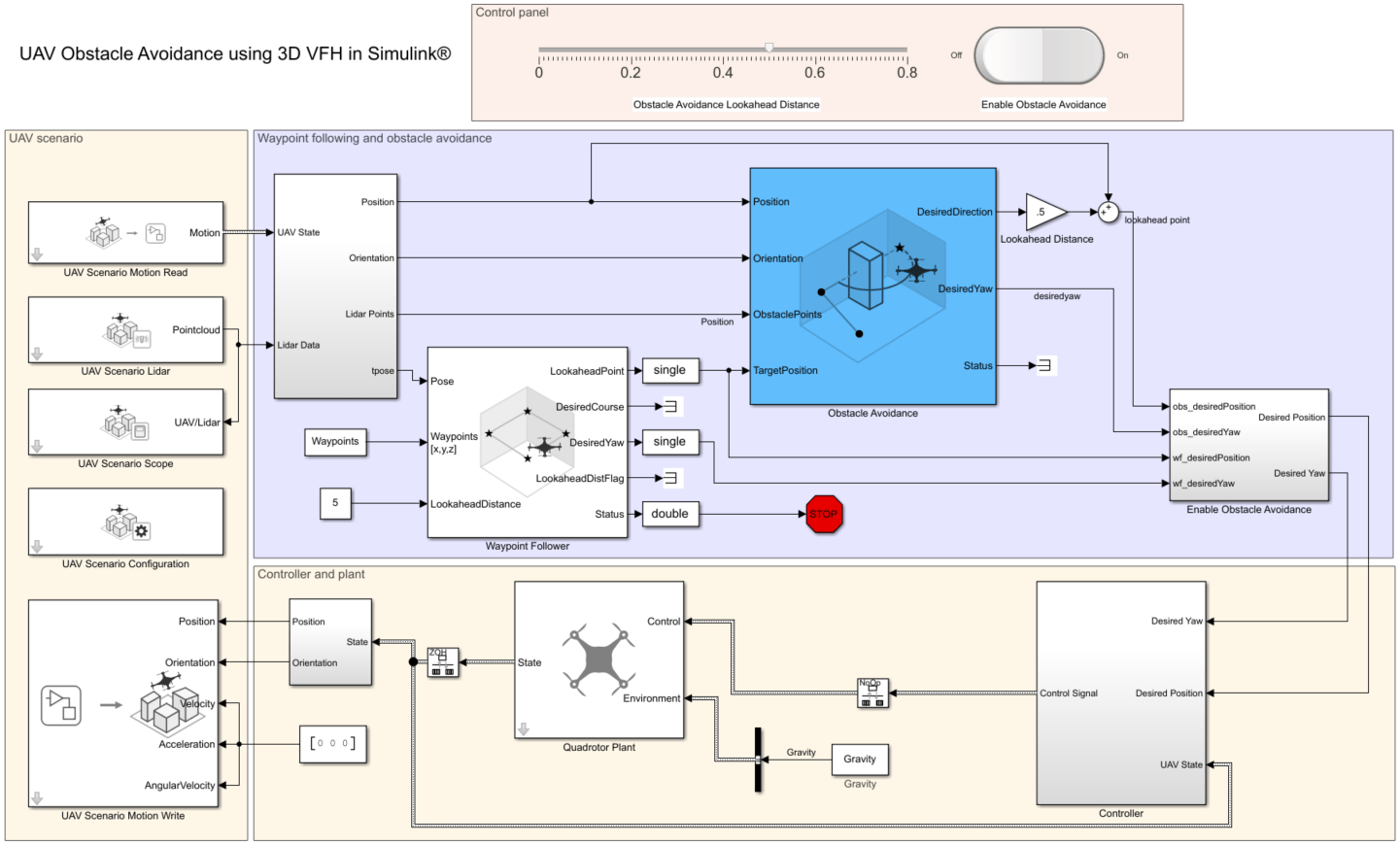

Model Overview

The model consists of these main components:

• UAV scenario — Configures the scenario and visualizes the trajectory.

• Waypoint following and obstacle avoidance — Implements waypoint following with obstacle avoidance.

• Controller and plant — Position controller for the UAV.

• Control Panel — Use this panel to enable or disable obstacle avoidance, as well as alter the lookahead distance for obstacle avoidance.

Open the model.

open_system("ObstacleAvoidanceDemo.slx");

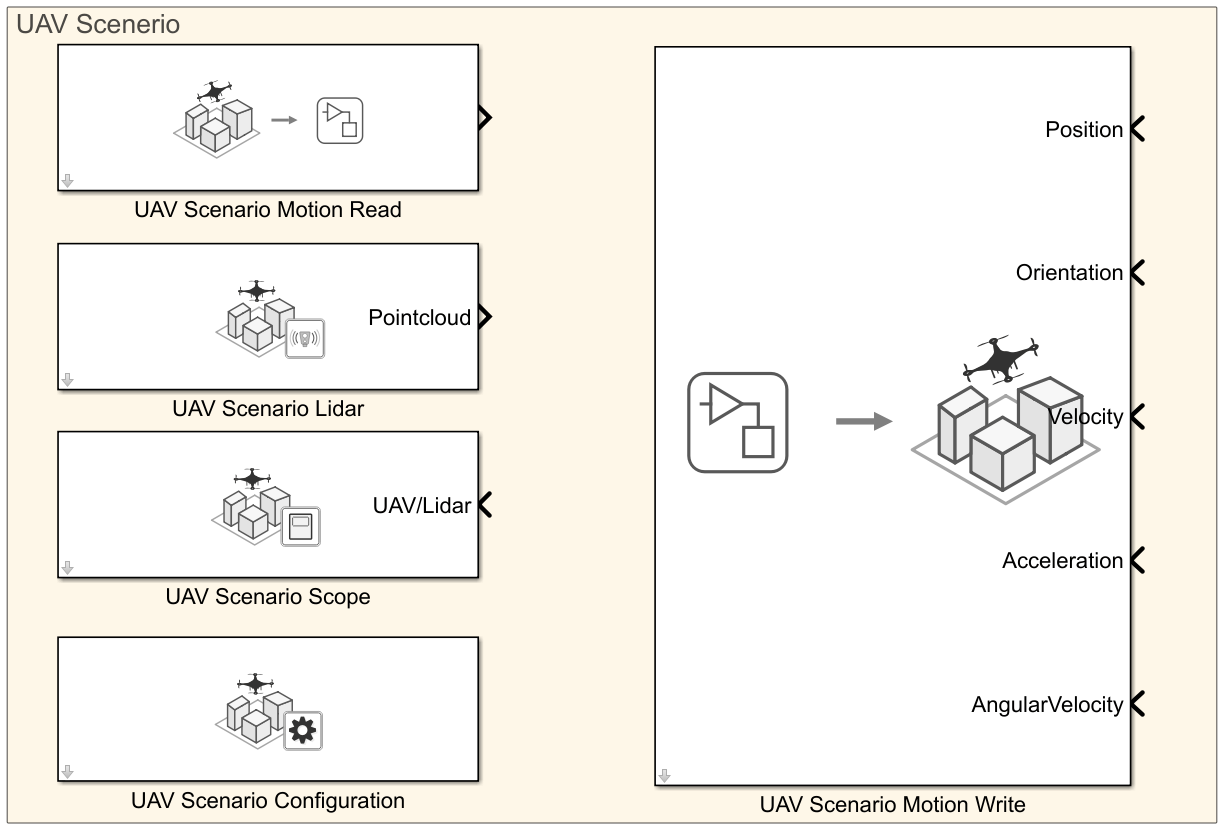

UAV Scenario

The scenario blocks configure the scenario and visualize the obstacles, trajectory, and the lidar point cloud data.

This subsystem contains these blocks:

• UAV Scenario Configuration — Configures the scenario blocks to use the generated scenario for simulation.

• UAV Scenario Motion Read — Reads the current UAV state from the scenario.

• UAV Scenario Lidar — Reads the point cloud data from the scenario.

• UAV Scenario Motion Write — Updates the new UAV state.

• UAV Scenario Scope — Visualizes the UAV trajectory and lidar point cloud data.

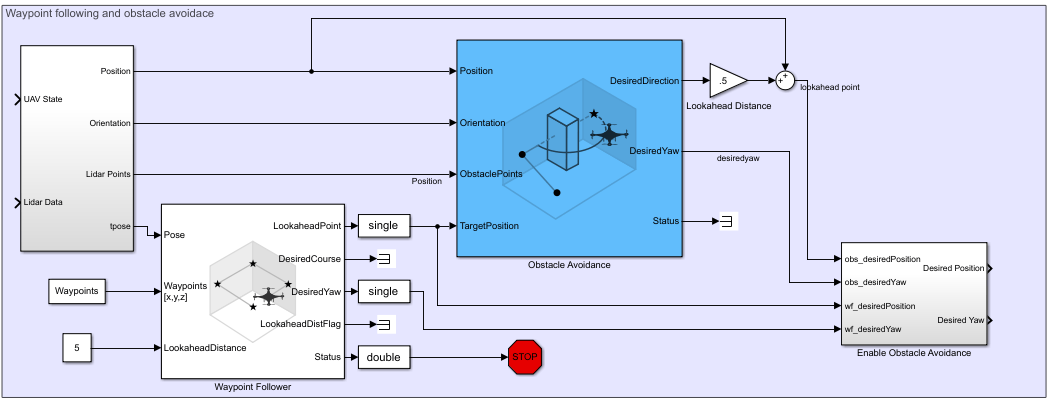

Waypoint Following and Obstacle Avoidance

The Waypoint following and obstacle avoidance subsystem finds the obstacle-free desired position and the desired yaw according to the current UAV state and point cloud data.

This subsystem includes these blocks and subsystems:

• Waypoint Follower — Computes a lookahead point for the UAV in the direction of the next waypoint.

• Obstacle Avoidance — Uses the 3D VFH+ algorithm to calculate the obstacle-free direction and yaw for a collision-free flight, and updates the lookahead point computed by the Waypoint Follower block.

• Conversion — This subsystem controls the frequency at which obstacle avoidance is used during the flight, and other data type and transform conversions.

• Lookahead Distance — Constant block, the value of which is multiplied by the unit vector in the desired direction, and then added to the current UAV position to compute the desired position.

• Enable Obstacle Avoidance — This subsystem enables or disables obstacle avoidance.

• Waypoints — The set of waypoints through which the UAV is expected to fly.

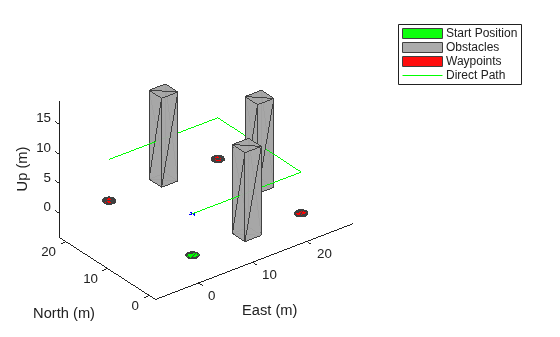

Specify the waypoints for the UAV.

Waypoints = [InitialPosition; 0 20 -7; 20 20 -7; 20 0 -7];

Add markers to indicate the waypoints.

for i = 2:size(Waypoints,1)
    addMesh(Scenario,"cylinder",{[Waypoints(i,2) Waypoints(i,1) 1] [0 0.1]},[1 0 0]);
end
show3D(Scenario);
hold on
plot3([InitialPosition(1,2); Waypoints(:,2)],[InitialPosition(1,2); Waypoints(:,1)],[-InitialPosition(1,3); -Waypoints(:,3)],"-g")
legend(["Start Position","Obstacles","","","Waypoints","","","Direct Path"])

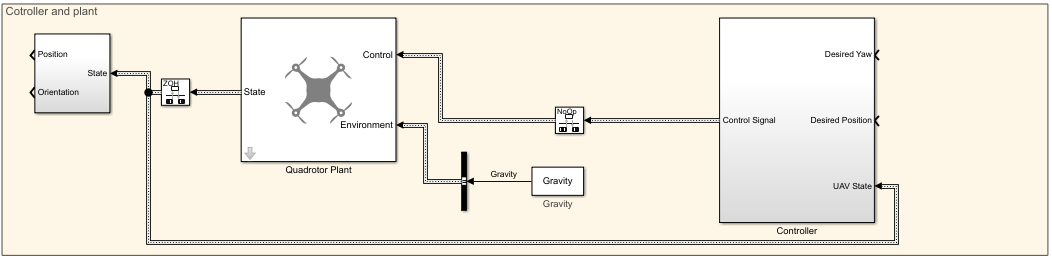

Controller and plant

The Controller and plant subsystem generates the control commands and updates the UAV state based on the lookahead point.

This subsystem includes these blocks:

• Controller — This subsystem computes the control commands (roll, pitch, yaw, and thrust) to move the UAV towards the desired position. It uses multiple PID loops to implement position control.

• Quadrotor Plant — This Guidance Model block updates the UAV state using the control commands.

• Conversion — This subsystem extracts the position and orientation from the UAV state, and performs data and coordinate transforms for visualization.

Specify the controller parameters. These parameters are based on a hit-and-trial approach, and can be tuned for a smoother flight.

% Proportional Gains
Px = 6;
Py = 6;
Pz = 6.5;

% Derivative Gains
Dx = 1.5;
Dy = 1.5;
Dz = 2.5;

% Integral Gains
Ix = 0;
Iy = 0;
Iz = 0;

% Filter Coefficients
Nx = 10;
Ny = 10;
Nz = 14.4947065605712;

Specify gravity, drone mass, and sample time for the controller and plant blocks.

UAVSampleTime = 0.001;
Gravity = 9.81;
DroneMass = 0.1;

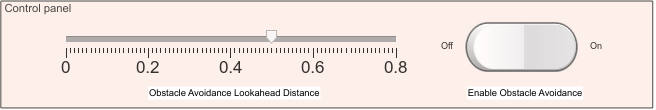

Control Panel

The switch enables or disables the updates to the lookahead point from the Obstacle Avoidance block.

The slider updates the lookahead distance used to compute the lookahead point.

• At greater lookahead distances, UAV flight is faster, but has greater risk of colliding with an obstacle.

• At lower values, the flight is slower, but has a lower risk of colliding with an obstacle.

Simulate Model

Configure and run the model, and observe the motion of the UAV.

• The UAV flies through the waypoints while avoiding obstacles, and then the simulation stops.

• Alter the lookahead distance to change the UAV speed.

• Change the parameters of the Obstacle Avoidance block and note the change in the flight path.

out = sim("ObstacleAvoidanceDemo.slx");

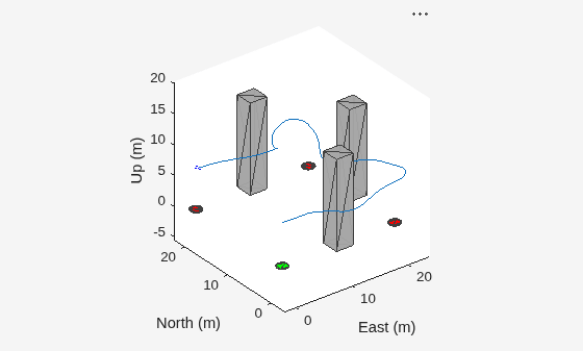

Visualize Obstacle-Free UAV trajectory

Plot the actual UAV trajectory and the waypoints to show the effect of obstacle avoidance on the UAV flight.

hold on
points = squeeze(out.trajectoryPoints(1,:,:))';
plot3(points(:,2),points(:,1),-points(:,3),"-r");
legend(["Start Position","Obstacles","","","Waypoints","","","Direct Path","UAV Trajectory"])
