Median based Image Thresholding
This example shows how to perfom image thresholding with the median value of the image as a global threshold.
Example Model
Open the simulink model.
open_system('ex_blk2dmedian.slx');

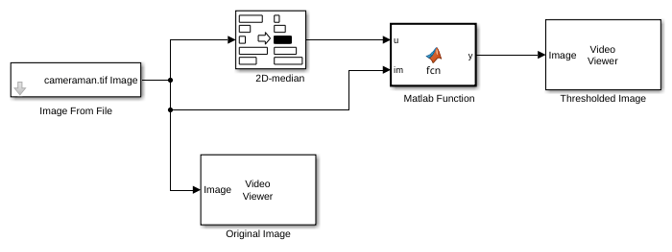

The model computes the median value of an input image by setting the Find the median value over
parameter to Entire
input
in 2-D
Median
block. The output of the 2-D
Median
block is a scalar. The Matlab
Function
block performs image thresholding by taking the output median as a global threshold. If the intensity value in the input image is greater than the median value, it is set to '1'. Otherwise, the intensity value is set to '0'. The output of the model is the thresholded image.
Simulate and Display Results

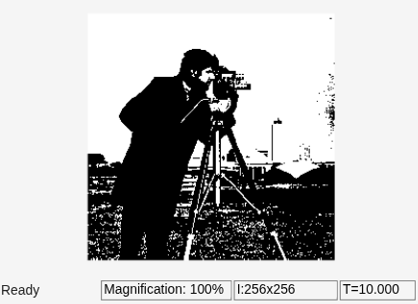

Run the model and display the results using Video
Viewer
block.
sim('ex_blk2dmedian.slx');
