Dot Conventions

Although mutual inductance M is always a positive quantity, the induced voltage due to mutual inductance may be negative or positive. The do
150 Downloads
Updated 3 Oct 2021

View License

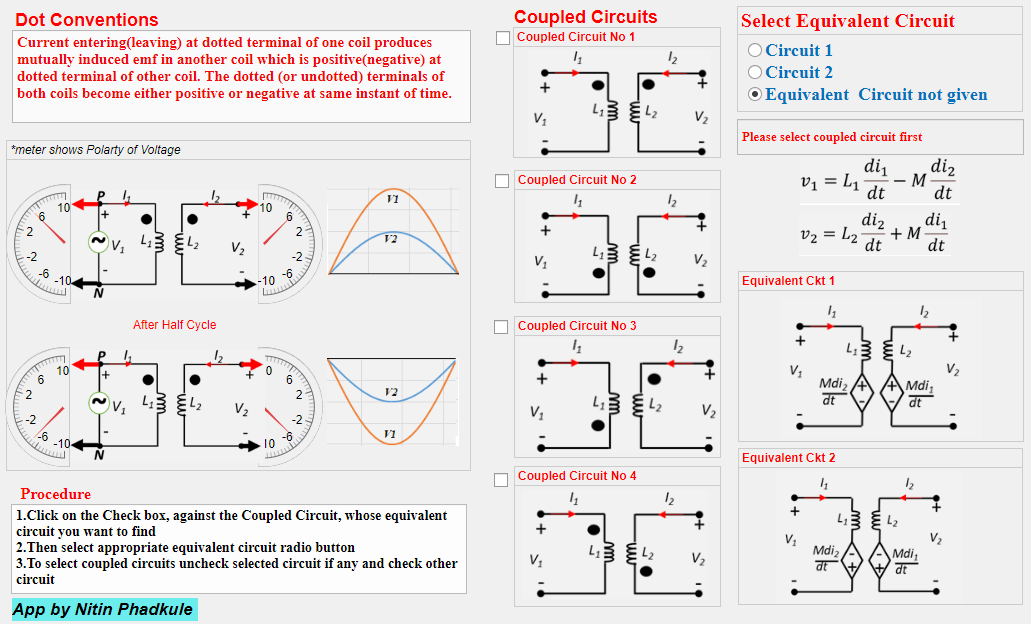

In coupled circuit there exists a mutual inductance between the coils. Although mutual inductance M is always a positive quantity, the induced voltage due to mutual inductance may be negative or positive. A dot convention is used to specify the direction of the windings around the core to determine the polarity of the mutual voltage.
