GRAPHICAL USER INTERFACE (Sine Wave Plotter With Equation)

MATLAB app that plots a basic sine wave and a transformed sine wave. The transformed sine wave should be altered . graphica
47 Downloads
Updated 1 Sep 2023

View License

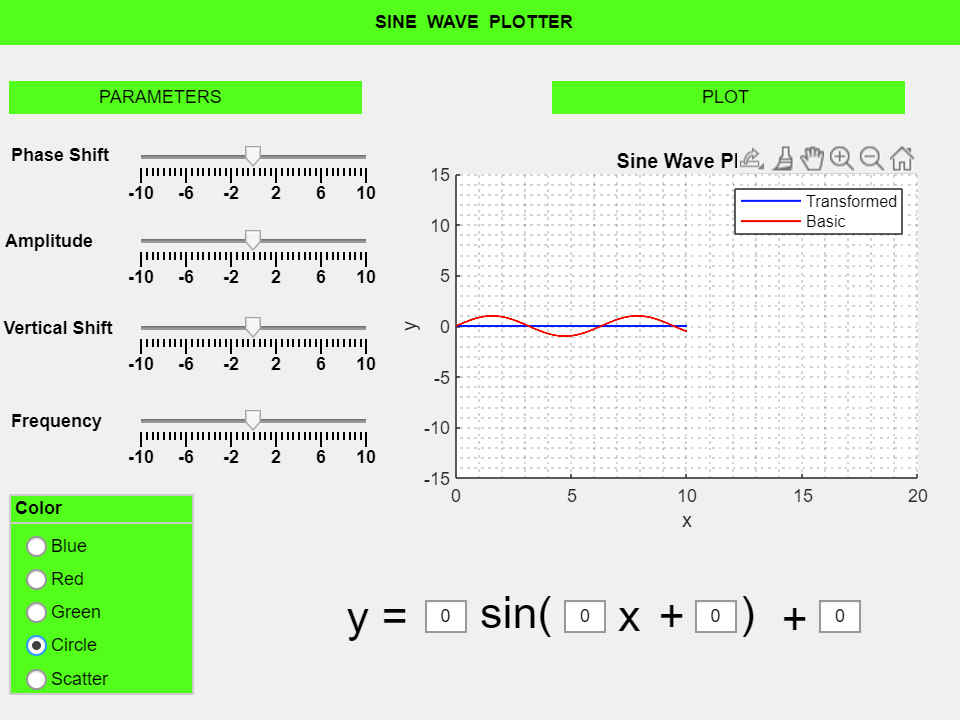

This code describes the development of an app using MATLAB app designer to illustrate how a sinewave transforms when the frequency, phase shift, vertical shift, and amplitude changes. The app contains four slider or spinner components representing the key values in a sine equation, and it calculates the sine function on an x axis that ranges from 0 to 10 with steps of 0.01. The app plots a basic y = sin(x) function and a modified function with the key parameters. The app interface is well organized, and the plot changes continuously as the sliders or spinners are changed.

Cite As

Tobi Joshua Samuel (2024). GRAPHICAL USER INTERFACE (Sine Wave Plotter With Equation) (https://www.mathworks.com/matlabcentral/fileexchange/134636-graphical-user-interface-sine-wave-plotter-with-equation), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2023b
Compatible with any release
Platform Compatibility
Windows macOS Linux
Acknowledgements

Inspired by: GUI Layout Toolbox
