Manage and Dock Figures into Group

SETFIGDOCKED docks figures at specified positions in group of figures
2.6K Downloads
Updated 23 Jul 2012

View License

group = setfigdocked('PropertyName1',value1,'PropertyName2',value2,...)
PropertyName:
- GroupName name of group need to be generated
- GridSize scalar or vector quantity, defines number of rows
and columns of cell in group
- SpanCell vector or matrix quantity, size n x 4,
[row col occupiedrows occupiedcols]
build an cell at the position (row, col) in group
cell (GridSize) which occupies "occupiedrows"
rows and "occupiedcols" columns
- Figure handle of figure
- Figindex index position of figure in group cell
- Maximize 0/1, maximize group
- GroupDocked 0/1, dock group

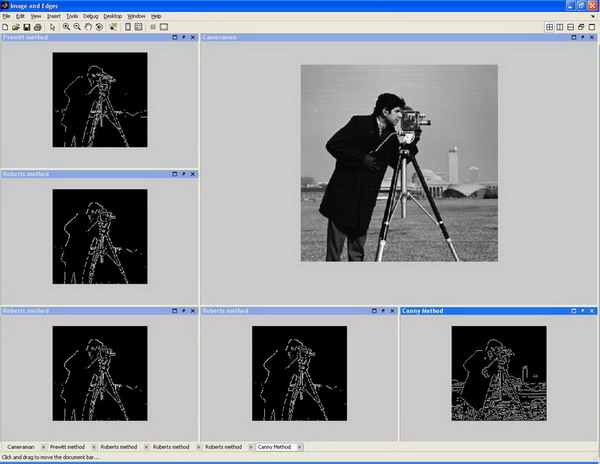

Example:
group = setfigdocked('GroupName','Image and Edges','GridSize',3,'SpanCell',[1 2 2 2]);
im1 = imread('cameraman.tif');
figure;imshow(im1);set(gcf,'Name','Cameraman','NumberTitle','off')
group = setfigdocked('GroupName','Image and Edges','Figure',gcf,'Figindex',2);

figure; edge(im1,'prewitt');set(gcf,'Name','Prewitt method','NumberTitle','off')
group = setfigdocked('GroupName','Image and Edges','Figure',gcf,'Figindex',1);

figure; edge(im1,'roberts');set(gcf,'Name','Roberts method','NumberTitle','off')
group = setfigdocked('GroupName','Image and Edges','Figure',gcf,'Figindex',3);

figure; edge(im1,'roberts');set(gcf,'Name','Roberts method','NumberTitle','off')
group = setfigdocked('GroupName','Image and Edges','Figure',gcf,'Figindex',4);

figure; edge(im1,'roberts');set(gcf,'Name','Roberts method','NumberTitle','off')
group = setfigdocked('GroupName','Image and Edges','Figure',gcf,'Figindex',5);

figure; edge(im1,'canny');set(gcf,'Name','Canny Method','NumberTitle','off')
group = setfigdocked('GroupName','Image and Edges','Figure',gcf,'Figindex',6);

group = setfigdocked('GroupName','Image and Edges','Maximize',1,'GroupDocked',0);

Cite As

Anh Huy Phan (2024). Manage and Dock Figures into Group (https://www.mathworks.com/matlabcentral/fileexchange/18106-manage-and-dock-figures-into-group), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R14SP3
Compatible with any release
Platform Compatibility
Windows macOS Linux
Categories
Find more on Graphics Objects in Help Center and MATLAB Answers

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!
Version Published Release Notes
1.5.0.0

fix error caused by empty jpanel

1.4.0.0

Fixed error on Matlab 2011, and allow multiple figures docking in the same cell.

1.3.0.0

Fix errors on Matlab v2009 and later releases

1.1.0.0

Fix errors which occur MATLAB v.2009 and later release

1.0.0.0
