Analog Computer using operational amplifiers

Version 1.0.0.0 (16.7 KB) by K. SUBRAMANIAN
Applications to set up Analog Computer using operational amplifiers
0.0
(0)
1.6K Downloads
Updated 27 May 2008

No License

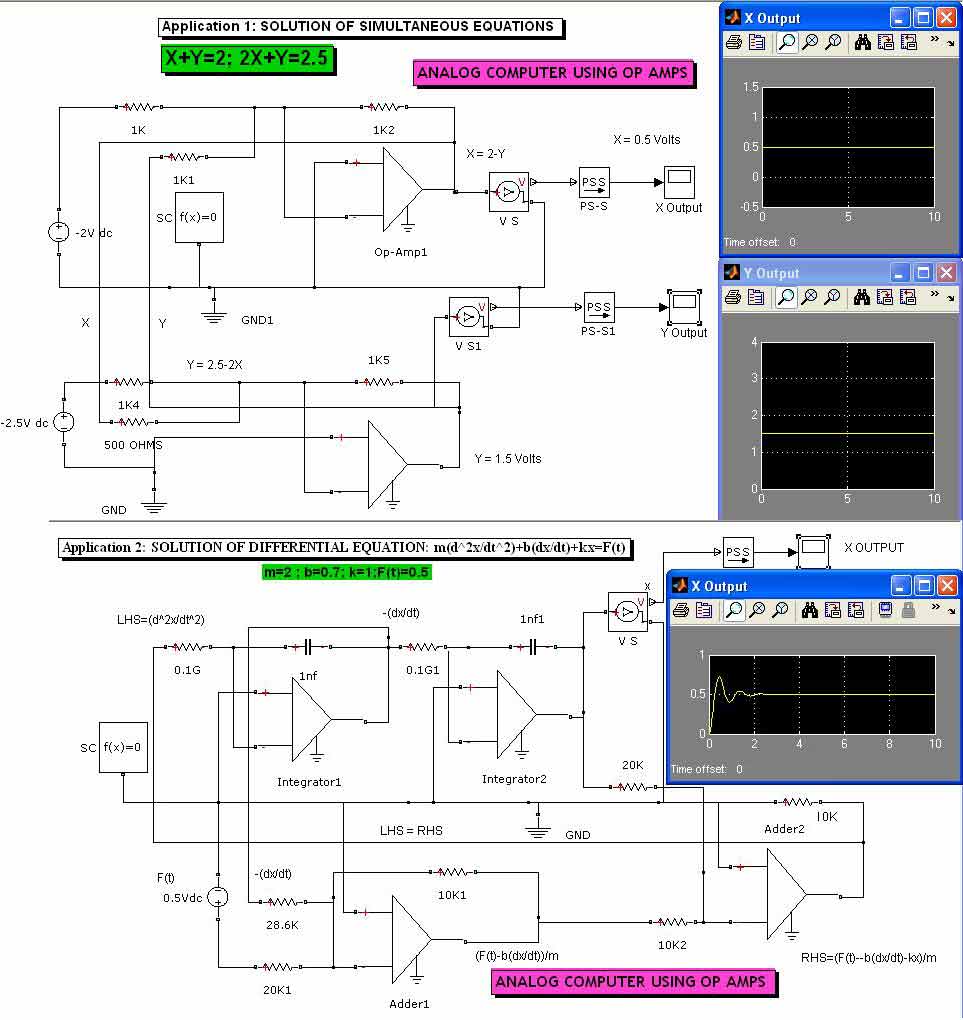

Two applications to set up Analog Computer using operational amplifiers have been shown here using Simscape 2.1 version. The applications solve

i) Simultaneous Equations X+Y=2; 2X+Y=2.5 and
ii) Differential Equation m(d^2x/dt^2)+b(dx/dt)+kx=F(t) with inputs m=2; b=0.7; k=1 and F(t)=0.5.

The results are being displayed in scopes.
